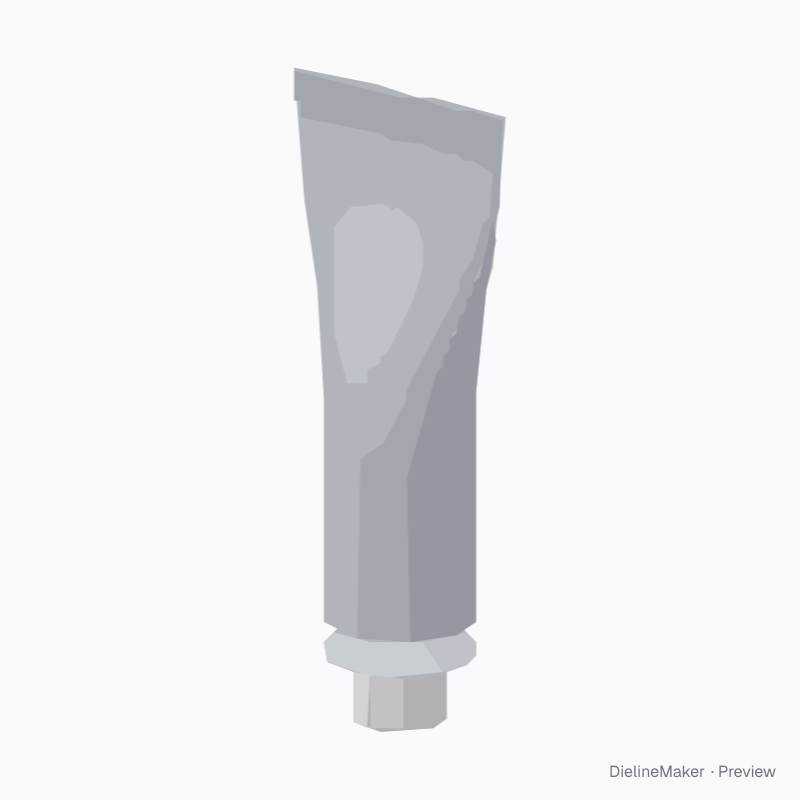

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ALTUBE-01Labels
Aluminium squeeze tube dieline
A collapsible aluminium tube with folded crimp, shoulder and screw or piercing cap. Print the metal directly or wrap a paper label; stand it on its cap or lay it flat like a paint tube. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 30 × 130 mm
OutsideØ 30 × 130 mm
Flat blank94.2 × 99.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ALTUBE-01
- Inside size
- Diameter 30 · Length with cap 130 mm
- Size range
- Diameter 10–60 · Length with cap 50–250 mm
- Manufacturing
- Ø 30 × 130 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.009 m² · about 63 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Decoration2 options
- Pose2 options
- Cap2 options
- Squeezed%
- Rolled-up tail%
- Metal4 options
- Cap colour4 options
