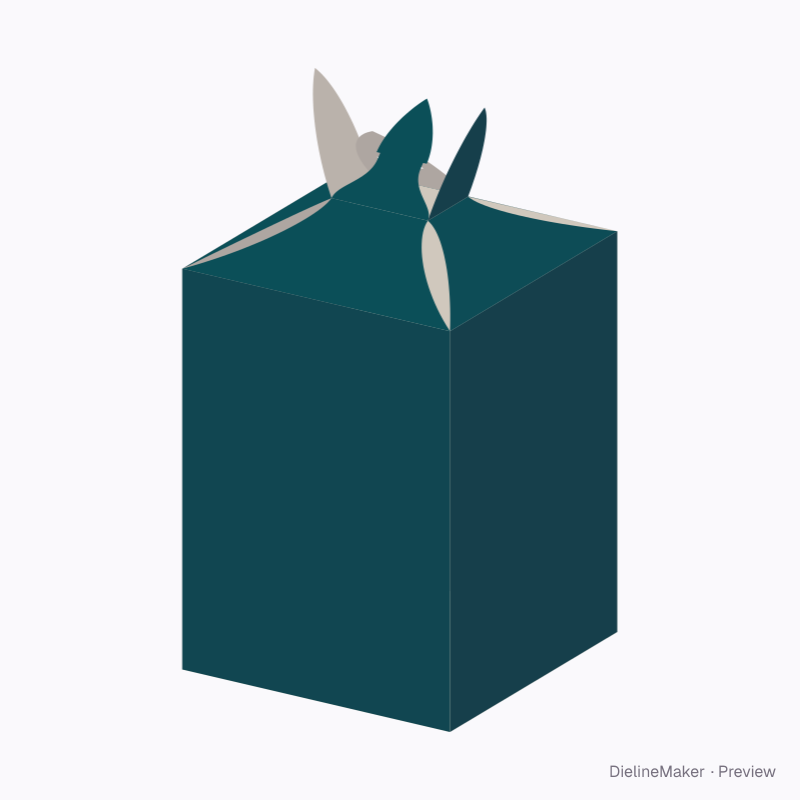

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-LEAF-TOP-01Tuck end
Leaf-top carton dieline
A square or rectangular carton cut from one blank, with four curved rising flaps, exposed pointed leaves, a leaf-shaped tab/slot lock, a glue seam and a glued base. Fold the side and back flaps, then flex the front leaf through the back leaf’s slot. This decorative closure is not sealed; prototype in the chosen stock before production. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 80 × 110 mm
Outside81 × 81 × 155.7 mm
Flat blank334 × 257.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-LEAF-TOP-01
- Inside size
- Width 80 · Depth 80 · Wall height 110 mm
- Size range
- Width 40–200 · Depth 40–200 · Wall height 40–250 mm
- Manufacturing
- 80.5 × 80.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.054 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The leaf-top carton erects in 8 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upRight wall, Back wall, Left wall
- 2Fold the glue flap and glue the seamGlue flap
- 3Fold the glue flap and glue the seamGlue flap and 2 more
- 4Fold the baseFull glued base
- 5Close the end flapsRight curved flap, Raised pointed leaf, Left curved flap and 1 more
- 6Close the end flapsBack curved flap, Pointed leaf with receiver slot
- 7Close the end flapsFront curved flap
- 8Lock the tabsPointed leaf lock — flex shoulders through slot
How the blank is sized
Score-to-score panel sizes of this DM-LEAF-TOP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front wall | 80.5 × 110.5 | – × H + T |
| Front curved flap | 80.5 × 33.8 | – |
| Right wall | 80.5 × 110.5 | – × H + T |
| Full glued base | 80.5 × 80.5 | – |
| Pointed leaf lock — flex shoulders through slot | 29 × 32.2 | – |
| Right curved flap | 80.5 × 29.6 | – |
| Back wall | 80.5 × 110.5 | – × H + T |
| Glue flap ×3 | 76.5 × 12 | – |
| Raised pointed leaf ×2 | 19.3 × 32.2 | – |
| Back curved flap | 80.5 × 33.8 | – |
| Left wall | 80.5 × 110.5 | – × H + T |
| Pointed leaf with receiver slot | 29 × 32.2 | – |
| Left curved flap | 80.5 × 29.6 | – |
| Glue flap | 12 × 106.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Leaf length%
Ready-sized leaf-top carton presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the leaf-top carton dieline fit my product?
A square or rectangular carton cut from one blank, with four curved rising flaps, exposed pointed leaves, a leaf-shaped tab/slot lock, a glue seam and a glued base. Fold the side and back flaps, then flex the front leaf through the back leaf’s slot. This decorative closure is not sealed; prototype in the chosen stock before production. The default dimensions in inside-size mode are Width 80 mm, Depth 80 mm, Wall height 110 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Width 40–200 mm, Depth 40–200 mm, Wall height 40–250 mm. At the default settings, the editor also exposes Leaf length. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is SBS white board 350 g (0.5 mm caliper). This structure allows SBS white board 350 g, Folding boxboard 400 g, Kraft board 350 g, SBS white board 300 g, SBS white board 18 pt. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this leaf-top carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
