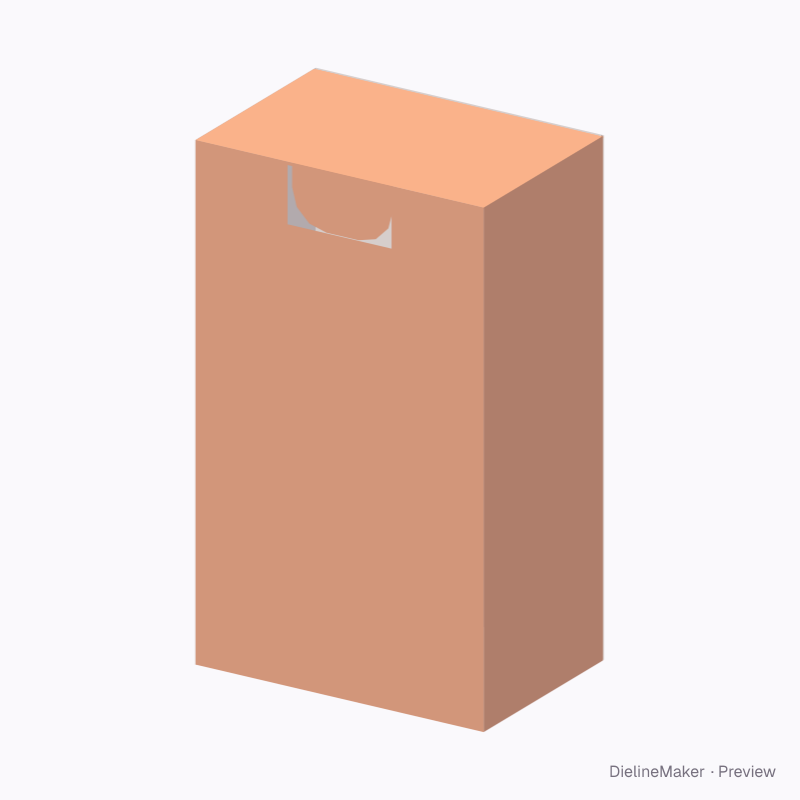

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CLOSURE-55-20-01-03-31Tuck end
Snap lock base / tuck top (reverse), double tuck dieline
Folding cartons with side-tuck, sieve-proof, scissor-lock, double-tuck or webbed ends on tuck, seal, snap or crash-lock bases. A ready-sized preset of the side-tuck, sieve-proof and double-tuck carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 150 mm
Outside91 × 61 × 151 mm
Flat blank313.5 × 270.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CLOSURE-55-20-01-03-31
- Inside size
- Length 90 · Width 60 · Body height 150 mm
- Size range
- Length 45–400 · Width 20–200 · Body height 30–500 mm
- Manufacturing
- 90.5 × 60.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.073 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

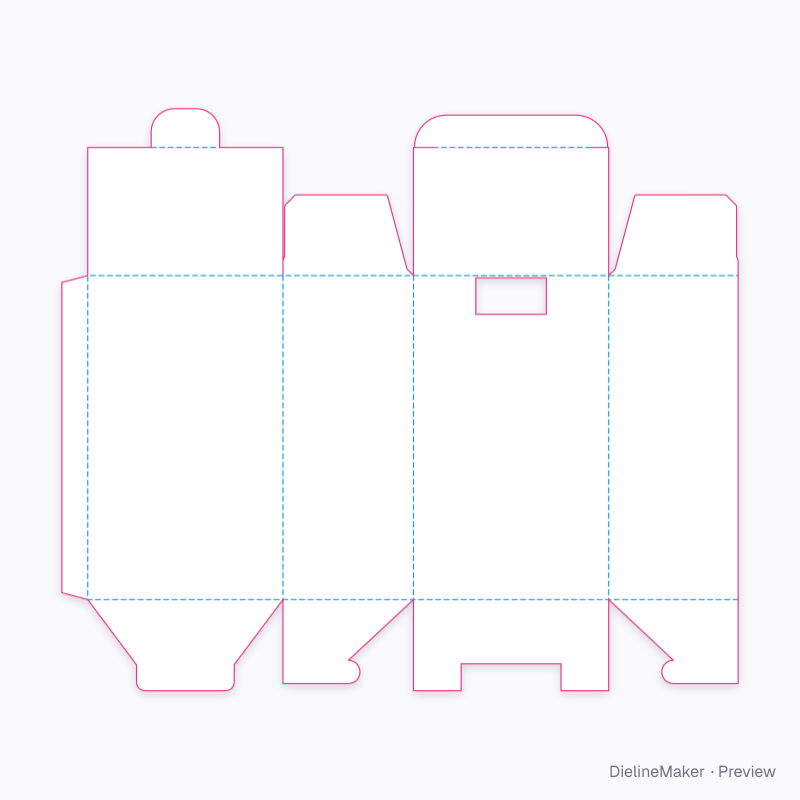

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CLOSURE-55-20-01-03-31 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 150.5 | L + T × H + T |
| Left side | 60.5 × 150.5 | W + T × H + T |
| Back | 90.5 × 150.5 | L + T × H + T |
| Right side | 60 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| P1 snap tongue | 90.5 × 42.3 | L + T × – |
| P3 notched receiver | 90.5 × 42.3 | L + T × – |
| Concave retaining hook | 60.5 × 39 | W + T × – |
| Concave retaining hook | 60 × 39 | W × – |
| Top closure | 90.5 × 59.5 | L + T × W − T |
| Top tuck | 89.5 × 15 | L − T × – |
| Top dust flap | 60.5 × 37.5 | W + T × – |
| Top dust flap | 60 × 37.5 | W × – |
| Double-tuck inner flap | 90.5 × 59.5 | L + T × W − T |
| Double-tuck tab | 31.7 × 18 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction59 options
- Glue flapmm
- Tuck depthmm
- Side tuck widthmm
The side-tuck, sieve-proof and double-tuck carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this snap lock base / tuck top (reverse), double tuck yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
