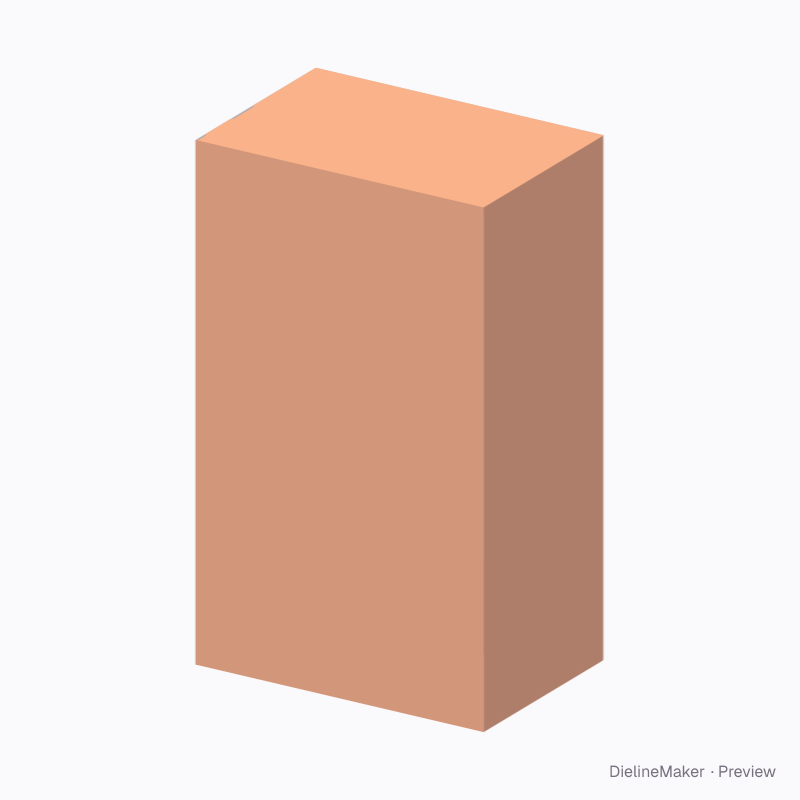

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CLOSURE-80-50-03-01Tuck end
Buffer base / claw lock top (reverse) dieline
Folding cartons with side-tuck, sieve-proof, scissor-lock, double-tuck or webbed ends on tuck, seal, snap or crash-lock bases. A ready-sized preset of the side-tuck, sieve-proof and double-tuck carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 60 × 150 mm
Outside91 × 61 × 151 mm
Flat blank313.5 × 341.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CLOSURE-80-50-03-01
- Inside size
- Length 90 · Width 60 · Body height 150 mm
- Size range
- Length 45–400 · Width 20–200 · Body height 30–500 mm
- Manufacturing
- 90.5 × 60.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.085 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

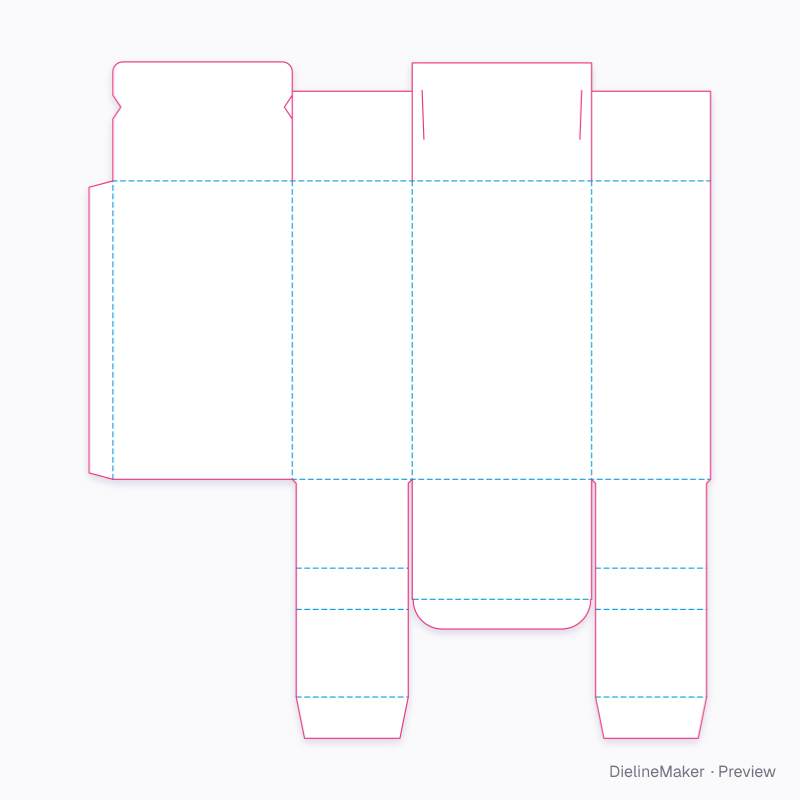

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CLOSURE-80-50-03-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90.5 × 150.5 | L + T × H + T |
| Left side | 60.5 × 150.5 | W + T × H + T |
| Back | 90.5 × 150.5 | L + T × H + T |
| Right side | 60 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| Bottom closure | 90.5 × 60.5 | L + T × W + T |
| Bottom tuck | 89.5 × 15 | L − T × – |
| Buffer segment 1 | 60.5 × 44.8 | W + T × – |
| Buffer segment 2 | 56.5 × 20.8 | – |
| Buffer segment 3 | 56.5 × 44.3 | – |
| Buffer segment 4 | 56.5 × 20.8 | – |
| Buffer segment 1 | 60 × 44.8 | W × – |
| Buffer segment 2 | 56 × 20.8 | – |
| Buffer segment 3 | 56 × 44.3 | – |
| Buffer segment 4 | 56 × 20.8 | – |
| Claw-lock flap | 90.5 × 60 | L + T × W |
3 more panels are listed in the editor’s structure step.
