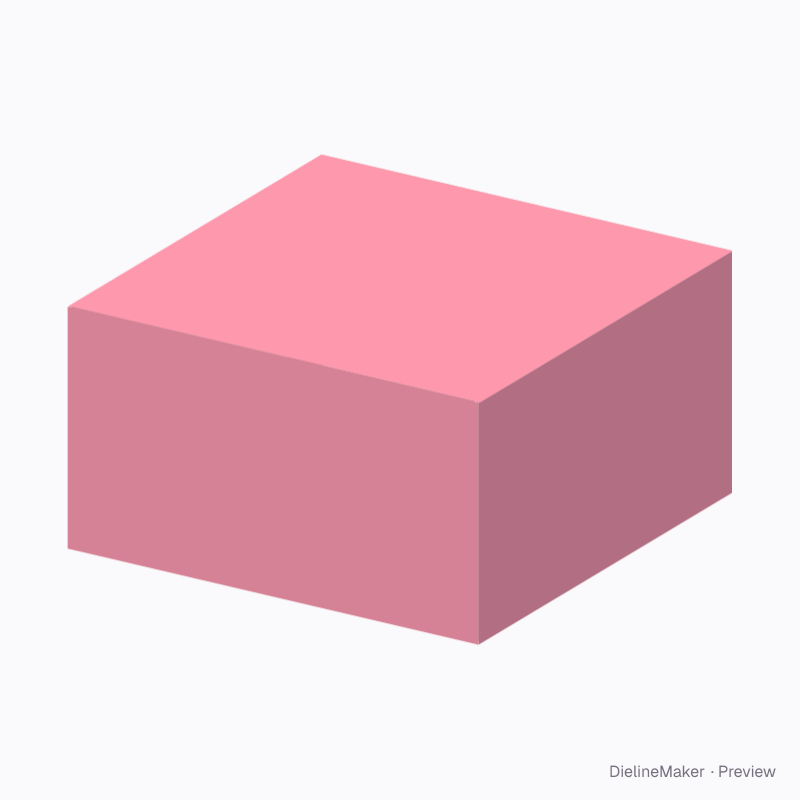

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-LID-HANDLE-CARTON-01Carriers
Cake box with lid loop handle dieline
A mailer, hinged-lid tray, tuck-end carton or cake box with a carry handle struck from the middle of its lid: a retained loop (or a facing pair) that lifts out of the lid board, or a plain hand hole. A ready-sized preset of the carton with lid-struck carry handle — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 220 × 120 mm
Outside223.7 × 220.9 × 120.9 mm
Flat blank562 × 730.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-LID-HANDLE-CARTON-01
- Inside size
- Length 220 · Width 220 · Height 120 mm
- Size range
- Length 80–600 · Width 60–500 · Height 30–400 mm
- Manufacturing
- 223.2 × 220.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.335 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- E-flute KE-flute WKraft 350SBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-LID-HANDLE-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 223.2 × 220.5 | L + 2·DC + T × W + T |
| Front | 223.2 × 120.2 | L + 2·DC + T × H + T/2 |
| Back | 223.2 × 120.5 | L + 2·DC + T × H + T |
| Left end | 120 × 220.5 | W + T × H |
| Left end roll | 1.4 × 219.5 | – |
| Left end lock flap | 48 × 219.5 | – |
| Right end | 120 × 220.5 | W + T × H |
| Right end roll | 1.4 × 219.5 | – |
| Right end lock flap | 48 × 219.5 | – |
| Corner web ×4 | 109.8 × 120 | – × H |
| Corner web ×4 | 155.2 × 84.9 | – |
| Lid | 223.2 × 219.8 | L + 2·DC + T × W − T/2 |
| Lid ear ×2 | 119.5 × 218.4 | H − T × – |
| Front tuck | 218.6 × 50 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Carton6 options
- Handle3 options
- Loop profile2 options
- Handle widthmm
- Loop band widthmm
The carton with lid-struck carry handle family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cake box with lid loop handle yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
