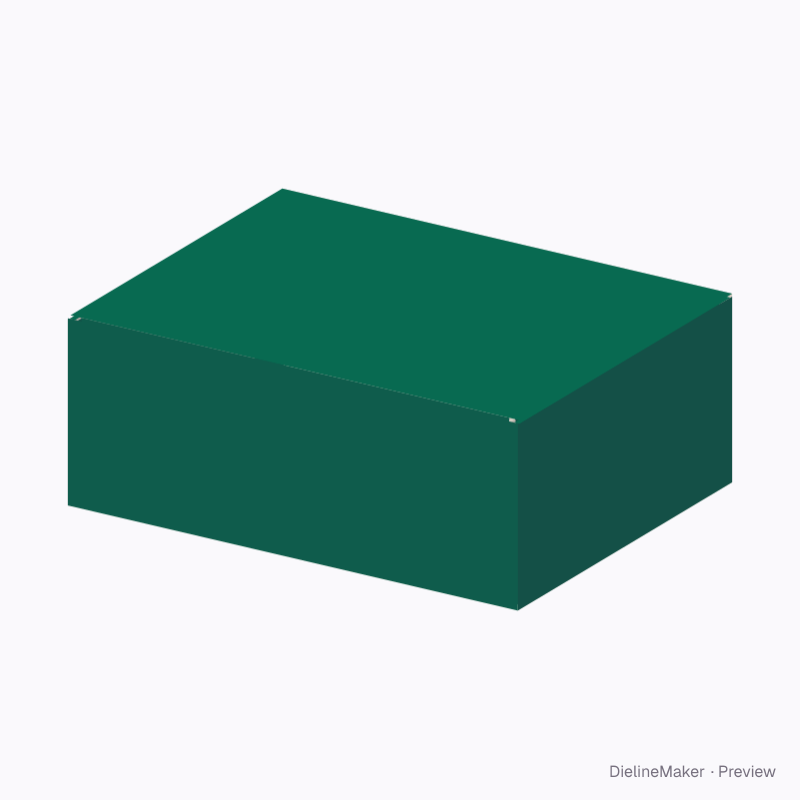

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-LID-HANDLE-CARTON-01Carriers
Mailer with paired lid handles dieline

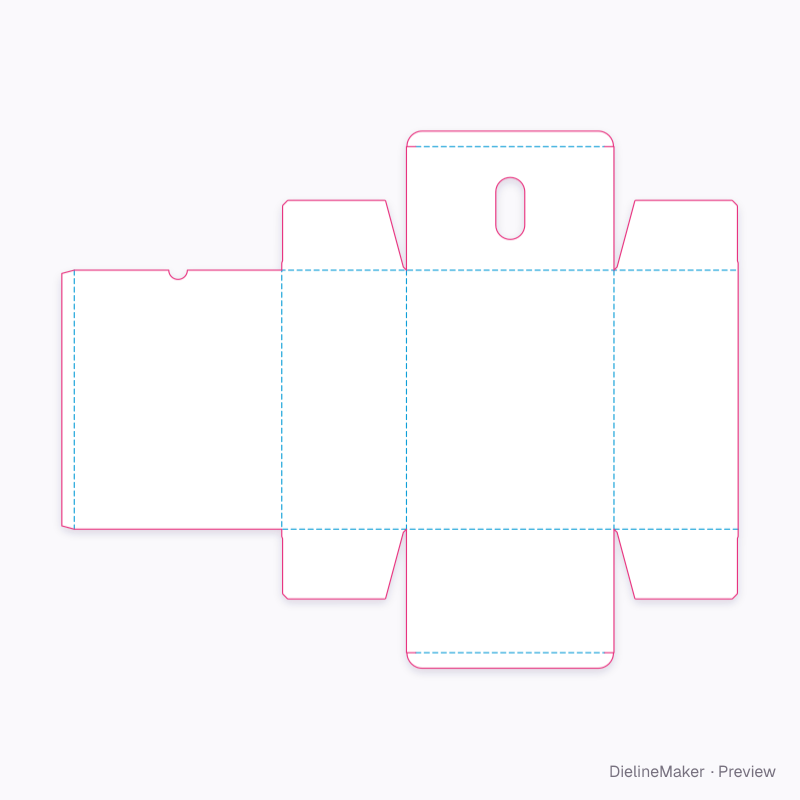

A mailer, hinged-lid tray, tuck-end carton or cake box with a carry handle struck from the middle of its lid: a retained loop (or a facing pair) that lifts out of the lid board, or a plain hand hole. A ready-sized preset of the carton with lid-struck carry handle — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 200 × 100 mm
Outside266 × 203.2 × 103.2 mm
Flat blank670.8 × 653.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-LID-HANDLE-CARTON-01
- Inside size
- Length 250 · Width 200 · Height 100 mm
- Size range
- Length 80–600 · Width 60–500 · Height 30–400 mm
- Manufacturing
- 264.4 × 201.6 × 101.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.314 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WKraft 350SBS 350FBB 400SBS 18 pt
- Good for

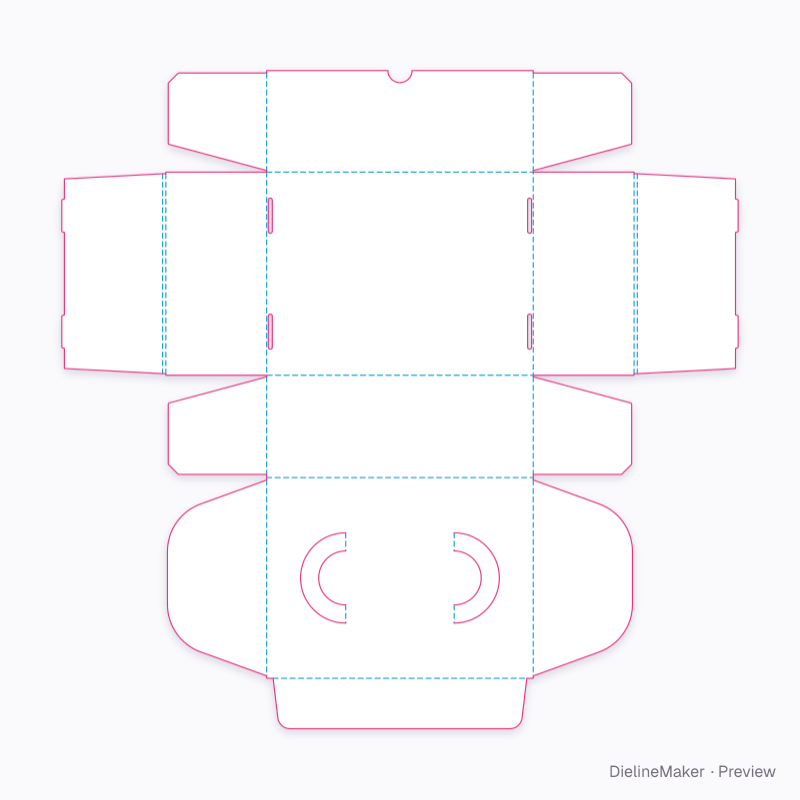

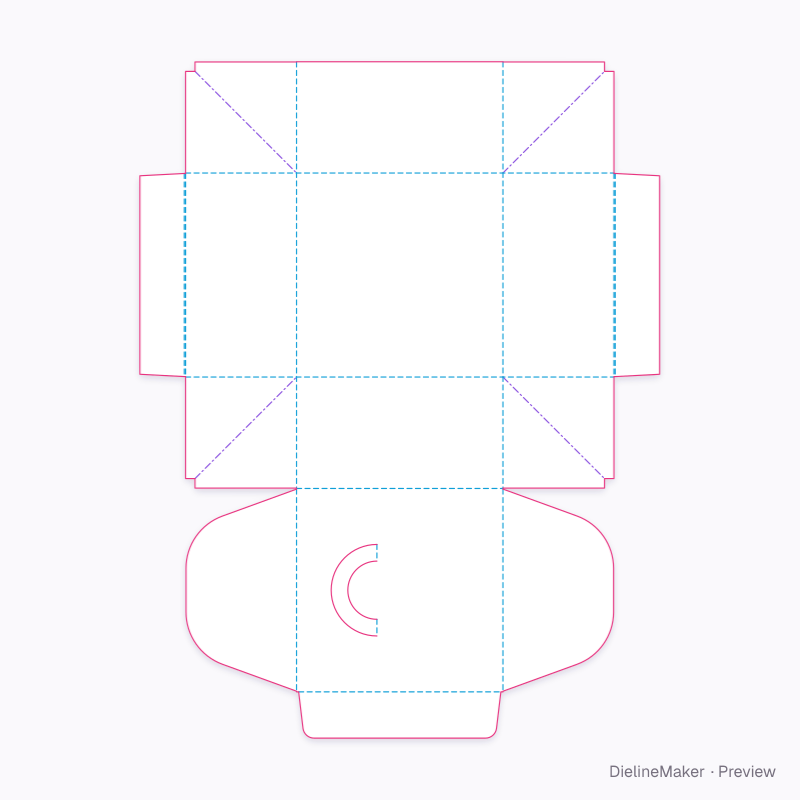

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-LID-HANDLE-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 264.4 × 201.6 | – × W + T |
| Front | 264.4 × 100.8 | – × H + T/2 |
| Back | 264.4 × 101.6 | – × H + T |
| Front ear ×2 | 97.6 × 96.8 | – × H − 2T |
| Back ear ×2 | 97.6 × 96.8 | – × H − 2T |
| Left end | 100 × 201.6 | H × W + T |
| Left end roll | 3.2 × 198.4 | – × W − T |
| Left end (inside) | 100 × 198.4 | H × W − T |
| Right end | 100 × 201.6 | H × W + T |
| Right end roll | 3.2 × 198.4 | – × W − T |
| Right end (inside) | 100 × 198.4 | H × W − T |
| Lid | 264.4 × 199.2 | – × W − T/2 |
| Lid ear ×2 | 98.4 × 194.4 | H − T × – |
| Front tuck | 251.6 × 50 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Carton6 options
- Handle3 options
- Loop profile2 options
- Handle widthmm
- Loop band widthmm
