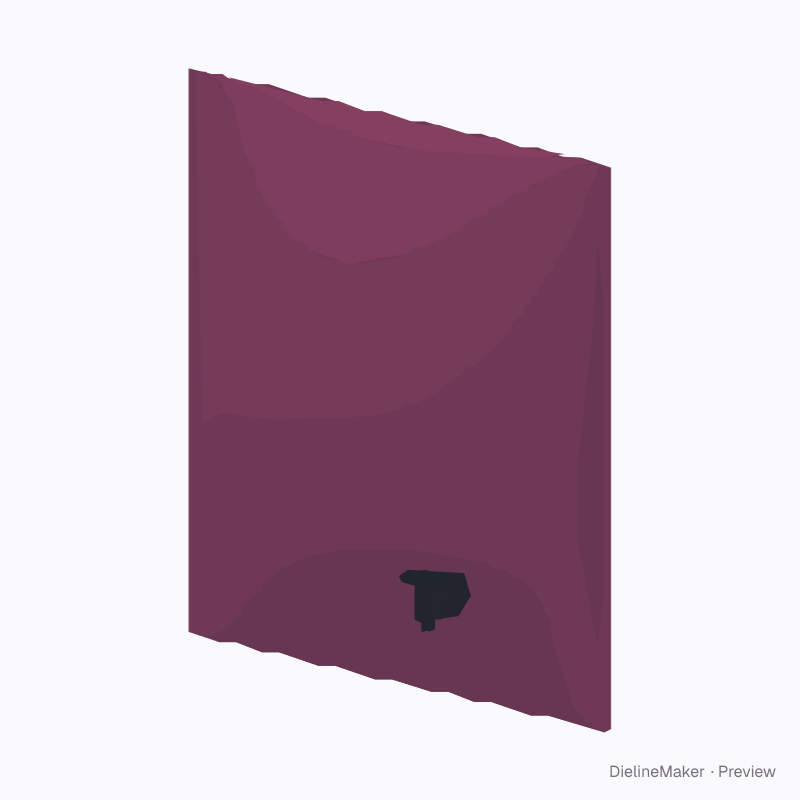

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Oversize liquid bag with dispensing tap dieline
440 × 150 × 540 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the liquid bag with dispensing tap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside440 × 150 × 540 mm
Outside440 × 150 × 540 mm
Flat blank440 × 540 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Flat web width 440 · Filled depth 150 · Web height 540 mm
- Size range
- Flat web width 120–500 · Filled depth 30–180 · Web height 160–600 mm
- Manufacturing
- 440 × 150 × 540 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front film web, Back film web
- Board area
- 0.475 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for Metallised PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| front film webFront film web | 440 × 530 | L × – |
| Top sealFront film web | 440 × 10 | L × – |
| back film webBack film web | 440 × 530 | L × – |
| Top sealBack film web | 440 × 10 | L × – |
