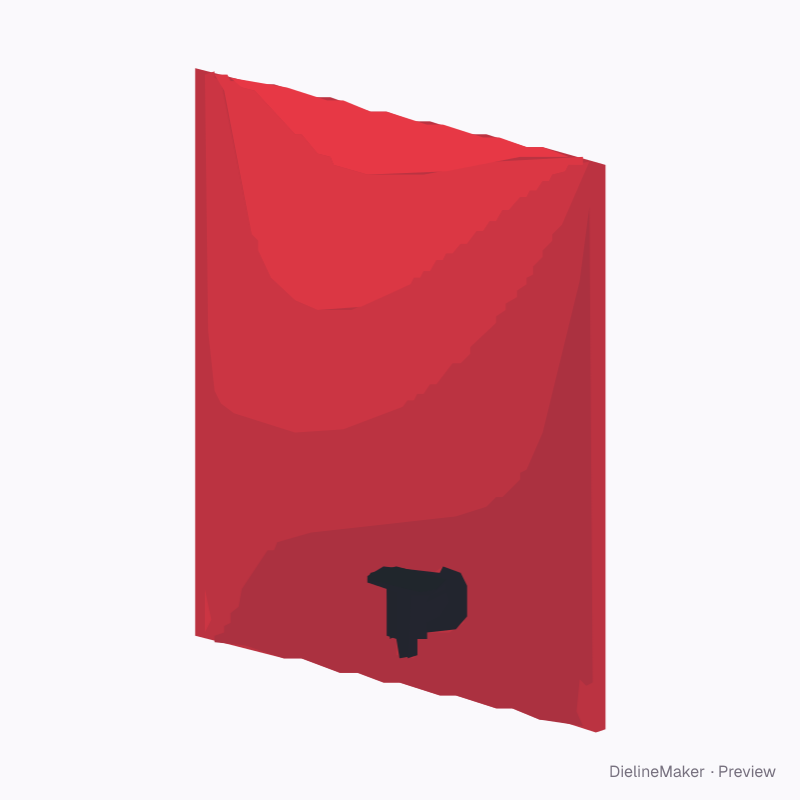

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Juice dispenser bag 5 L dieline
A filled, perimeter-sealed liquid bag with a welded flange, dispensing valve and downturned outlet. Exports contain two film webs and the front tap aperture; weld process, barrier structure and certified capacity require the supplier’s specification. A ready-sized preset of the liquid bag with dispensing tap — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 140 × 380 mm
Outside300 × 140 × 380 mm
Flat blank300 × 380 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Flat web width 300 · Filled depth 140 · Web height 380 mm
- Size range
- Flat web width 120–500 · Filled depth 30–180 · Web height 160–600 mm
- Manufacturing
- 300 × 140 × 380 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front film web, Back film web
- Board area
- 0.228 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Metallised PET / PE laminate · 0.09 mm caliper
- Board options
- Met PET/PEWhite PET/PE
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.09 mm for Metallised PET / PE laminate). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| front film webFront film web | 300 × 370 | L × – |
| Top sealFront film web | 300 × 10 | L × – |
| back film webBack film web | 300 × 370 | L × – |
| Top sealBack film web | 300 × 10 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Side and base sealsmm
The liquid bag with dispensing tap family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this juice dispenser bag 5 l yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
