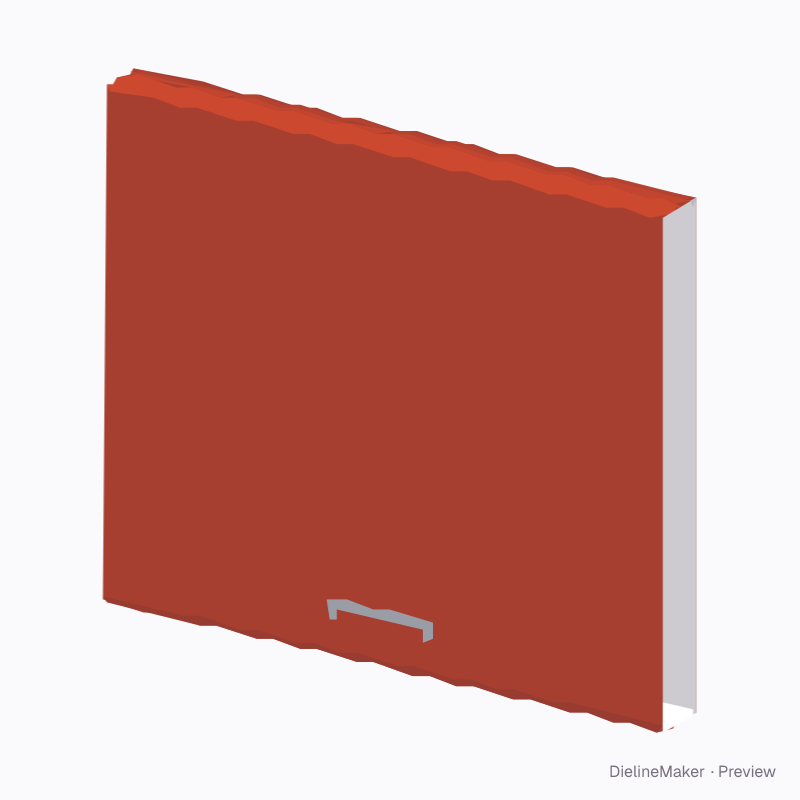

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Wide promotional matchbook dieline
A scored card cover folds around an inner paper-match comb, with a stapled retaining flap and striker reference. Export the cover trim and scores. Match chemistry, striker coating and safety specifications must come from the match supplier; this is a cover artwork template. A ready-sized preset of the folded matchbook — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside65 × 6 × 55 mm
Outside65 × 6 × 55 mm
Flat blank65 × 134 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Cover width 65 · Spine depth 6 · Cover height 55 mm
- Size range
- Cover width 35–75 · Spine depth 4–10 · Cover height 40–80 mm
- Manufacturing
- 65 × 6 × 55 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.009 m² · about 70 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back cover | 65 × 55 | L × H |
| Upper spine | 65 × 6 | L × W |
| Front cover | 65 × 53 | L × – |
| Lower return | 65 × 6 | L × W |
| Stapled retaining flap | 65 × 14 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Retaining flapmm
- Cover opening°
The folded matchbook family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this wide promotional matchbook yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
