DM-ROLL-01Labels
Film / fabric roll with tail dieline

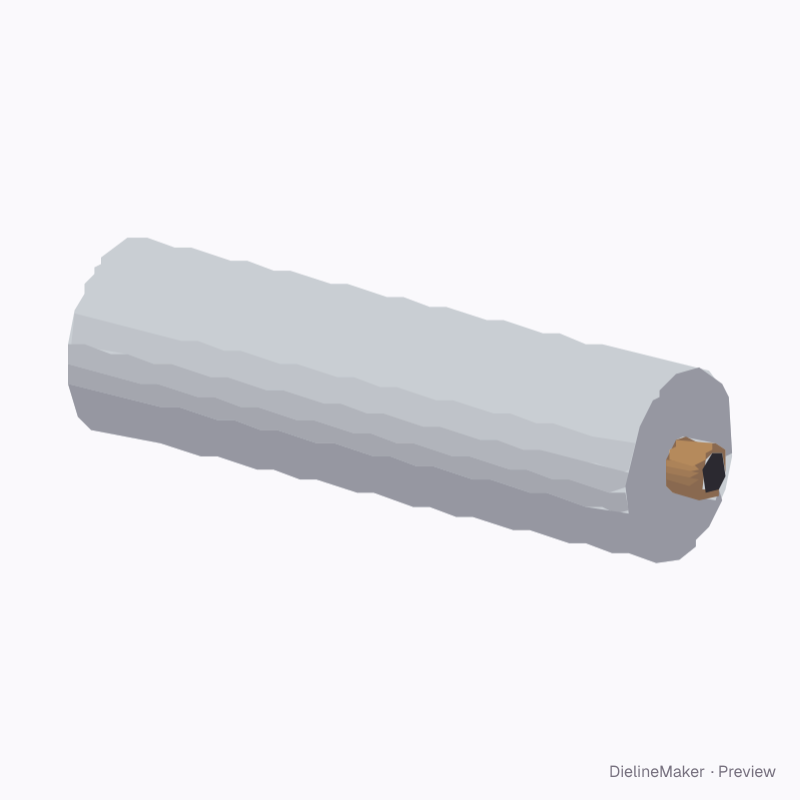

A lying roll of metallised film, fabric or fleece with a projecting, flush or no core and a tail unrolled down the front. Print the continuous sheet; tie it with ribbons. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 180 × 600 mm
OutsideØ 180 × 600 mm
Flat blank600 × 865.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLL-01
- Inside size
- Roll diameter 180 · Web width 600 mm
- Size range
- Roll diameter 40–600 · Web width 100–2000 mm
- Manufacturing
- Ø 180 × 600 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.519 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Core3 options
- Unrolled tailmm
- Material3 options
- Pose3 options
- Tiescount
- Base colour6 options
