The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ROLL-01Labels

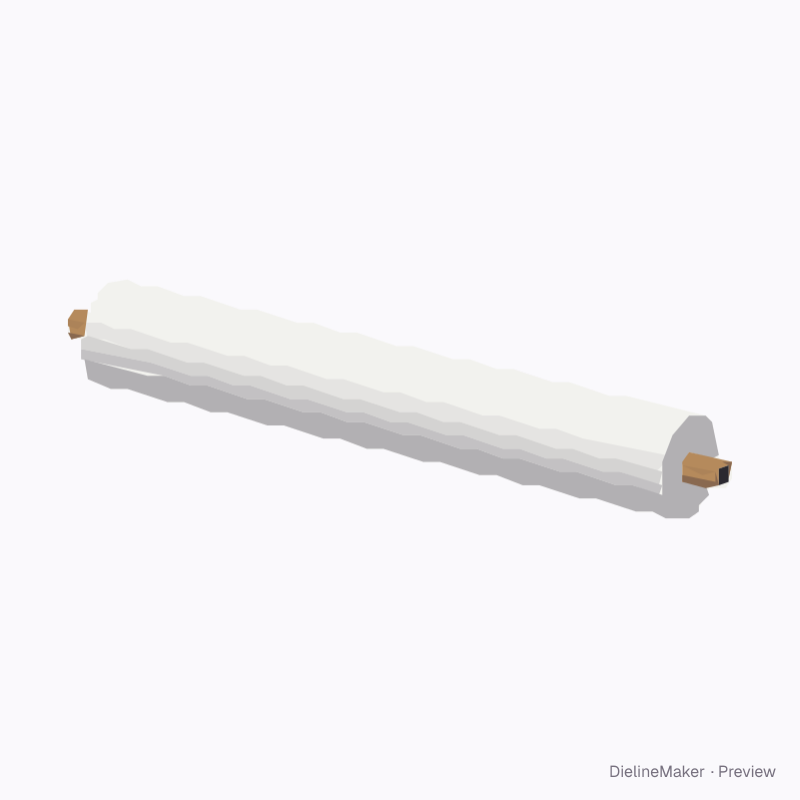

Fabric roll with projecting core dieline
A lying roll of metallised film, fabric or fleece with a projecting, flush or no core and a tail unrolled down the front. Print the continuous sheet; tie it with ribbons. A ready-sized preset of the film / fabric roll with tail — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 220 × 1400 mm
OutsideØ 220 × 1400 mm
Flat blank1400 × 1291.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ROLL-01
- Inside size
- Roll diameter 220 · Web width 1400 mm
- Size range
- Roll diameter 40–600 · Web width 100–2000 mm
- Manufacturing
- Ø 220 × 1400 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.808 m²
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Core3 options
- Unrolled tailmm
- Material3 options
- Pose3 options
- Tiescount
- Base colour6 options
