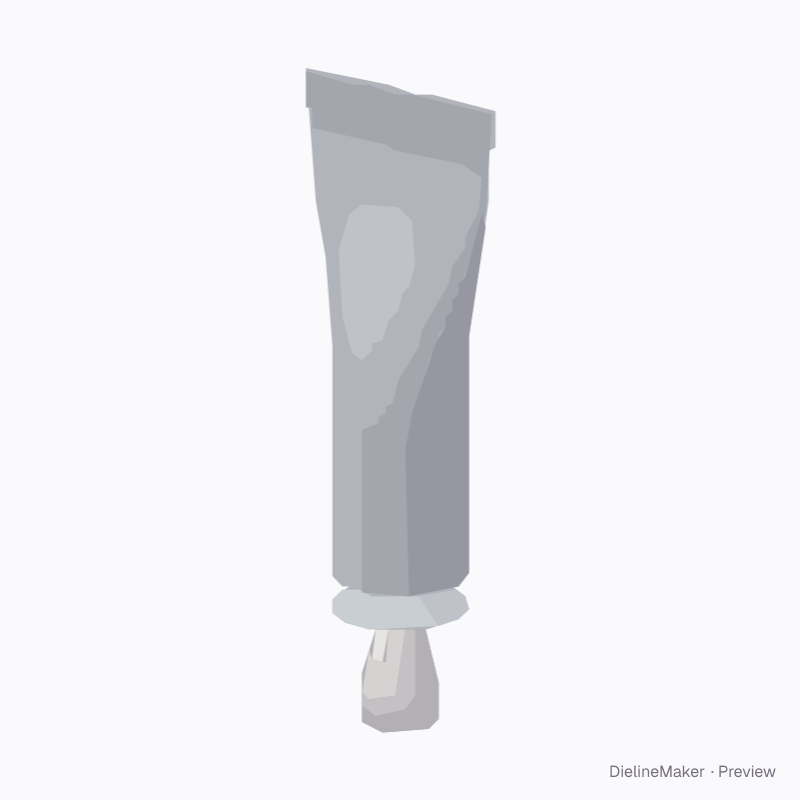

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ALTUBE-01Labels
Ointment tube with piercing cap dieline
A collapsible aluminium tube with folded crimp, shoulder and screw or piercing cap. Print the metal directly or wrap a paper label; stand it on its cap or lay it flat like a paint tube. A ready-sized preset of the aluminium squeeze tube — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 22 × 110 mm
OutsideØ 22 × 110 mm
Flat blank69.1 × 74.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ALTUBE-01
- Inside size
- Diameter 22 · Length with cap 110 mm
- Size range
- Diameter 10–60 · Length with cap 50–250 mm
- Manufacturing
- Ø 22 × 110 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.005 m² · about 108 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Decoration2 options
- Pose2 options
- Cap2 options
- Squeezed%
- Rolled-up tail%
- Metal4 options
- Cap colour4 options
The aluminium squeeze tube family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this ointment tube with piercing cap yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
