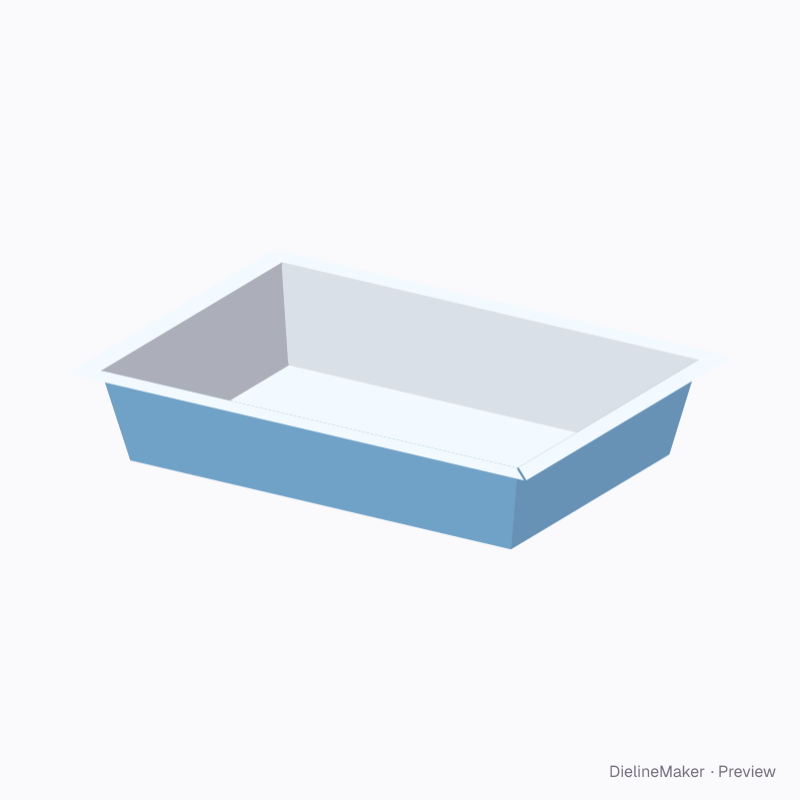

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-OUTWARD-RIM-TRAY-01Trays & lids
Ready-meal tray with rim dieline
A tapered paperboard tray whose walls flare to a flat flange folded outward all round, mitred at the corners. A ready-sized preset of the tray with outward folded rim — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 40 mm
Outside181 × 121 × 41 mm
Flat blank281.8 × 221.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-OUTWARD-RIM-TRAY-01
- Inside size
- Base length 180 · Base width 120 · Height 40 mm
- Size range
- Base length 50–400 · Base width 40–300 · Height 15–150 mm
- Manufacturing
- 180.5 × 120.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.056 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

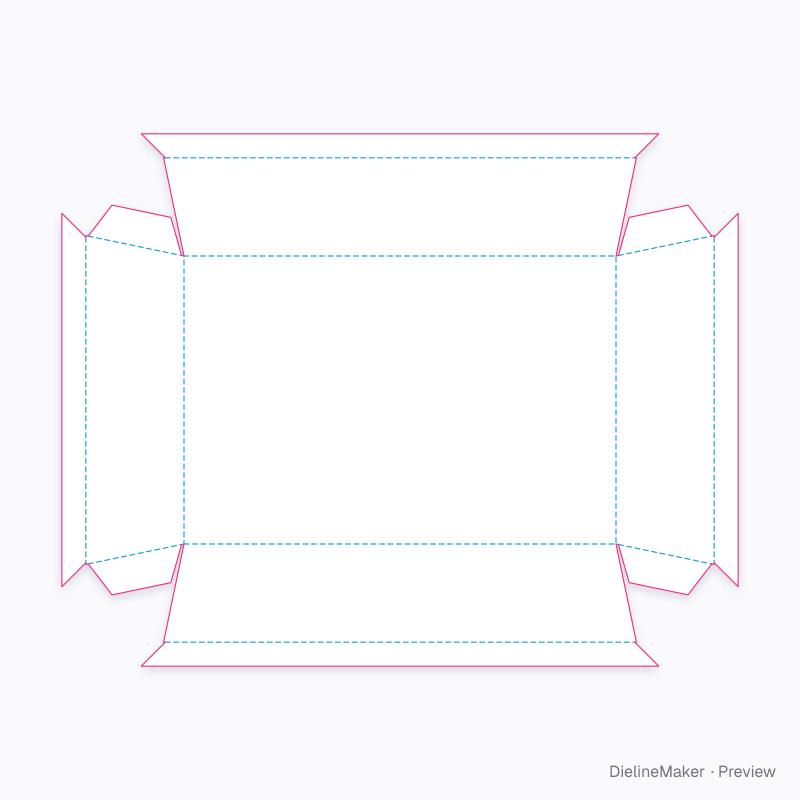

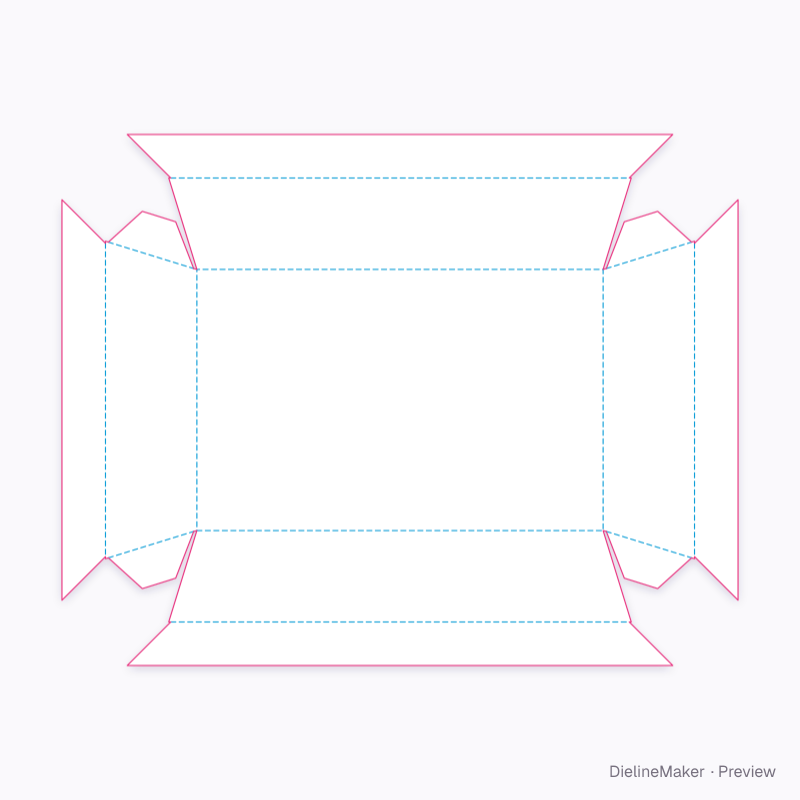

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-OUTWARD-RIM-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 180 × 120 | L × W |
| Front wall | 180 × 40.9 | L × – |
| Back wall | 180 × 40.9 | L × – |
| Left wall | 40.9 × 120 | – × W |
| Right wall | 40.9 × 120 | – × W |
| Rim flange ×2 | 195.6 × 10 | – |
| Rim flange ×2 | 10 × 135.6 | – |
| Glue flap ×4 | 39.8 × 14.7 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Wall draft°
- Rim flange widthmm
The tray with outward folded rim family
The same structure with sizes, boards and options set for a use.
