DM-VENTED-RETURN-TRAY-01Trays & lids
Vented tray with curved end returns dieline
A tray with arched rolled end returns and rows of round vent holes along its long walls. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 80 mm
Outside303.2 × 203.2 × 83.2 mm
Flat blank576.4 × 360 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-VENTED-RETURN-TRAY-01
- Inside size
- Length 300 · Width 200 · Height 80 mm
- Size range
- Length 100–600 · Width 80–400 · Height 30–200 mm
- Manufacturing
- 301.6 × 201.6 × 81.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.164 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KB-fluteKraft 350
- Good for

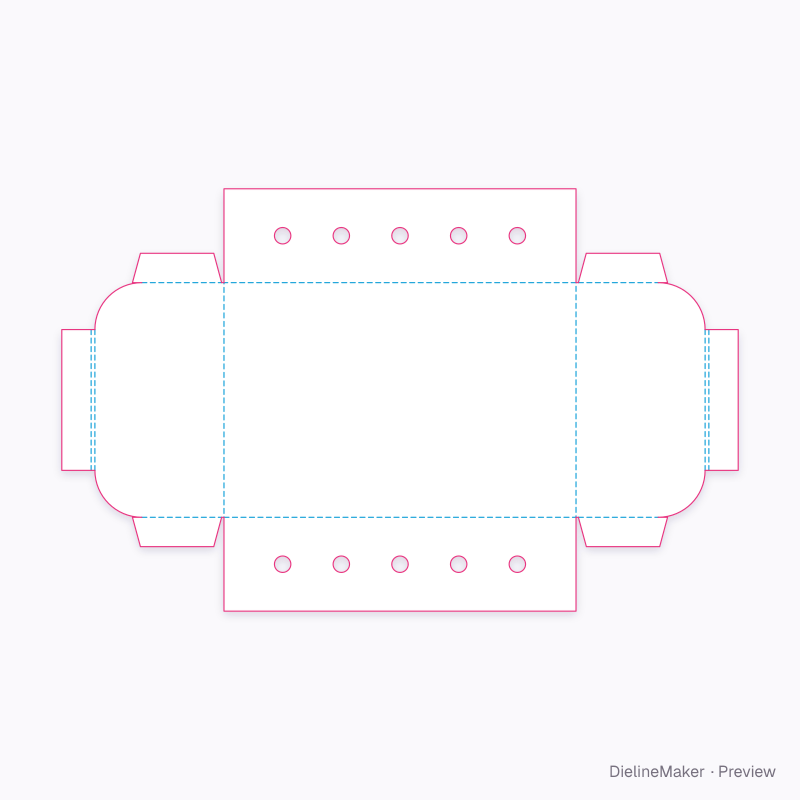

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-VENTED-RETURN-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 300 × 200 | L × W |
| Vented long wall ×2 | 300 × 80 | L × H |
| Curved end wall ×2 | 110 × 200 | – × W |
| Glue flap ×4 | 76 × 25 | – |
| End return roll ×2 | 3.2 × 120 | – |
| End return inner ply ×2 | 25 × 120 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- End wall risemm
- Shaped return openingmm
- Vent holes per long wallcount
- Vent diametermm
Ready-sized vented tray with curved end returns presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset

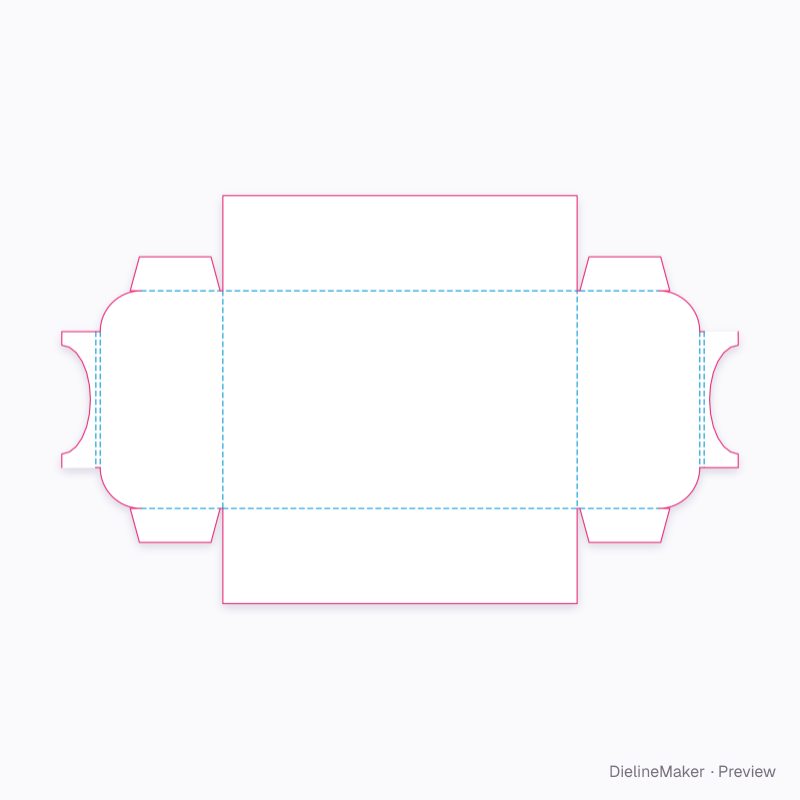

Similar structures
