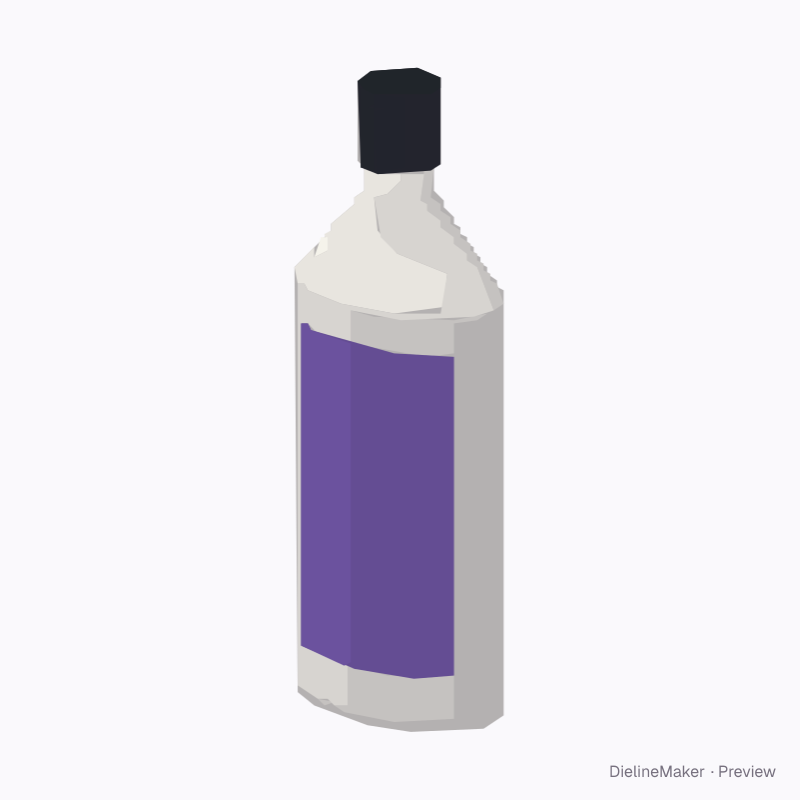

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Oval shampoo bottle label template
80 × 48 × 230 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the oval bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object size80 × 48 × 230 mm
Artwork area65.6 × 120 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Body width 80 · Body depth 48 · Bottle height without carry attachment 230 mm
- Size range
- Body width 40–240 · Body depth 25–180 · Bottle height without carry attachment 90–420 mm
- Parts
- 2 parts — Front label, Back label
- Artwork area
- 0.016 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 16 options; the template and 3D preview follow each change.
- Label width (0 = auto)mm
- Label height (0 = auto)mm
- Back labelon / off
- Body colour10 options
- Cap colour10 options
- Molded body profile8 options
- Bottle material3 options
- Blind grip recess3 options
- Molded side grip ribson / off
- Label seat insetmm
- Label construction2 options
- Label outline6 options
- Carry attachment3 options
- Dispensing closure7 options
- Open dispensing lidon / off
- Show dispenser overcapon / off
The oval bottle family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this oval shampoo bottle yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
