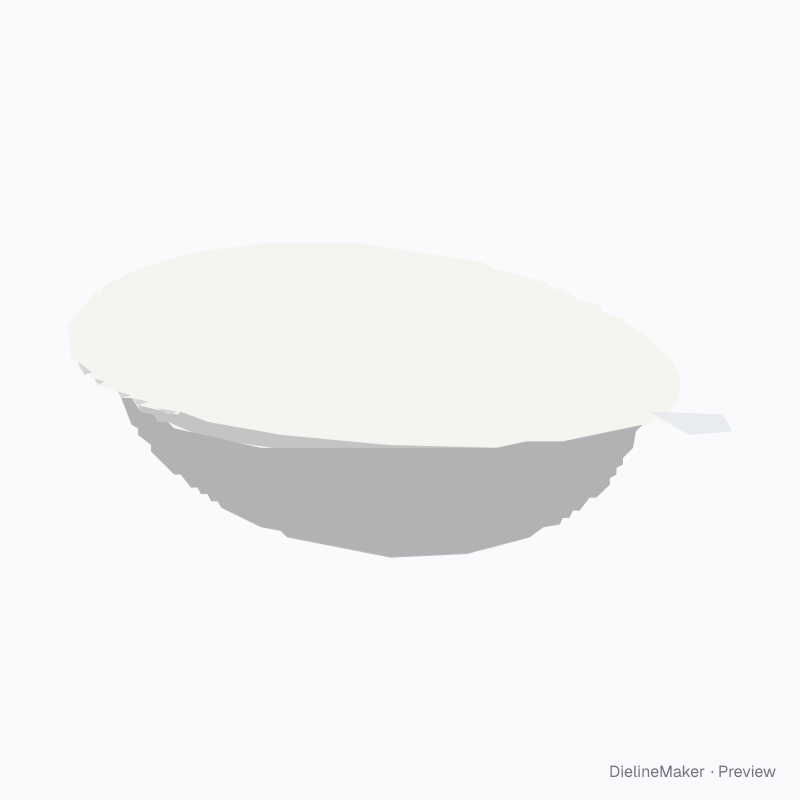

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-EGGPACK-01Labels
Egg-shaped peel-seal pack dieline
A thermoformed egg-shaped cup with a flange and a peel-off lidding film with pull tab, single or twin. Print the lidding film to the egg outline. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside80 × 58 × 28 mm
Outside80 × 58 × 28 mm
Flat blank90 × 69.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-EGGPACK-01
- Inside size
- Egg length 80 · Egg width 58 · Cavity depth 28 mm
- Size range
- Egg length 40–160 · Egg width 30–120 · Cavity depth 10–80 mm
- Manufacturing
- 80 × 58 × 28 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.005 m² · about 104 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

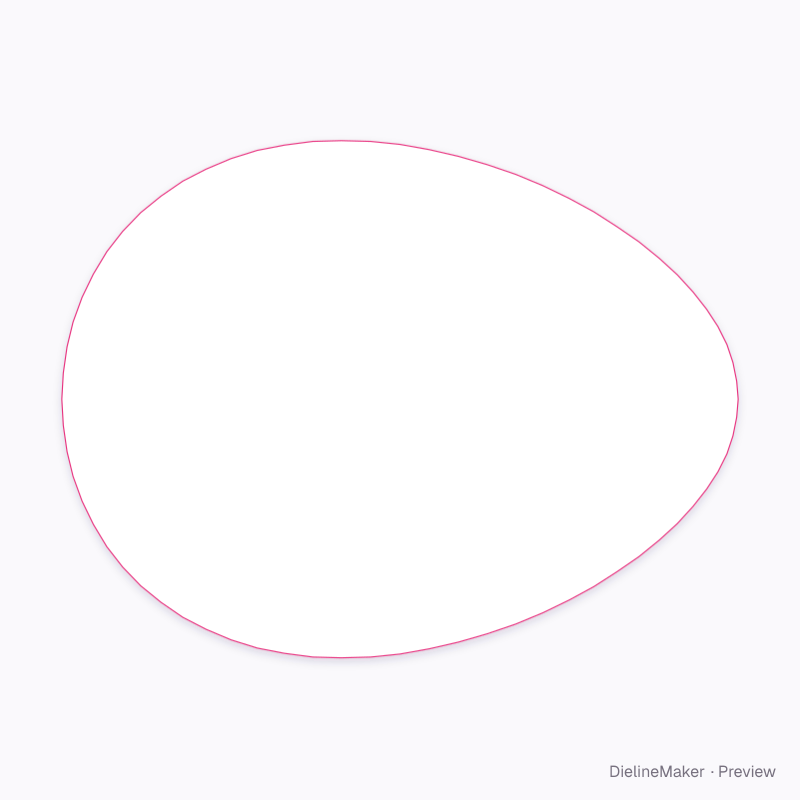

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Cavities2 options
- Cup5 options

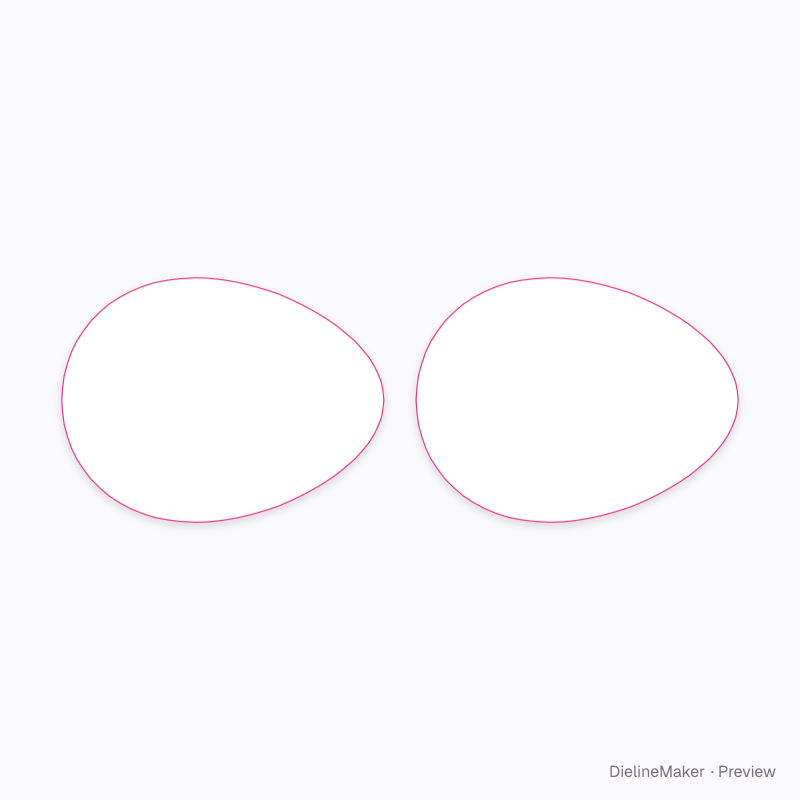

Ready-sized egg-shaped peel-seal pack presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this egg-shaped peel-seal pack yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
