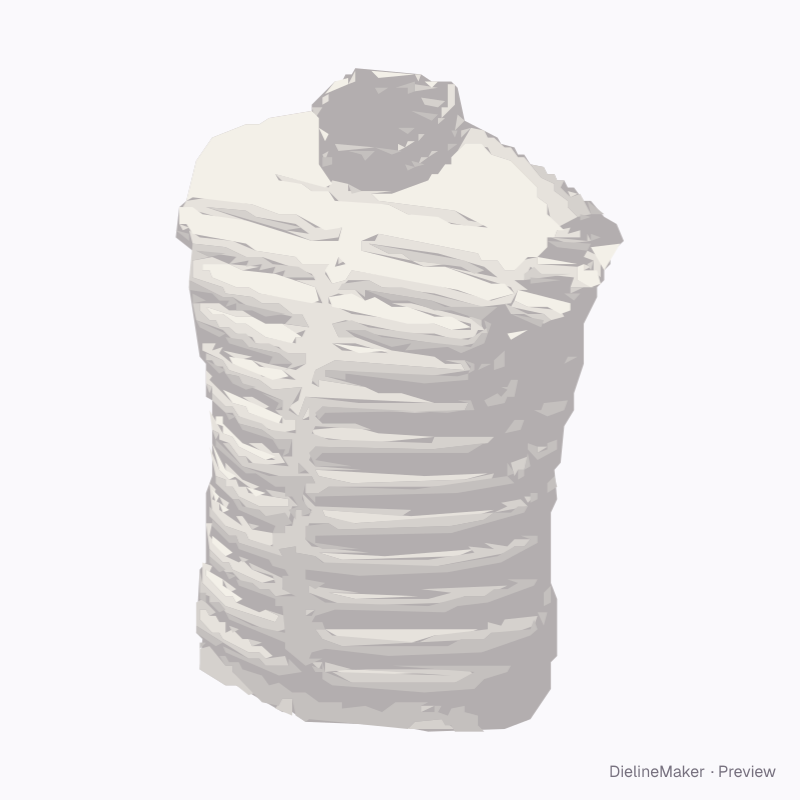

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Padded chamber vest decoration template
An original sleeveless vest with physically bulged padded chambers, recessed horizontal seams, an inward lining and open bound armholes. Choose a padded stand collar or rib-knit collar, and a front zip with an optional snap storm flap. Two low zipped pockets retain real welt lips. Independent chest/rear decoration references export at size; exact supplier sewing, grading, insulation/weather performance and all-over panels are separate. A parametric template — adjust the object dimensions and decoration area to preview your artwork at size.
Object size560 × 710 mm
Artwork area268.8 × 41.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Torso width 560 · Garment height 710 mm
- Size range
- Torso width 392–784 · Garment height 568–923 mm
- Parts
- 3 parts — Left chest chamber decoration, Right chest chamber decoration, Rear chamber decoration
- Artwork area
- 0.021 m²
- Good for

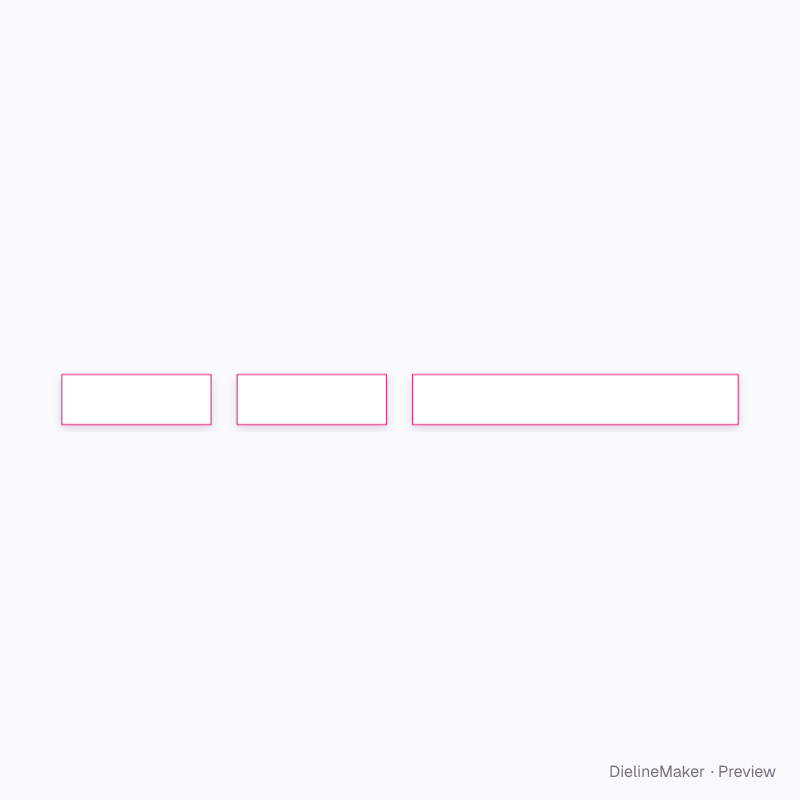

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Object colour17 options
- Padded chamber depthmm
- Horizontal chamberscount
- Collar construction2 options
- Collar heightmm
- Front fastening2 options
Ready-sized padded chamber vest presets
The same model with sizes and artwork options ready to customize.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this padded chamber vest yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
