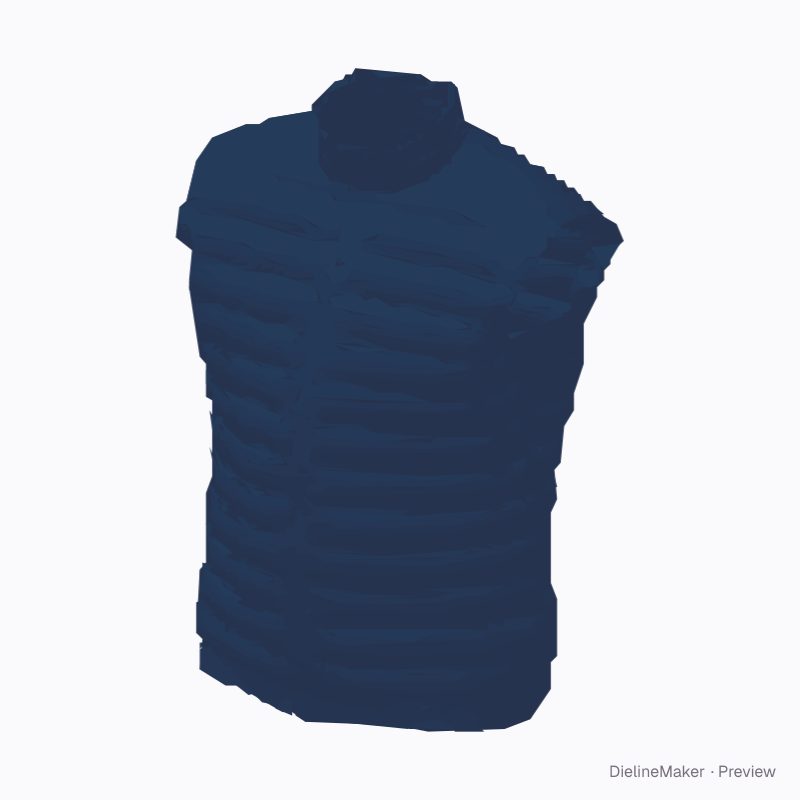

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementApparel & merchandise
Padded stand-collar zip vest decoration template
An original sleeveless vest with physically bulged padded chambers, recessed horizontal seams, an inward lining and open bound armholes. Choose a padded stand collar or rib-knit collar, and a front zip with an optional snap storm flap. Two low zipped pockets retain real welt lips. Independent chest/rear decoration references export at size; exact supplier sewing, grading, insulation/weather performance and all-over panels are separate. A ready-sized preset of the padded chamber vest — adjust the object dimensions and decoration area to preview your artwork at size.
Object size560 × 710 mm
Artwork area268.8 × 41.6 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Torso width 560 · Garment height 710 mm
- Size range
- Torso width 392–784 · Garment height 568–923 mm
- Parts
- 3 parts — Left chest chamber decoration, Right chest chamber decoration, Rear chamber decoration
- Artwork area
- 0.021 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Object colour17 options
- Padded chamber depthmm
- Horizontal chamberscount
- Collar construction2 options
- Collar heightmm
- Front fastening2 options
The padded chamber vest family
The same model with sizes and artwork options ready to customize.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this padded stand-collar zip vest yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
