A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels

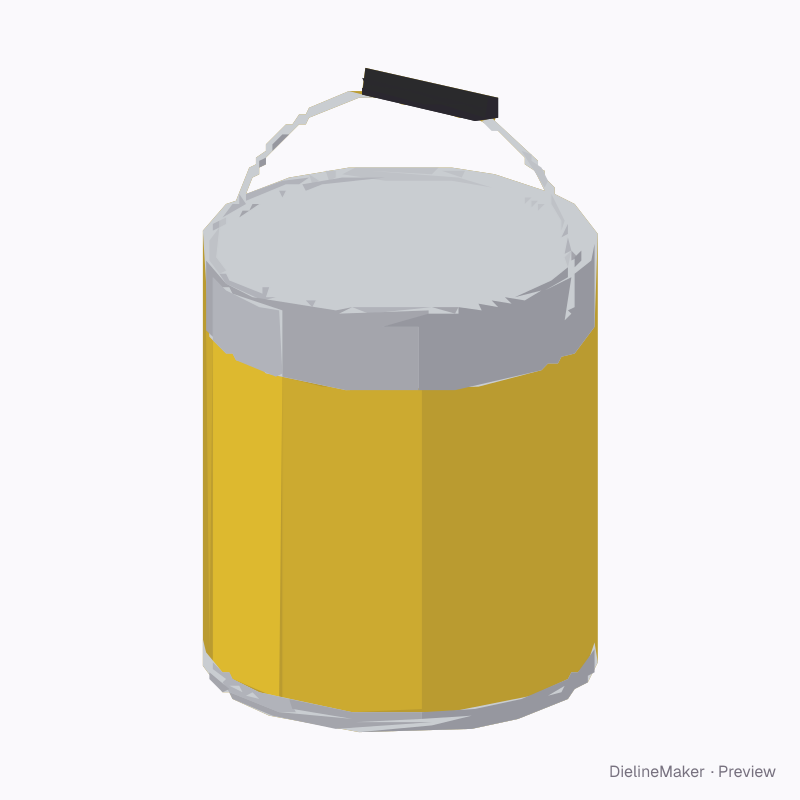

Paint can 1 gallon label template
610 × 711 can (168 × 195 mm) with a bail handle. A ready-sized preset of the paint can — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 168 × 195 mm
Artwork area538.3 × 149.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 168 · Height 195 mm
- Size range
- Diameter 60–200 · Height 60–260 mm
- Parts
- One artwork area
- Artwork area
- 0.080 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Bail handleon / off
- Can finish5 options
- Lid labelon / off
The paint can family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this paint can 1 gallon yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
