DM-PAIRED-RAIL-TRAY-01Trays & lids
Tray with paired hollow rails dieline
An open tray whose two long sides fold into hollow cushioning rails (square or triangular) joined across a supporting floor; open ends or low end rims, optional hand holes. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 50 mm
Outside303.2 × 203.2 × 53.2 mm
Flat blank300 × 500 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PAIRED-RAIL-TRAY-01
- Inside size
- Length 300 · Width 200 · Rail height 50 mm
- Size range
- Length 60–1000 · Width 60–800 · Rail height 10–300 mm
- Manufacturing
- 301.6 × 201.6 × 51.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.150 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteKraft 350
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PAIRED-RAIL-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 300 × 200 | L × W |
| Rail outer wall ×2 | 300 × 50 | L × H |
| Rail top band ×2 | 300 × 30 | L × – |
| Rail inner wall ×2 | 300 × 50 | L × H |
| Rail foot (glued to the floor) ×2 | 300 × 20 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Rail profile2 options
- Rail widthmm
- Ends2 options
- End rim heightmm
- Hand holeson / off
Ready-sized tray with paired hollow rails presets
The same structure with sizes, boards and options set for a use.

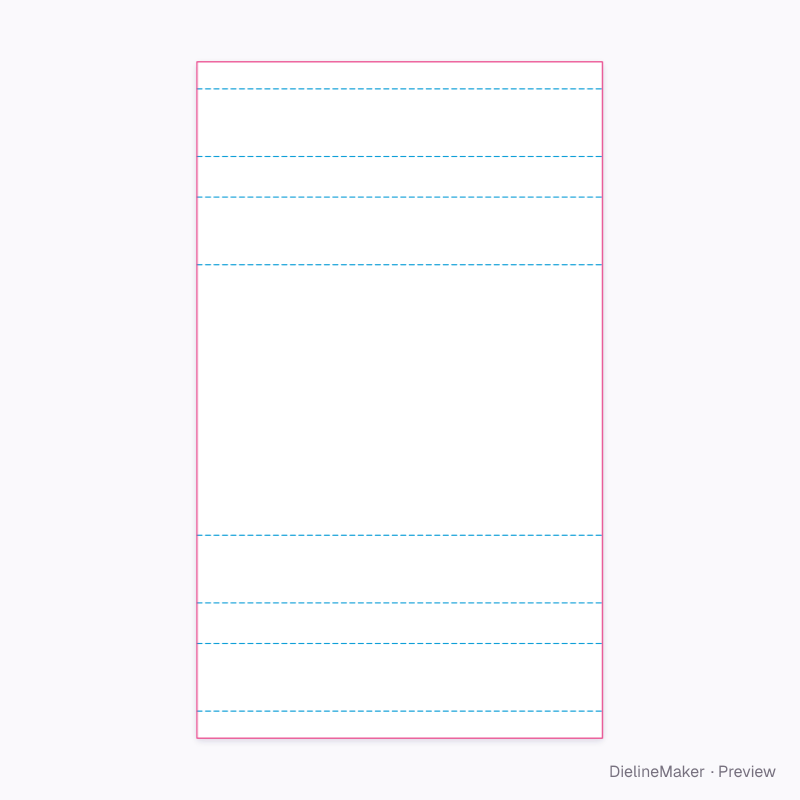

- Preset

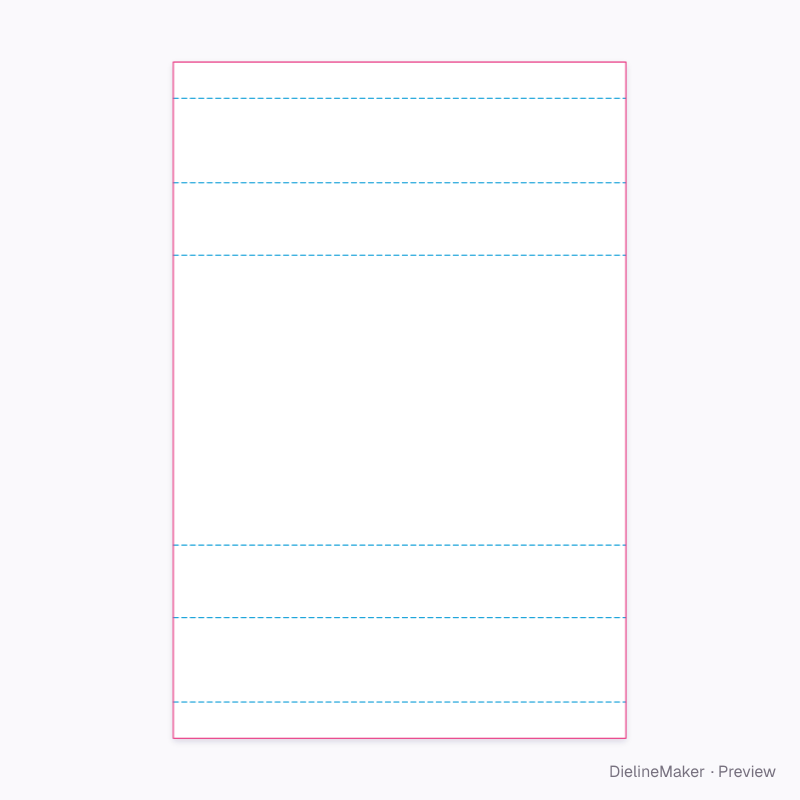

Preset

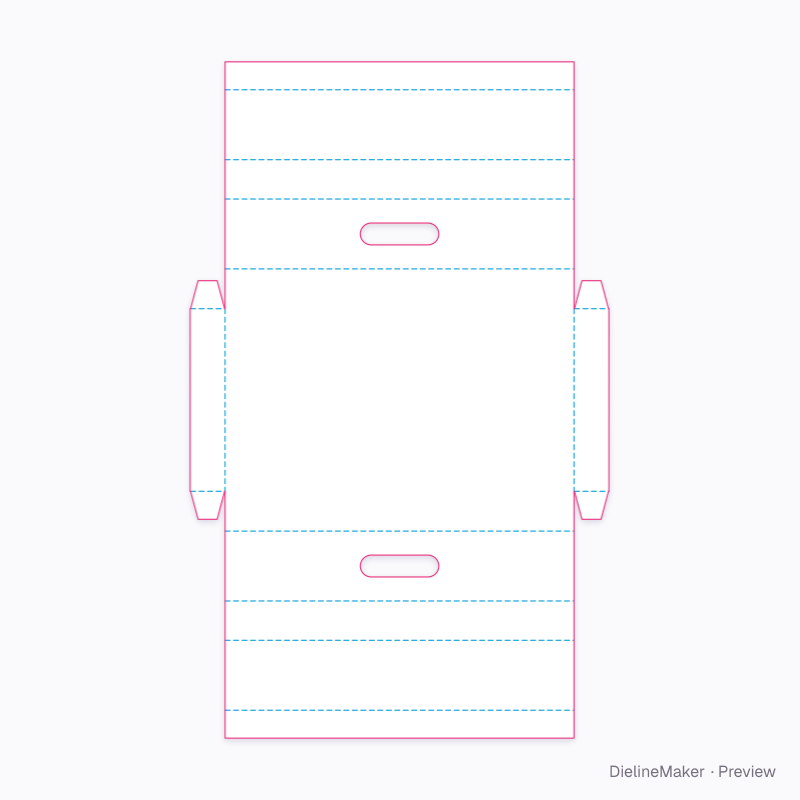

Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tray with paired hollow rails yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
