The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA B10.01.00.00Trays & lids
Four-wall return tray dieline
Paperboard trays with four return walls, floor seats, retaining corners or paired end nibs. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 45 mm
Outside262.9 × 182.1 × 45.6 mm
Flat blank447.1 × 361.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA B10.01.00.00
- Inside size
- Inside length (A) 260 · Inside width (B) 180 · Inside height 45 mm
- Size range
- Inside length (A) 80–700 · Inside width (B) 60–550 · Inside height 15–180 mm
- Manufacturing
- 262.1 × 181.3 × 45.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.134 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350FBB 400Kraft 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA B10.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 262.1 × 181.3 | – |
| Tray wall ×2 | 262.1 × 45.2 | – × H + T/2 |
| Glued inner wall ×2 | 261.3 × 44.8 | – × H − T/2 |
| Tray wall ×2 | 45.2 × 181.3 | H + T/2 × – |
| Glued inner wall ×2 | 47.3 × 180.4 | – × W + T |
| Corner glue flap ×4 | 45.2 × 44.4 | H + T/2 × H − 1.5T |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction6 options
- Locking nib depthmm
Ready-sized four-wall return tray presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

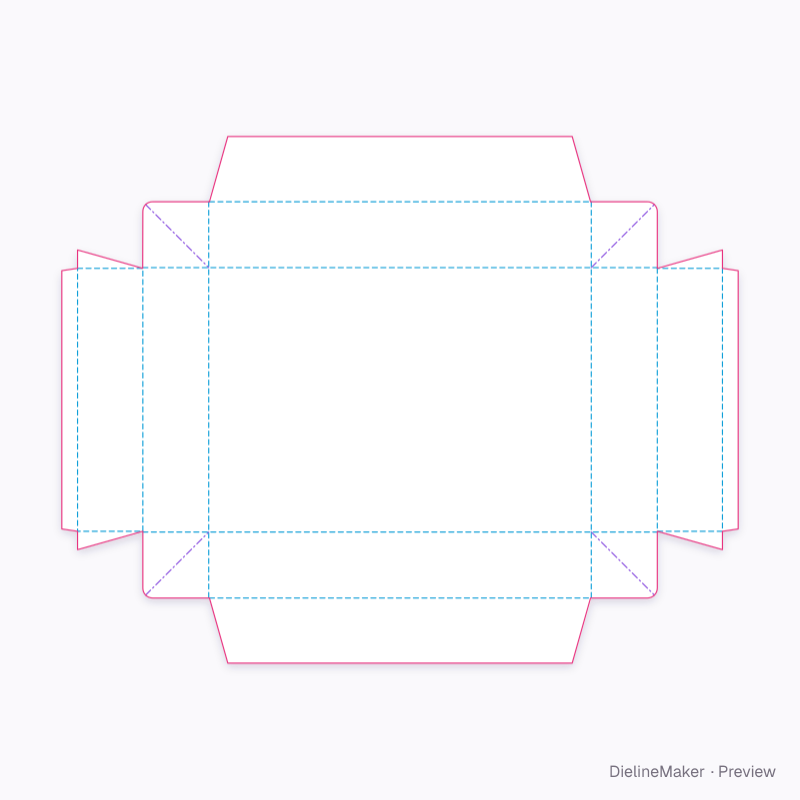

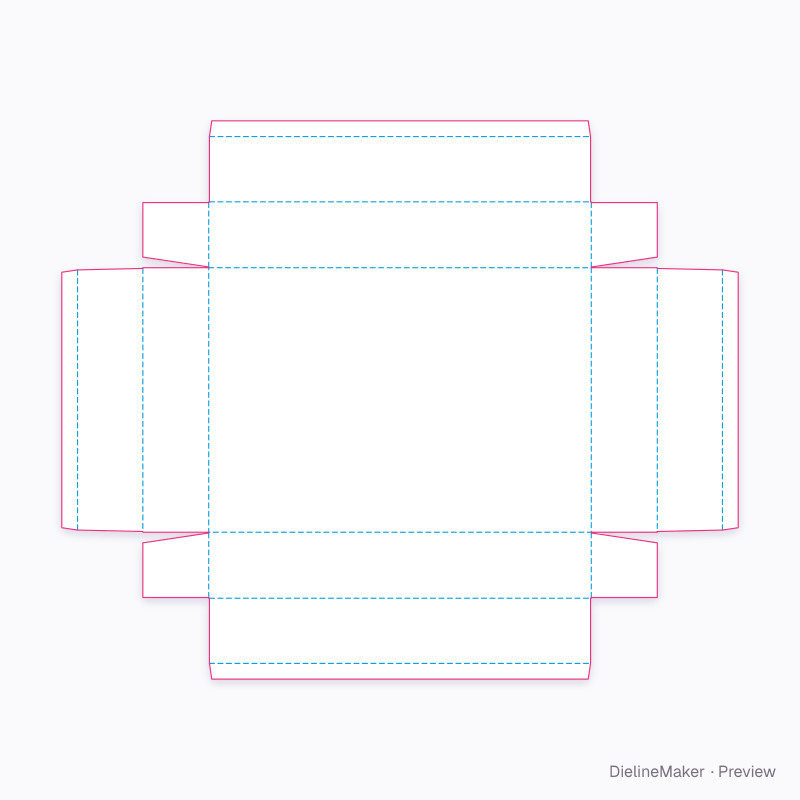

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this four-wall return tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
