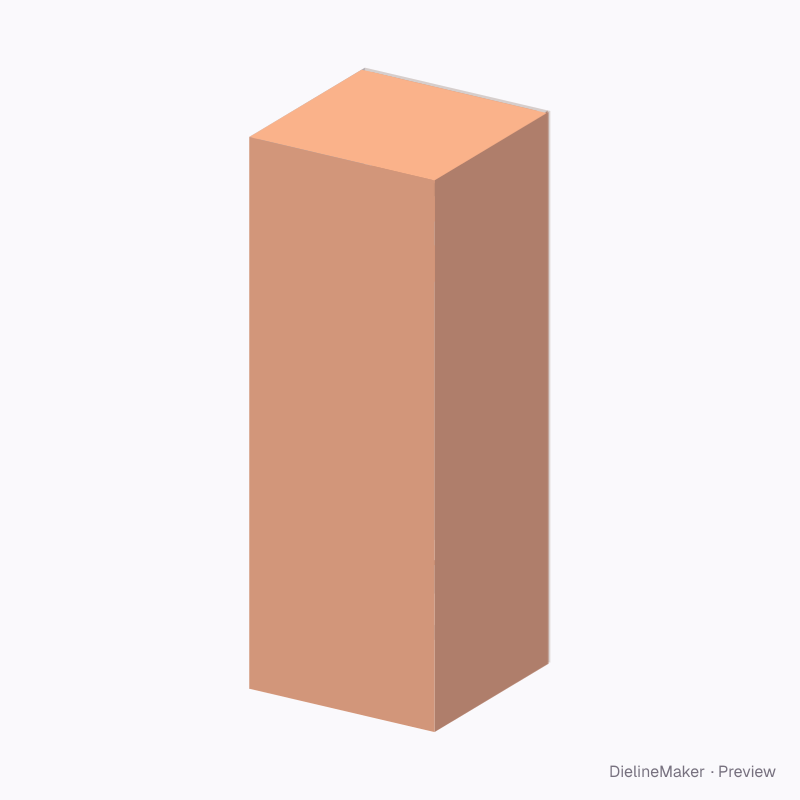

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PAIRED-RETENTION-SHELF-01Tuck end

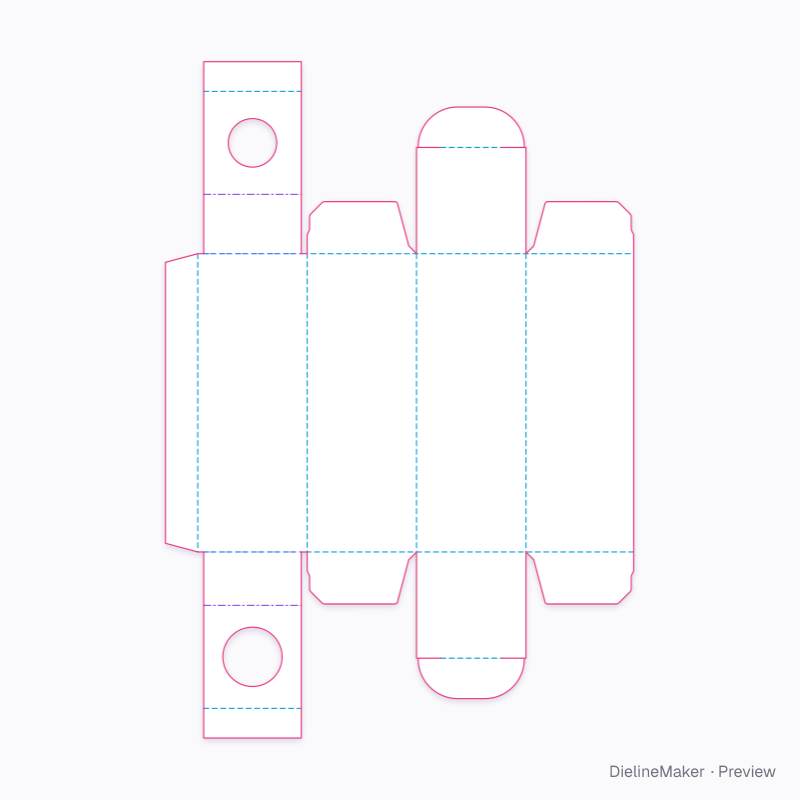

Vial box with top and bottom locators dieline
A straight tuck carton with a built-in apertured shelf under each tuck lid. Round holes in the top and bottom shelves line up to hold one or more vials, bottles or tubes upright. A ready-sized preset of the tuck carton with paired retention shelves — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside40 × 40 × 110 mm
Outside41.2 × 41.2 × 111.2 mm
Flat blank173.8 × 250.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PAIRED-RETENTION-SHELF-01
- Inside size
- Length 40 · Width 40 · Height 110 mm
- Size range
- Length 30–250 · Width 25–140 · Height 70–350 mm
- Manufacturing
- 40.6 × 40.6 × 110.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.031 m² · about 15 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- FBB 400SBS 350SBS 300Kraft 350Black 350SBS 18 pt
- Good for

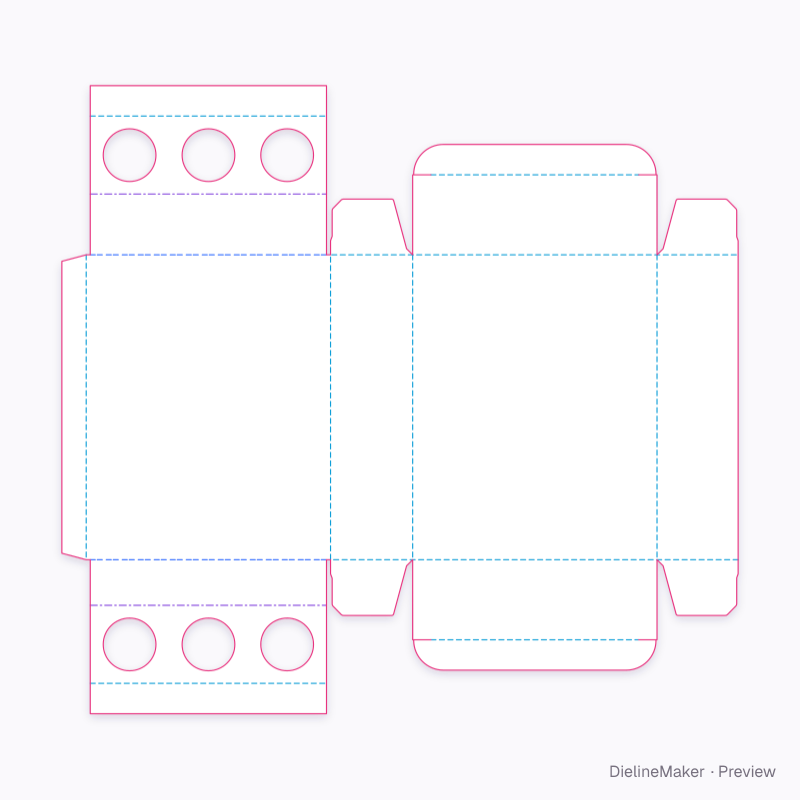

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PAIRED-RETENTION-SHELF-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 40.6 × 110.6 | – × H + T |
| Left side | 40.6 × 110.6 | – × H + T |
| Back | 40.6 × 110.6 | – × H + T |
| Right side | 40 × 110.6 | – × H + T |
| Glue flap | 12 × 110.6 | – × H + T |
| Top closure | 40.6 × 39.4 | – |
| Top tuck | 39.4 × 15 | – |
| Top dust flap | 40.6 × 19.3 | – |
| Top dust flap | 40 × 19.3 | – |
| Bottom closure | 40.6 × 39.4 | – |
| Bottom tuck | 39.4 × 15 | – |
| Bottom dust flap | 40.6 × 19.3 | – |
| Bottom dust flap | 40 × 19.3 | – |
| Upper shelf return | 36.2 × 22 | – |
| Upper retention shelf | 36.2 × 38.2 | – |
| Upper bonded brace | 36.2 × 11 | – |
3 more panels are listed in the editor’s structure step.
