Parametric structureDisplay
600 × 400 mm quarter-pallet skirt dieline

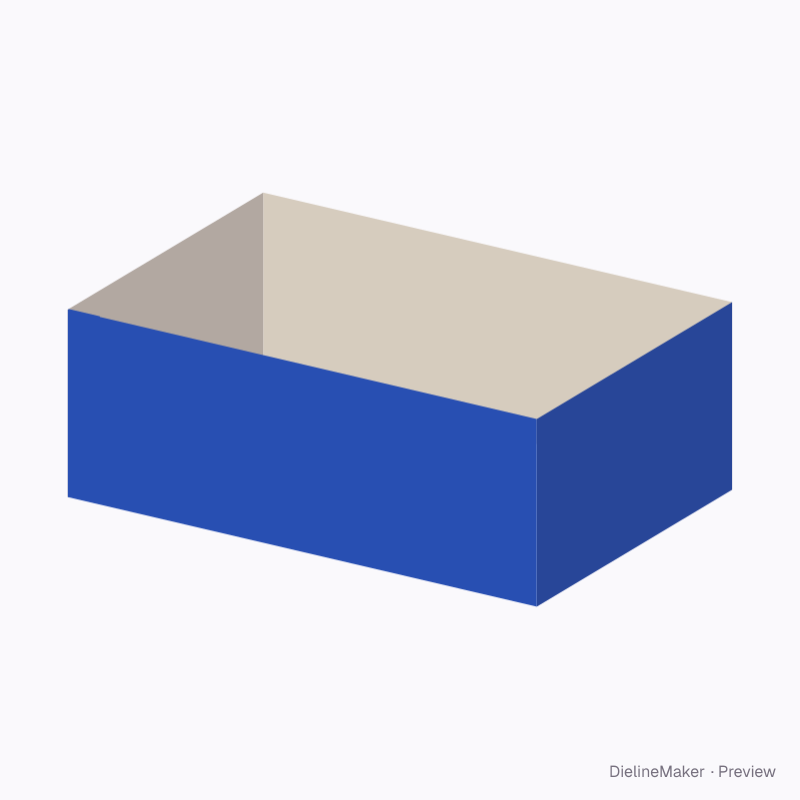

Two scored L-shaped corrugated pieces join into a four-sided pallet skirt. The open-ended wrap surrounds the pallet or supporting product stack; it is not a load-bearing pallet. Confirm the score allowance and fit with your converter. A ready-sized preset of the pallet display skirt — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 400 × 220 mm
Outside600 × 400 × 220 mm
Flat blank1040 × 220 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Footprint width 600 · Footprint depth 400 · Skirt height 220 mm
- Size range
- Footprint width 300–1400 · Footprint depth 250–1200 · Skirt height 120–700 mm
- Manufacturing
- 600 × 400 × 220 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Front and right skirt, Back and left skirt
- Board area
- 0.458 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WB-fluteEB double
- Good for
The flat dieline

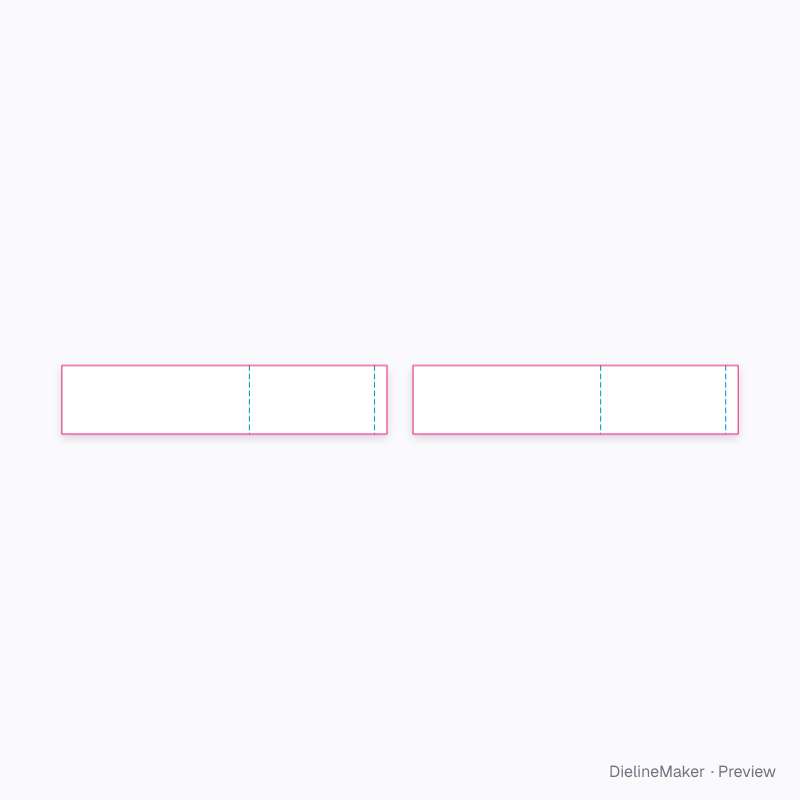

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| frontFront and right skirt | 600 × 220 | L × H |
| rightFront and right skirt | 400 × 220 | W × H |
| Joining lapFront and right skirt | 40 × 220 | – × H |
| frontBack and left skirt | 600 × 220 | L × H |
| rightBack and left skirt | 400 × 220 | W × H |
| Joining lapBack and left skirt | 40 × 220 | – × H |
