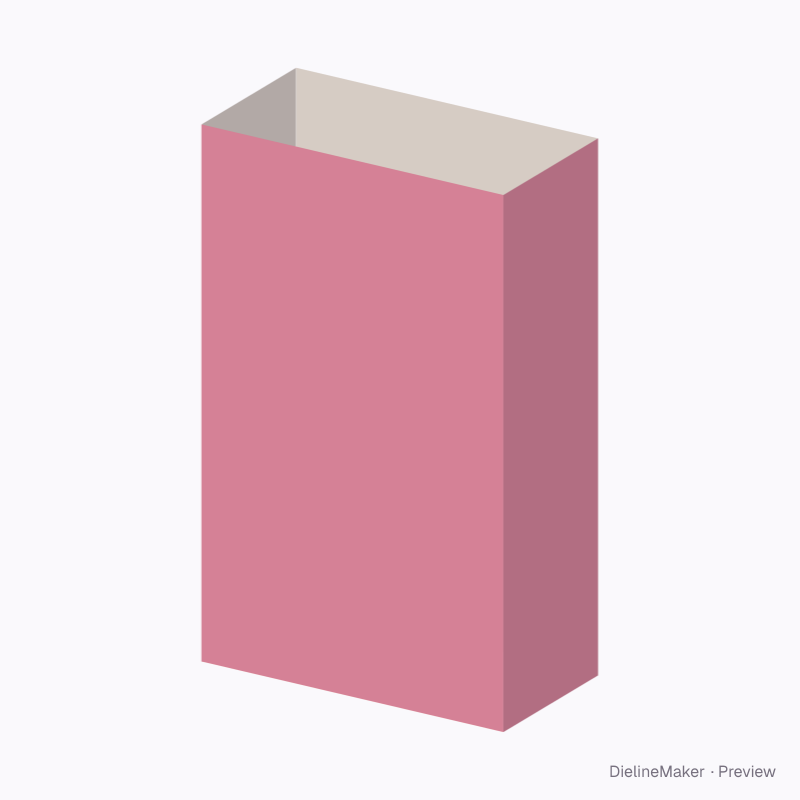

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Flush-mouth flat-bottom paper bag dieline
No-handle flush mouth with side gussets and a handmade pasted block-bottom reference. Machine SOS bottoming requires a converter drawing. A ready-sized preset of the paper shopping bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 75 × 245 mm
Outside150.9 × 75.9 × 245 mm
Flat blank471.4 × 292.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 150 · Gusset 75 · Height 245 mm
- Size range
- Width 80–600 · Gusset 40–250 · Height 100–700 mm
- Manufacturing
- 150.5 × 75.5 × 245 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.132 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Paper 170Kraft 350SBS 300SBS 18 pt
- Good for

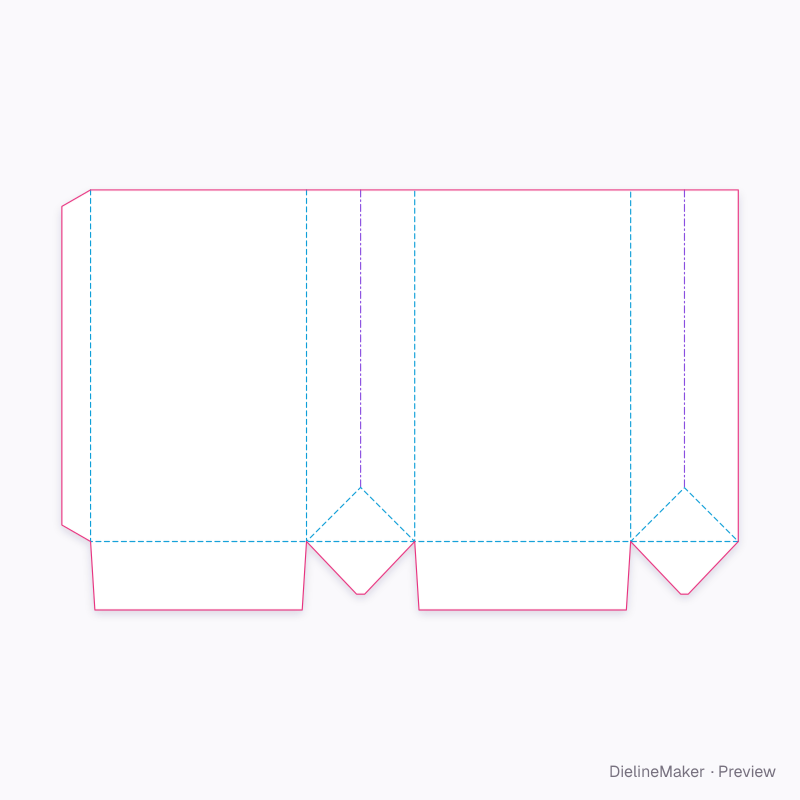

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 150.5 × 245 | W + T × H |
| Right gusset | 75.5 × 245 | G + T × H |
| Back | 150.5 × 245 | W + T × H |
| Left gusset | 75 × 245 | G × H |
| Glue flap | 20 × 245 | – × H |
| Bottom gusset flap | 75.5 × 36.7 | W + T × – |
| Bottom gusset flap | 75 × 36.7 | W × – |
| Bottom flap ×2 | 150.5 × 47.7 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Handles9 options
- Fold-over topon / off
- Top foldmm
- Bottom overlapmm
