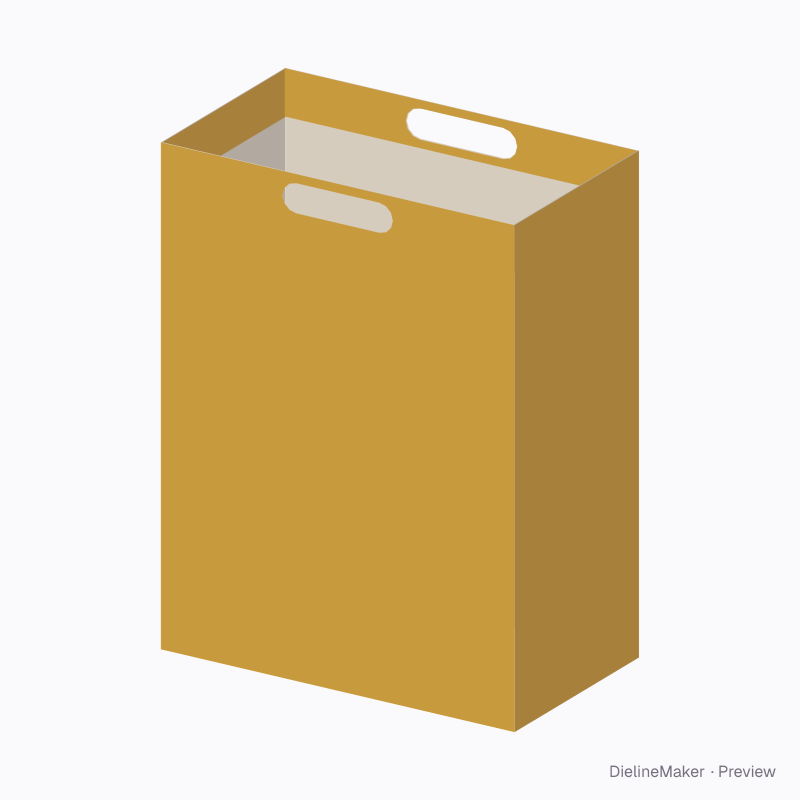

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Grocery bag dieline
Big kraft shopper with die-cut handles. A ready-sized preset of the paper shopping bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 180 × 420 mm
Outside320.9 × 180.9 × 420 mm
Flat blank1021.4 × 560.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 320 · Gusset 180 · Height 420 mm
- Size range
- Width 80–600 · Gusset 40–250 · Height 100–700 mm
- Manufacturing
- 320.5 × 180.5 × 420 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.549 m²
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Paper 170Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 320.5 × 420 | W + T × H |
| Right gusset | 180.5 × 420 | G + T × H |
| Back | 320.5 × 420 | W + T × H |
| Left gusset | 180 × 420 | G × H |
| Glue flap | 20 × 420 | – × H |
| Top fold ×2 | 320.5 × 40 | L + T × – |
| Top fold | 180.5 × 40 | W + T × – |
| Top fold | 180 × 40 | W × – |
| Bottom gusset flap | 180.5 × 89.2 | W + T × – |
| Bottom gusset flap | 180 × 89.2 | W × – |
| Bottom flap ×2 | 320.5 × 100.2 | L + T × – |
