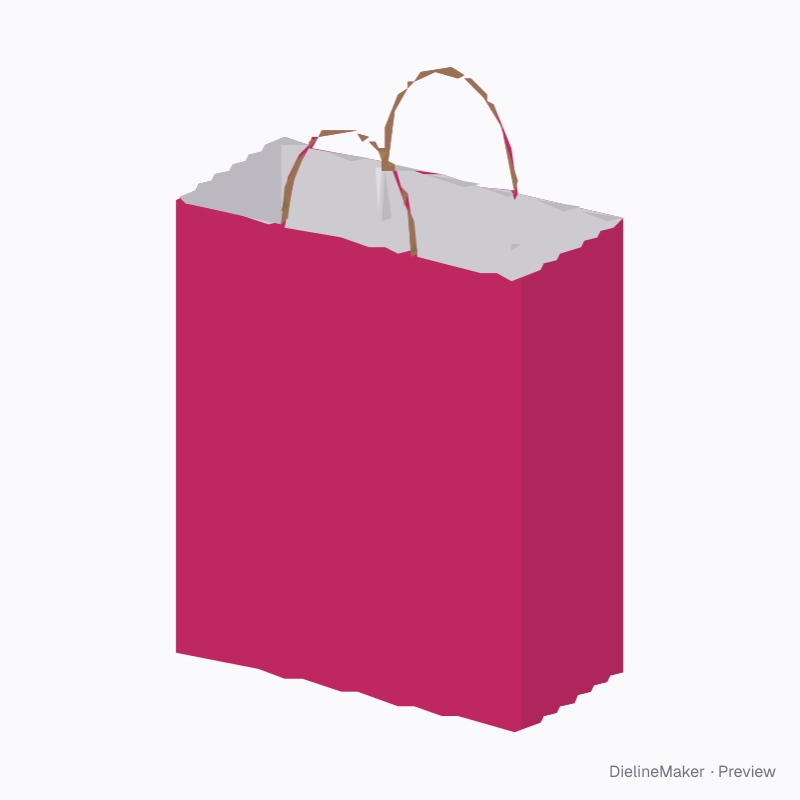

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Twisted paper-handle retail bag dieline
A standing paper bag with side gussets, overlapping bottom flaps and a folded or flush mouth. Choose die-cut handles, rope holes, pasted paper-tape strips or twisted paper loops with separate mounting patches. The cut net forms a handmade block-bottom reference; machine SOS bottom formation, stock, adhesive and handle load need the converter’s drawing and validation. A ready-sized preset of the paper shopping bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 120 × 300 mm
Outside250.9 × 120.9 × 300 mm
Flat blank761.4 × 370.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 250 · Gusset 120 · Height 300 mm
- Size range
- Width 80–600 · Gusset 40–250 · Height 100–700 mm
- Manufacturing
- 250.5 × 120.5 × 300 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Paper bag, front pasted paper-handle patch, front paper-web forming reference, back pasted paper-handle patch, back paper-web forming reference
- Board area
- 0.298 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Paper 170Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontPaper bag | 250.5 × 300 | W + T × H |
| Right gussetPaper bag | 120.5 × 300 | G + T × H |
| BackPaper bag | 250.5 × 300 | W + T × H |
| Left gussetPaper bag | 120 × 300 | G × H |
| Glue flapPaper bag | 20 × 300 | – × H |
| Bottom gusset flapPaper bag | 120.5 × 59.2 | W + T × – |
| Bottom gusset flapPaper bag | 120 × 59.2 | W × – |
| Bottom flap ×2Paper bag | 250.5 × 70.2 | L + T × – |
| Handle mounting patchfront pasted paper-handle patch | 152 × 35 | – |
| Supplier paper-web trim referencefront paper-web forming reference | 30 × 272.8 | – |
| Handle mounting patchback pasted paper-handle patch | 152 × 35 | – |
| Supplier paper-web trim referenceback paper-web forming reference | 30 × 272.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Handles9 options
- Fold-over topon / off
- Top foldmm
- Twisted-handle end spacingmm
- Twisted-handle risemm
- Bottom overlapmm
The paper shopping bag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this twisted paper-handle retail bag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
