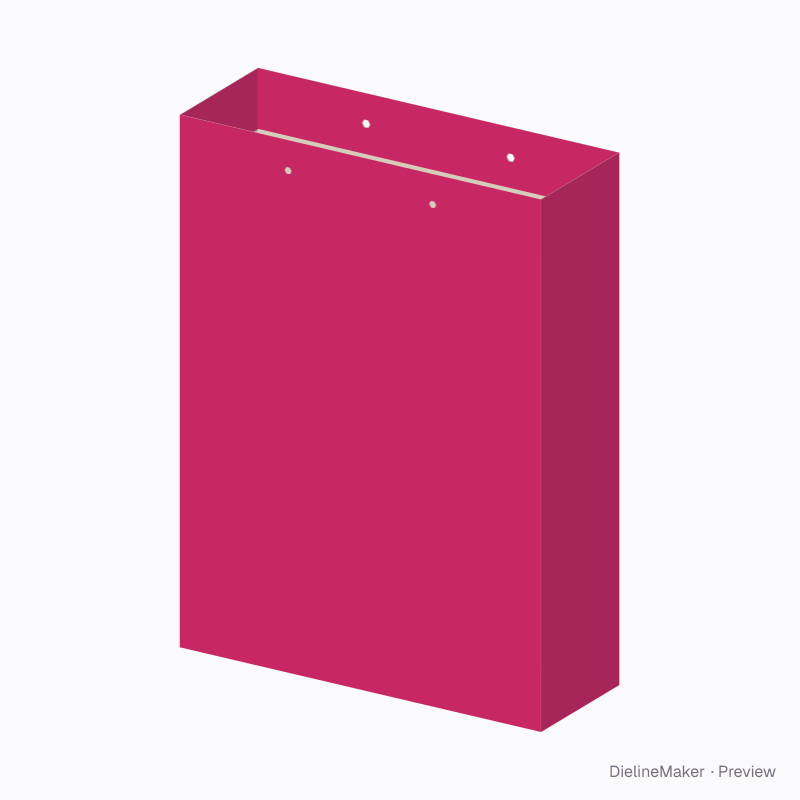

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureBags & pouches
Bookstore shopping bag dieline
260 × 90 × 350 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the paper shopping bag — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 90 × 350 mm
Outside260.3 × 90.3 × 350 mm
Flat blank720.5 × 445.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 260 · Gusset 90 · Height 350 mm
- Size range
- Width 80–600 · Gusset 40–250 · Height 100–700 mm
- Manufacturing
- 260.2 × 90.2 × 350 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.313 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170Kraft 350SBS 300SBS 18 pt
- Good for

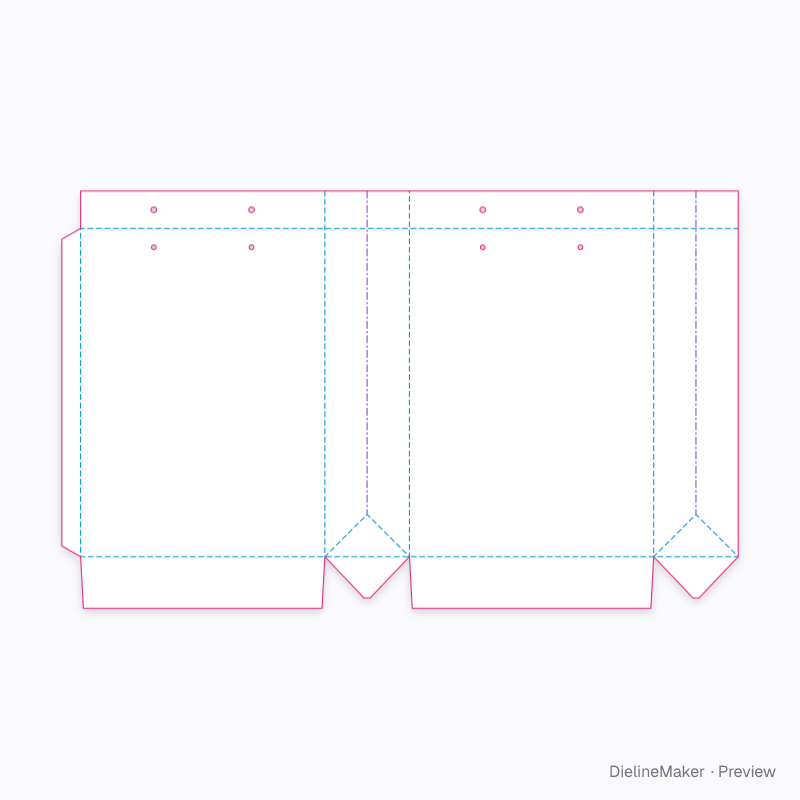

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 260.2 × 350 | W + T × H |
| Right gusset | 90.2 × 350 | G + T × H |
| Back | 260.2 × 350 | W + T × H |
| Left gusset | 90 × 350 | G × H |
| Glue flap | 20 × 350 | – × H |
| Top fold ×2 | 260.2 × 40 | L + T × – |
| Top fold | 90.2 × 40 | W + T × – |
| Top fold | 90 × 40 | W × – |
| Bottom gusset flap | 90.2 × 44.1 | W + T × – |
| Bottom gusset flap | 90 × 44.1 | W × – |
| Bottom flap ×2 | 260.2 × 55.1 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Handles9 options
- Fold-over topon / off
- Top foldmm
- Bottom overlapmm
The paper shopping bag family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bookstore shopping bag yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
