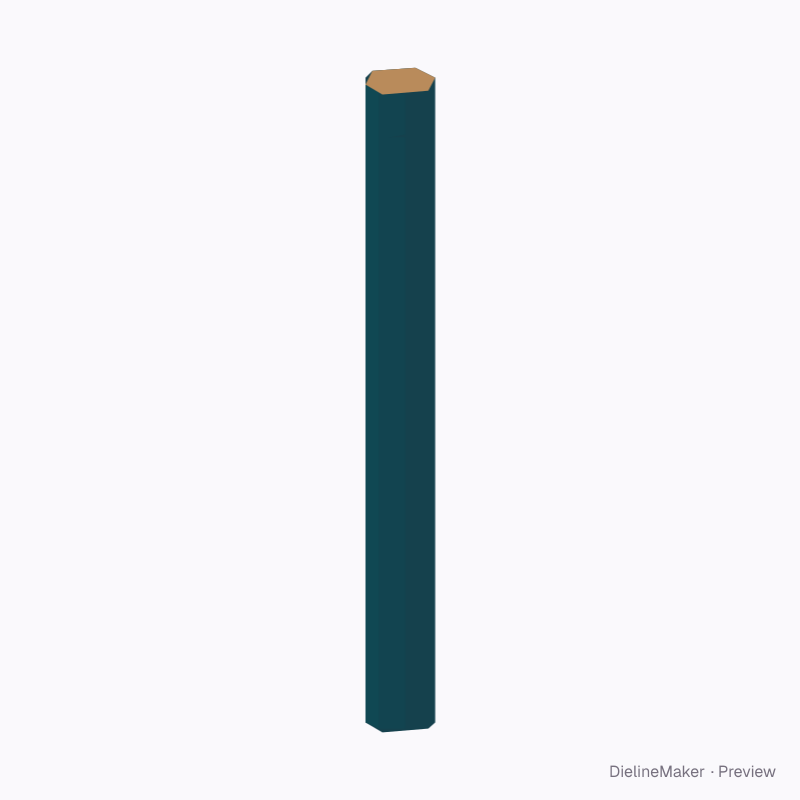

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
A1 print mailing tube label template
90 × 900 mm starting dimensions. Adjust to your actual container or product. A ready-sized preset of the paper tube — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 90 × 900 mm
Artwork area291.8 × 838 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 90 · Height 900 mm
- Size range
- Diameter 25–160 · Height 50–1000 mm
- Parts
- 3 parts — Body wrap, Lid wrap, Top label
- Artwork area
- 0.267 m²
- Good for

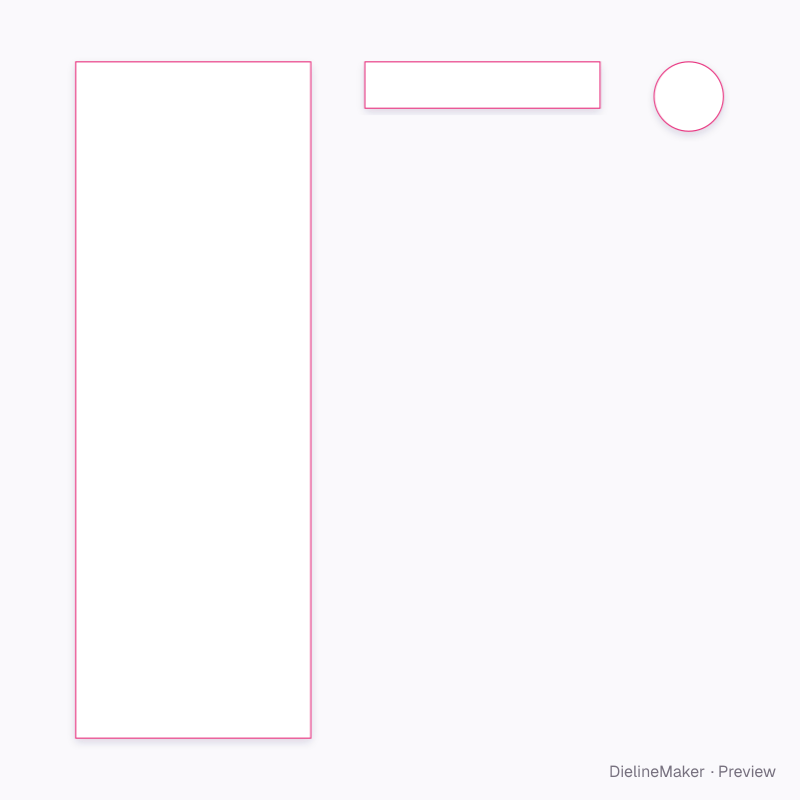

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Closure4 options
- Lid heightmm
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Lid wrapon / off
- Top labelon / off
- Tube board4 options
