Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels

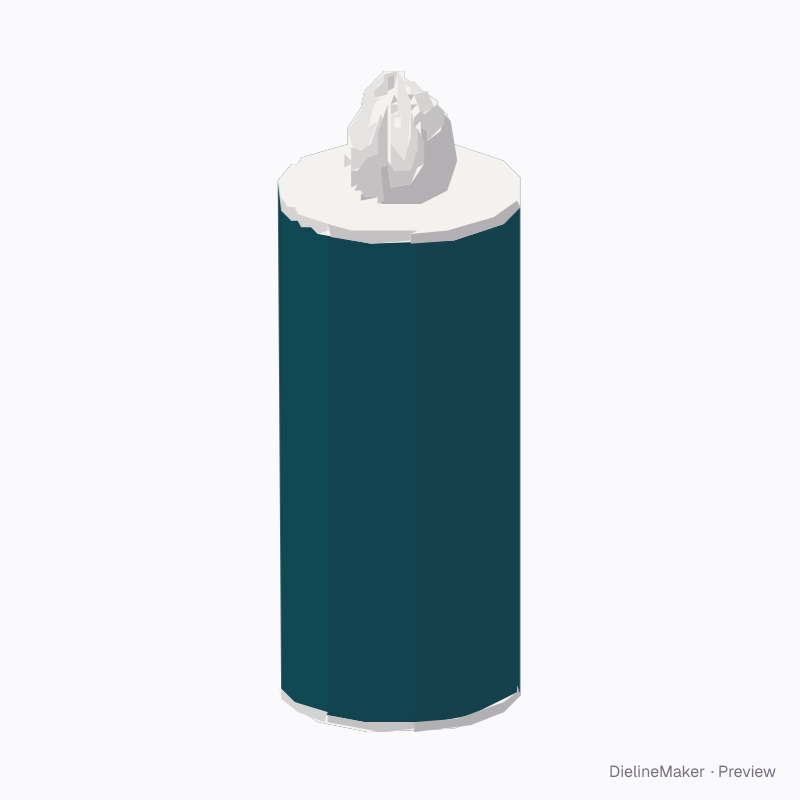

Cylindrical tissue dispenser label template
Round board canister with a centre aperture and a tissue pulled through: car and desk tissue tubes. A ready-sized preset of the paper tube — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 85 × 190 mm
Artwork area276 × 181 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 85 · Height 190 mm
- Size range
- Diameter 25–160 · Height 50–1000 mm
- Parts
- 2 parts — Tube wrap, Top ring label
- Artwork area
- 0.055 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Closure4 options
- Aperturemm
- Top ring labelon / off
- Tissue3 options
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Tube board4 options
The paper tube family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cylindrical tissue dispenser yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
