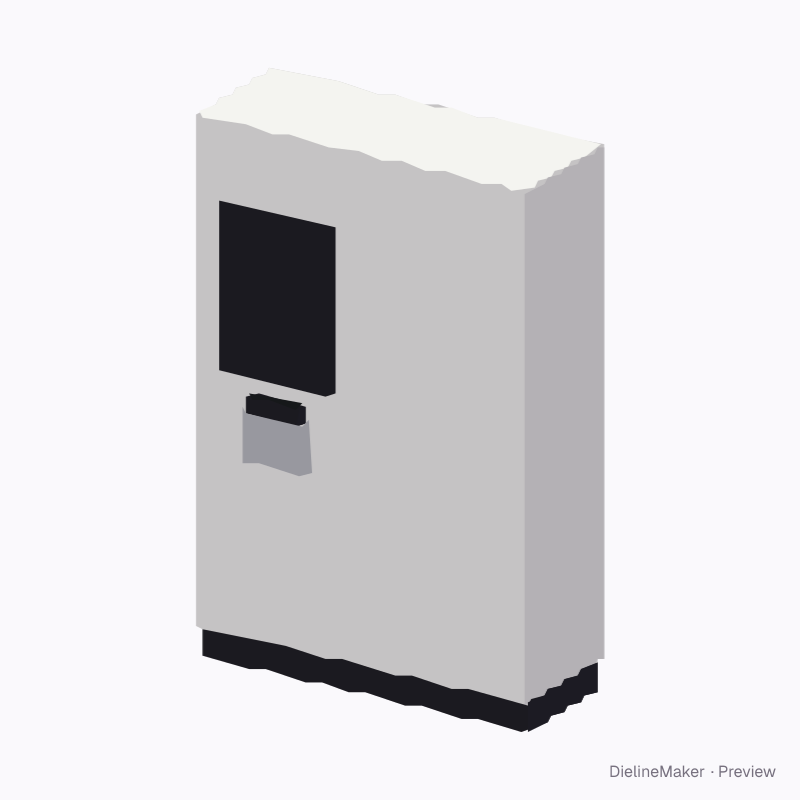

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PARCELLOCKER-01Apparel & merchandise
Compact indoor locker decoration template
A bank of parcel locker doors in mixed sizes with a kiosk screen column, printed front wrap, side panels, header and optional canopy. A ready-sized preset of the parcel pickup locker — adjust the object dimensions and decoration area to preview your artwork at size.
Object size1200 × 450 × 1800 mm
Artwork area1200 × 1700 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-PARCELLOCKER-01
- Object size
- Width 1200 · Depth 450 · Height 1800 mm
- Size range
- Width 900–6000 · Depth 400–900 · Height 1500–2400 mm
- Parts
- 4 parts — Front wrap (doors), Left side, Right side, Kiosk screen
- Artwork area
- 3.786 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Columnscount
- Kiosk column4 options
- Small-door rowscount
- Printed header fasciaon / off
- Rain canopyon / off
- Print side panelson / off
- Body6 options
The parcel pickup locker family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this compact indoor locker yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
