A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PARCELLOCKER-01Apparel & merchandise
Pickup locker, 4 columns with kiosk decoration template

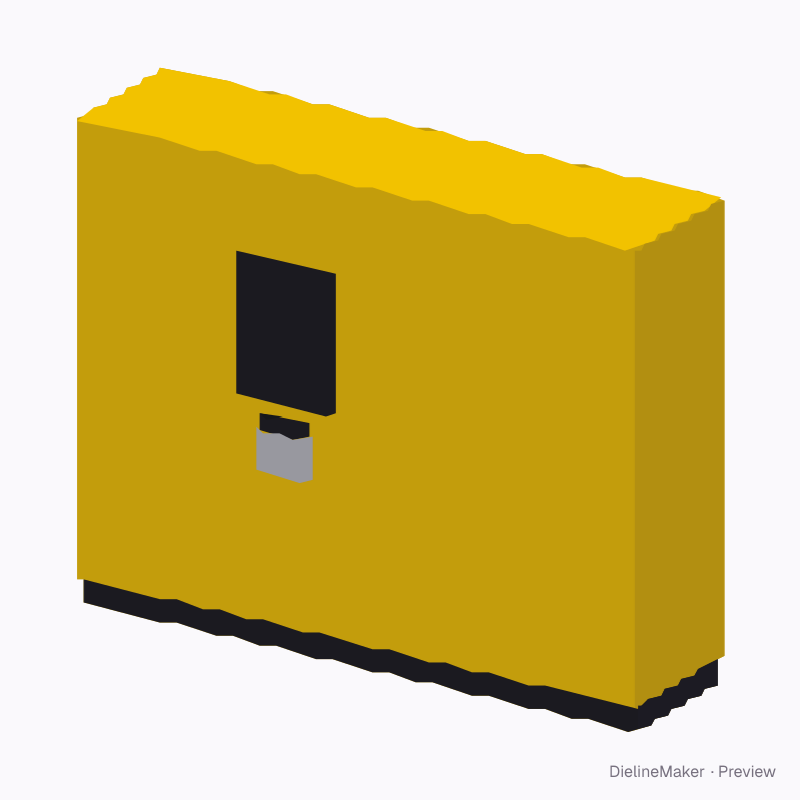

A bank of parcel locker doors in mixed sizes with a kiosk screen column, printed front wrap, side panels, header and optional canopy. A ready-sized preset of the parcel pickup locker — adjust the object dimensions and decoration area to preview your artwork at size.
Object size2400 × 600 × 1900 mm
Artwork area2400 × 1572 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-PARCELLOCKER-01
- Object size
- Width 2400 · Depth 600 · Height 1900 mm
- Size range
- Width 900–6000 · Depth 400–900 · Height 1500–2400 mm
- Parts
- 5 parts — Front wrap (doors), Header fascia, Left side, Right side, Kiosk screen
- Artwork area
- 6.696 m²
- Good for

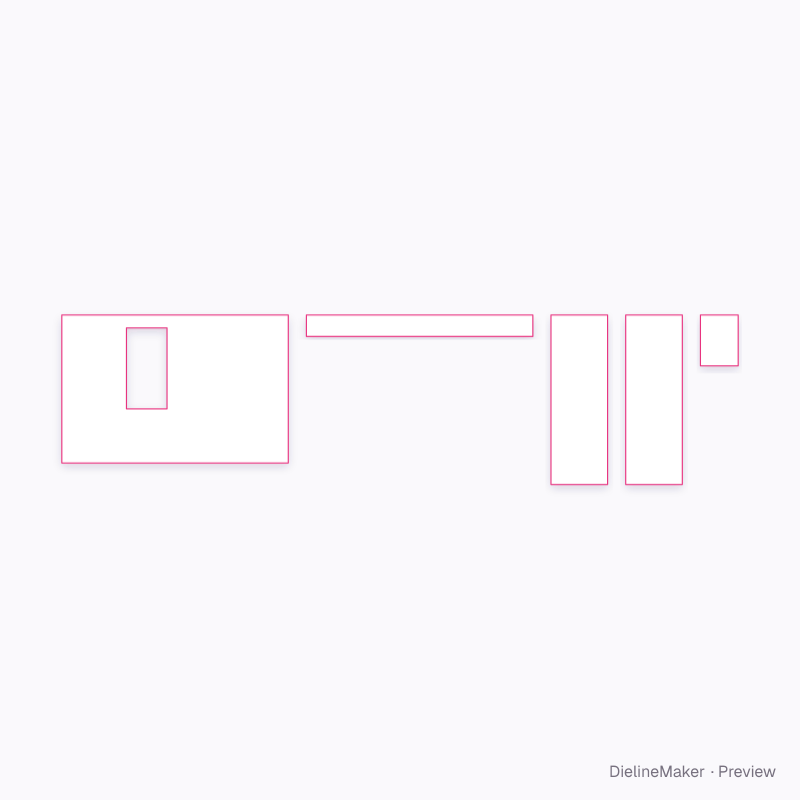

The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Columnscount
- Kiosk column4 options
- Small-door rowscount
- Printed header fasciaon / off
- Rain canopyon / off
- Print side panelson / off
- Body6 options
