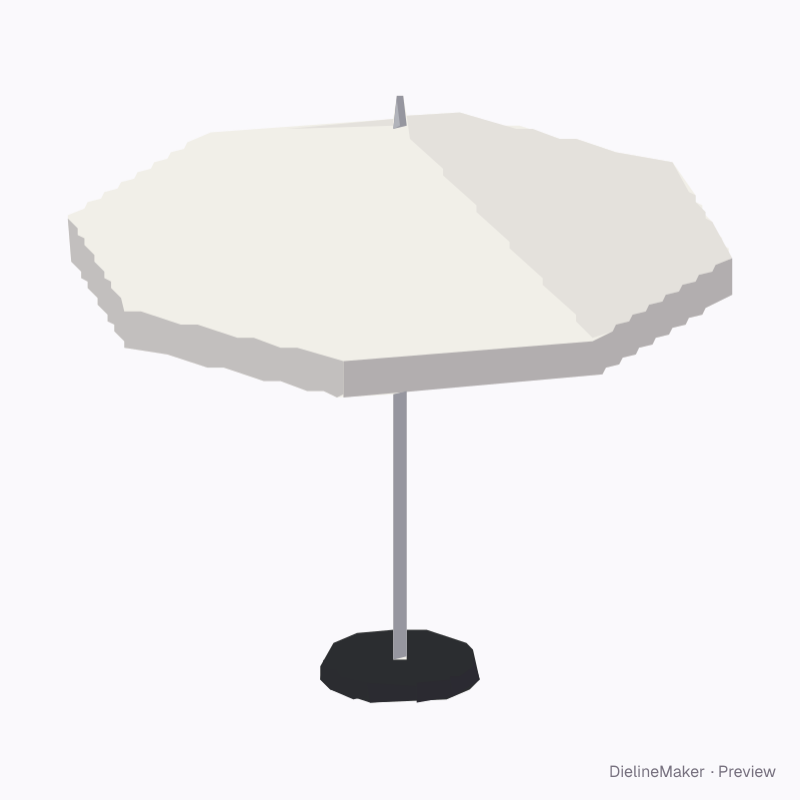

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PATIOUMB-01Apparel & merchandise
Market umbrella 2.7 m, 8 gores decoration template
A large round or square market parasol with a printed valance, on a centre pole and weighted base or hung from a cantilever arm. A ready-sized preset of the patio and market umbrella — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 2700 × 2500 mm
Artwork area8266 × 160 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-PATIOUMB-01
- Object size
- Canopy diameter / side 2700 · Overall height 2500 mm
- Size range
- Canopy diameter / side 1500–5000 · Overall height 1800–3200 mm
- Parts
- 2 parts — Gore (repeated x8), Valance (all round)
- Artwork area
- 2.014 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Canopy3 options
- Canopy rise%
- Valance depthmm
- Gore artwork2 options
- Support2 options
- Pole / frame4 options
The patio and market umbrella family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this market umbrella 2.7 m, 8 gores yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
