Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PETAL-WALLET-01Cards & tags
Oval gift card wallet dieline
120 × 100 mm wallet for gift cards with a pop-through tab. A ready-sized preset of the petal-lock wallet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 100 mm
Outside120 × 100 mm
Flat blank216 × 260 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PETAL-WALLET-01
- Inside size
- Width 120 · Height 100 mm
- Size range
- Width 50–300 · Height 50–300 mm
- Manufacturing
- 120 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.035 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300Kraft 350FBB 400GD2 350Paper 170SBS 18 pt
- Good for

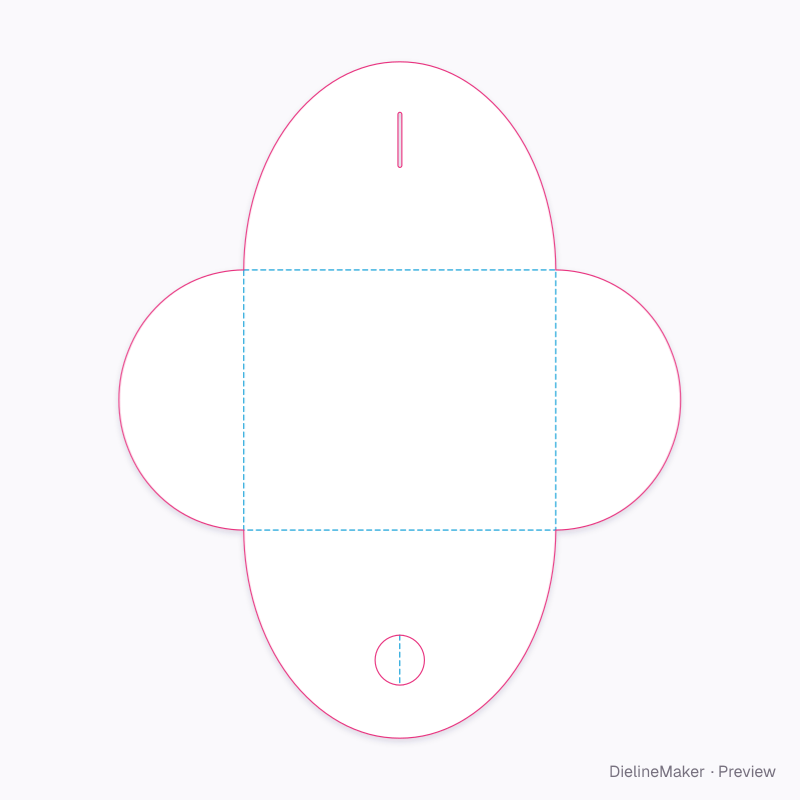

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PETAL-WALLET-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 120 × 100 | L × H |
| Left petal | 48 × 100 | – × H |
| Right petal | 48 × 100 | – × H |
| Lower petal | 120 × 80 | L × – |
| Upper petal | 120 × 80 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Upper petal depthmm
- Lower petal depthmm
- Side petal depthmm
- Tab radiusmm
- Tab positionmm
The petal-lock wallet family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this oval gift card wallet yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
