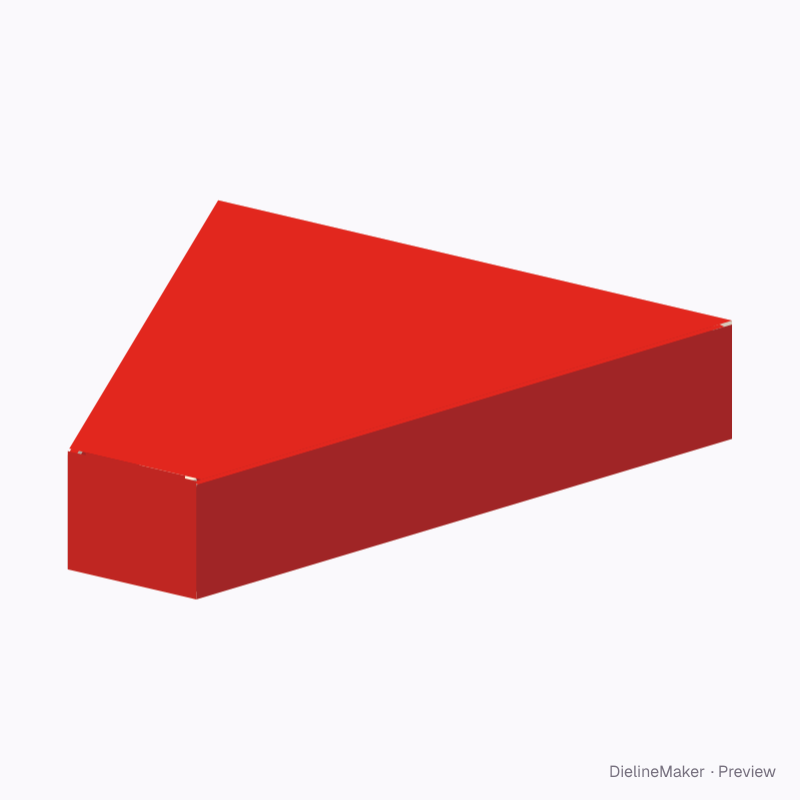

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Large pizza slice box dieline
About 9.8 × 9 × 2 in outside: one sixth of an 18 inch pie. A ready-sized preset of the pizza slice box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside245 × 215 × 47 mm
Outside248.2 × 232.5 × 50.2 mm
Flat blank405.4 × 629.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 245 · Width 215 · Height 47 mm
- Size range
- Length 80–400 · Width 60–350 · Height 20–120 mm
- Manufacturing
- 246.6 × 230.8 × 48.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.163 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WF-fluteKraft 350SBS 350Food kraft PEFood SBS PESBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 230.8 × 246.6 | W + 9T / cos ψ × L + T |
| Nose wall | 57.7 × 48.6 | – × H + T |
| Back wall | 230.8 × 48.6 | – × H + T |
| Corner ear ×2 | 29.6 × 43.8 | – × H − 2T |
| Corner ear ×2 | 47 × 43.8 | H × H − 2T |
| Left side | 47 × 261.4 | H × – |
| Left side roll | 3.2 × 256.8 | – |
| Left side (inside) | 47 × 256.8 | H × – |
| Right side | 47 × 261.4 | H × – |
| Right side roll | 3.2 × 256.8 | – |
| Right side (inside) | 47 × 256.8 | H × – |
| Lid | 230.8 × 244.2 | W + 9T / cos ψ × L − T/2 |
| Lid ear ×2 | 45.4 × 253.7 | H − T × – |
| Front tuck | 44.8 × 41.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Nose widthmm
- Front tuck depthmm
- Lid ear depthmm
- Lock tonguescount
- Lid windowon / off
