Parametric structureFood
Pizza slice box dieline
A wedge-shaped box for one slice: rolled side walls lock the corner ears from the crust and nose walls, and the hinged lid tucks in behind the nose. No glue, ships flat. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside230 × 180 × 42 mm
Outside233.2 × 197.3 × 45.2 mm
Flat blank353.7 × 584.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 230 · Width 180 · Height 42 mm
- Size range
- Length 80–400 · Width 60–350 · Height 20–120 mm
- Manufacturing
- 231.6 × 195.6 × 43.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.132 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WF-fluteKraft 350SBS 350Food kraft PEFood SBS PESBS 18 pt
- Good for

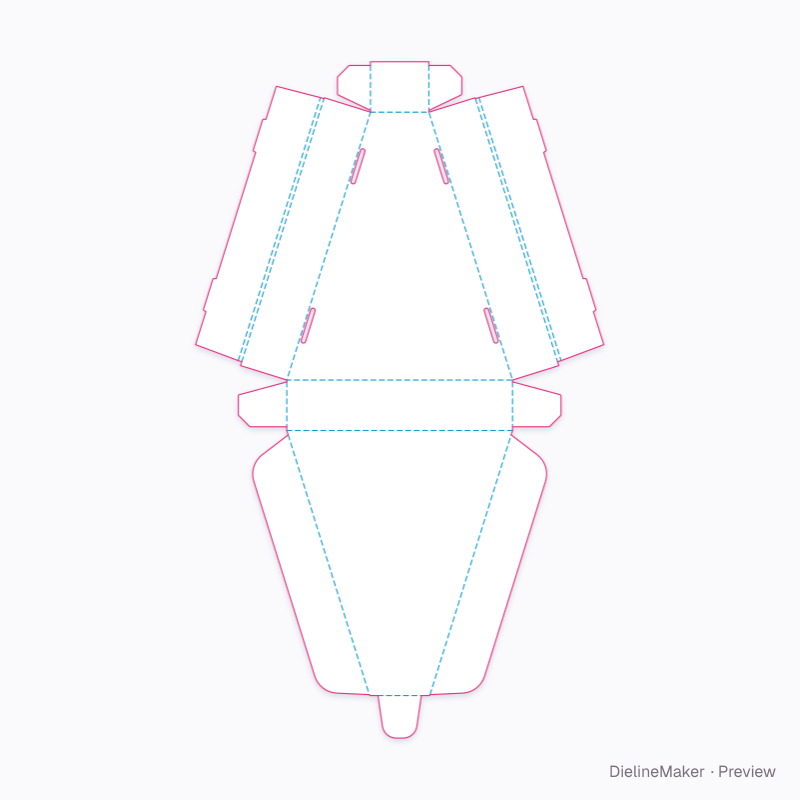

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 195.6 × 231.6 | W + 9T / cos ψ × L + T |
| Nose wall | 50.6 × 43.6 | – × H + T |
| Back wall | 195.6 × 43.6 | – × H + T |
| Corner ear ×2 | 28.6 × 38.8 | – × H − 2T |
| Corner ear ×2 | 42 × 38.8 | H × H − 2T |
| Left side | 42 × 242.7 | H × – |
| Left side roll | 3.2 × 238.2 | – |
| Left side (inside) | 42 × 238.2 | H × – |
| Right side | 42 × 242.7 | H × – |
| Right side roll | 3.2 × 238.2 | – |
| Right side (inside) | 42 × 238.2 | H × – |
| Lid | 195.6 × 229.2 | W + 9T / cos ψ × L − T/2 |
| Lid ear ×2 | 40.4 × 235.4 | H − T × – |
| Front tuck | 37.7 × 36.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Nose widthmm
- Front tuck depthmm
- Lid ear depthmm
- Lock tonguescount
- Lid windowon / off
