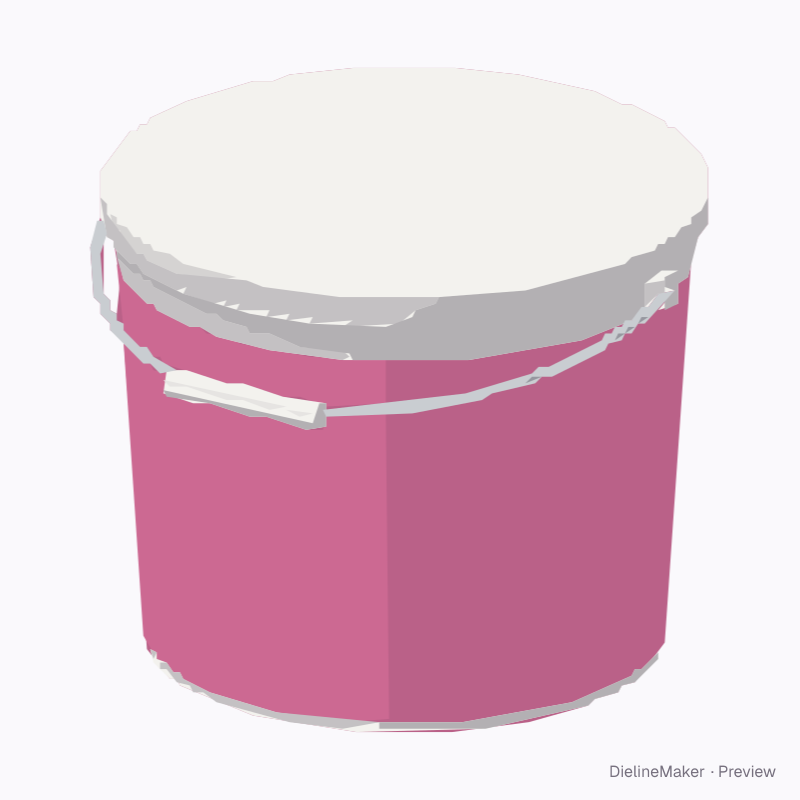

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Catering ice cream pail 5 L label template
Tapered plastic pail with a removable snap lid and a pivoted carry handle. Exports the conical body wrap and round lid label. Preset capacities are nominal starting points; confirm dimensions with your container supplier. A ready-sized preset of the handled plastic pail — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 220 × 170 mm
Artwork area660.1 × 196.8 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Rim diameter 220 · Body height 170 mm
- Size range
- Rim diameter 100–380 · Body height 55–400 mm
- Parts
- 2 parts — Pail body label, Lid label
- Artwork area
- 0.125 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 14 options; the template and 3D preview follow each change.
- Base diametermm
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Pail3 options
- Lid2 options
- Lid colour3 options
- Lid labelon / off
- Lid label sizemm
- Contents5 options
- Carry handleon / off
- Raise handleon / off
- Tamper-evident bandon / off
The handled plastic pail family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this catering ice cream pail 5 l yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
