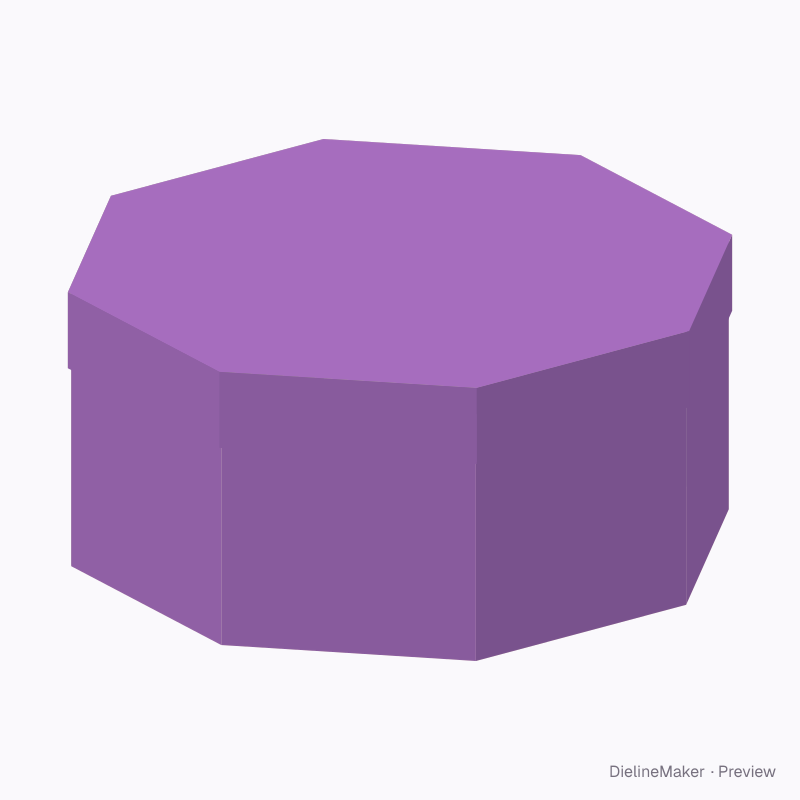

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Octagon celebration box dieline
A polygon gift base with three to twelve independent drop sides, held upright by a fitted lift-off lid. Opening the lid lets every unglued side lie flat for a message or photo reveal. A ready-sized preset of the polygon explosion gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside230 × 230 × 100 mm
Outside231 × 231 × 101 mm
Flat blank416.2 × 416.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 230 · Length 230 · Height 100 mm
- Size range
- Width 80–350 · Length 80–350 · Height 20–100 mm
- Manufacturing
- 230.5 × 230.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Polygon tray & lid lid, Polygon drop-side base
- Board area
- 0.168 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Polygon tray & lid lidPolygon tray & lid lid | 169.2 × 100 | – × H |
| Polygon tray & lid wall ×4Polygon tray & lid lid | 28 × 89.1 | – |
| Corner glue tab ×4Polygon tray & lid lid | 17.7 × 7.8 | – |
| Polygon tray & lid wall ×4Polygon tray & lid lid | 89.1 × 28 | – |
| Corner glue tab ×4Polygon tray & lid lid | 7.8 × 17.7 | – |
| Pose rigPolygon tray & lid lid | 46 × 100 | – × H |
| Polygon tray & lid floorPolygon drop-side base | 230.5 × 230.5 | – |
| Polygon tray & lid wall ×4Polygon drop-side base | 88.2 × 100.5 | – × H + T |
| Polygon tray & lid wall ×4Polygon drop-side base | 100.5 × 88.2 | H + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid depthmm
- Number of sidescount
