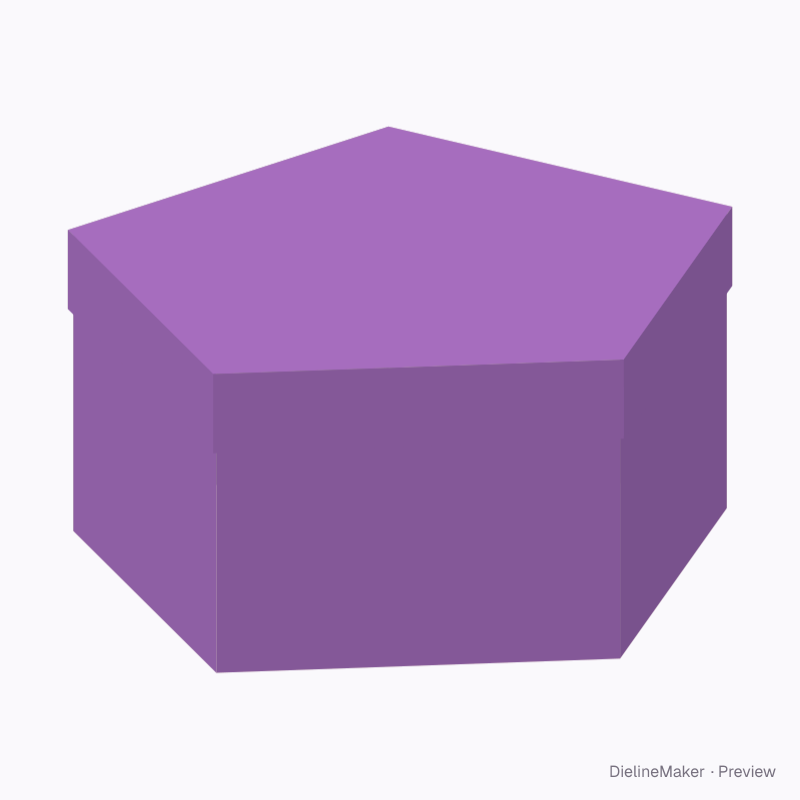

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTrays & lids
Five-sided surprise box dieline
A polygon gift base with three to twelve independent drop sides, held upright by a fitted lift-off lid. Opening the lid lets every unglued side lie flat for a message or photo reveal. A ready-sized preset of the polygon explosion gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 150 × 75 mm
Outside151 × 151 × 76 mm
Flat blank294.8 × 286.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 150 · Length 150 · Height 75 mm
- Size range
- Width 80–350 · Length 80–350 · Height 20–100 mm
- Manufacturing
- 150.5 × 150.5 × 75.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Polygon tray & lid lid, Polygon drop-side base
- Board area
- 0.078 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
