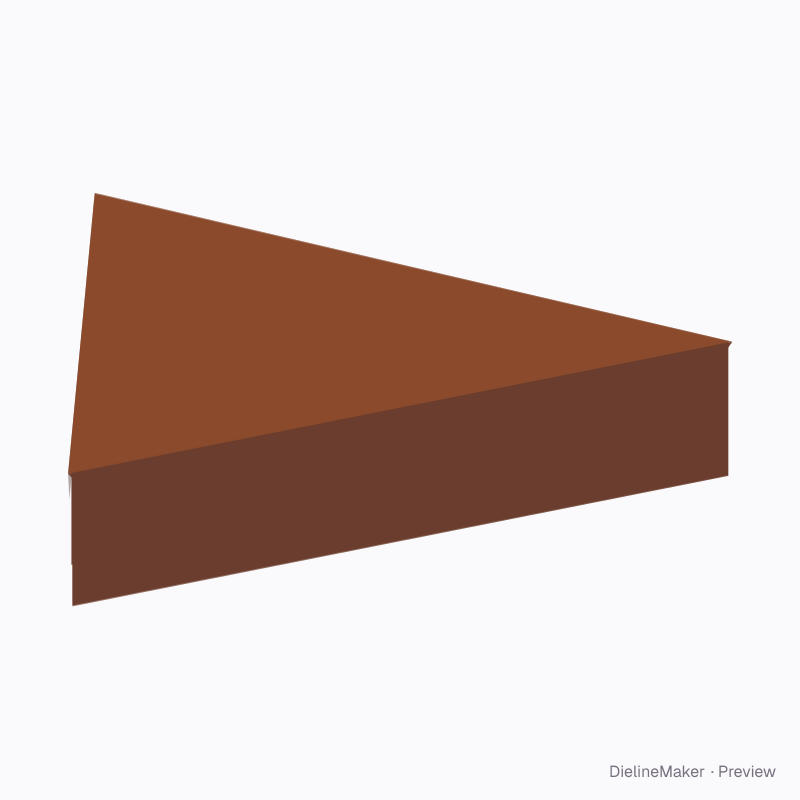

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-POLY-HINGED-CLAMSHELL-01Shapes
Triangle hinged folio box dieline
A three to eight-sided tray and its matching lid on one blank: the lid hinges on the back wall and closes with skirts over the walls or a front tuck. Unequal length and width give elongated or chamfered footprints. A ready-sized preset of the polygon hinged clamshell — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 156 × 35 mm
Outside183 × 159 × 36 mm
Flat blank244.9 × 375.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-POLY-HINGED-CLAMSHELL-01
- Inside size
- Width 180 · Depth 156 · Height 35 mm
- Size range
- Width 50–450 · Depth 50–450 · Height 15–150 mm
- Manufacturing
- 180.5 × 156.5 × 35.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.052 m² · about 7 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WE-flute KFood kraft PESBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-POLY-HINGED-CLAMSHELL-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Floor | 180.5 × 156.5 | L + T × W + T |
| Wall ×2 | 35.5 × 180.7 | H + T × – |
| Corner glue tab ×2 | 24.4 × 10.7 | – |
| Back wall | 180.5 × 35.5 | L + T × H + T |
| Corner glue tab | 10.7 × 24.3 | – |
| Lid | 180.5 × 158.5 | L + T × – |
| Lid skirt ×2 | 10.5 × 183 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Number of sidescount
- Front closure2 options
- Lid skirt depthmm
- Lid windowon / off
