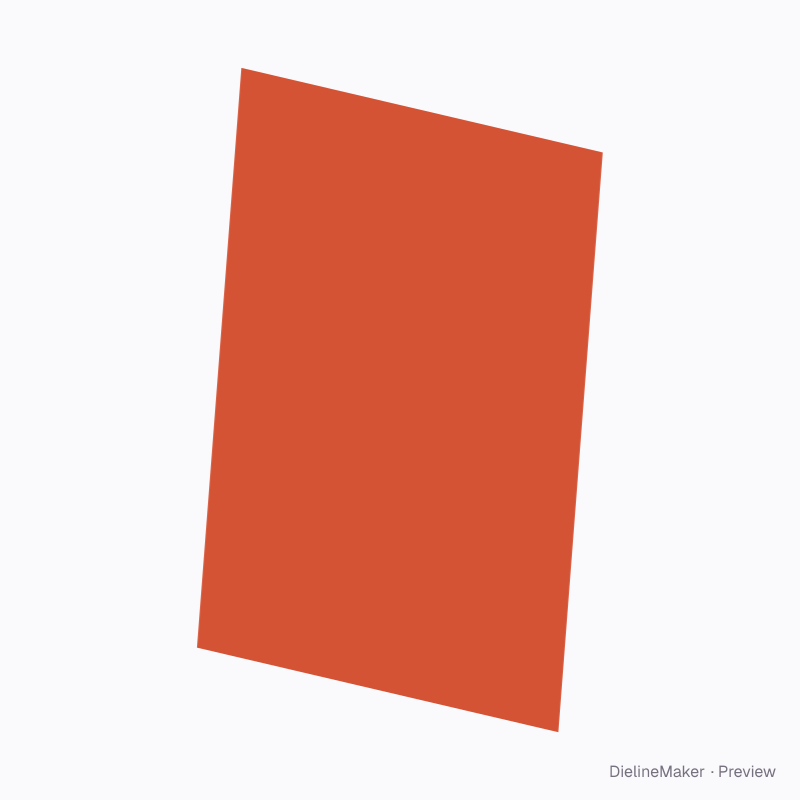

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Poster dieline
A flat poster with an exact trim outline and bleed. Resize a metric or US sheet and edit the artwork on either side; there are no folding or packaging panels. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside297 × 420 mm
Outside297 × 420 mm
Flat blank297 × 420 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Trim width 297 · Trim height 420 mm
- Size range
- Trim width 25–1500 · Trim height 25–1800 mm
- Manufacturing
- 297 × 420 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.125 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Torn presentation4 options
- Tear depthmm
- Tear patterncount
- Corner lift°
- Wooden poster hangeron / off
- Loose sheet curl5 options
- Curled bandmm
- Curl angle°

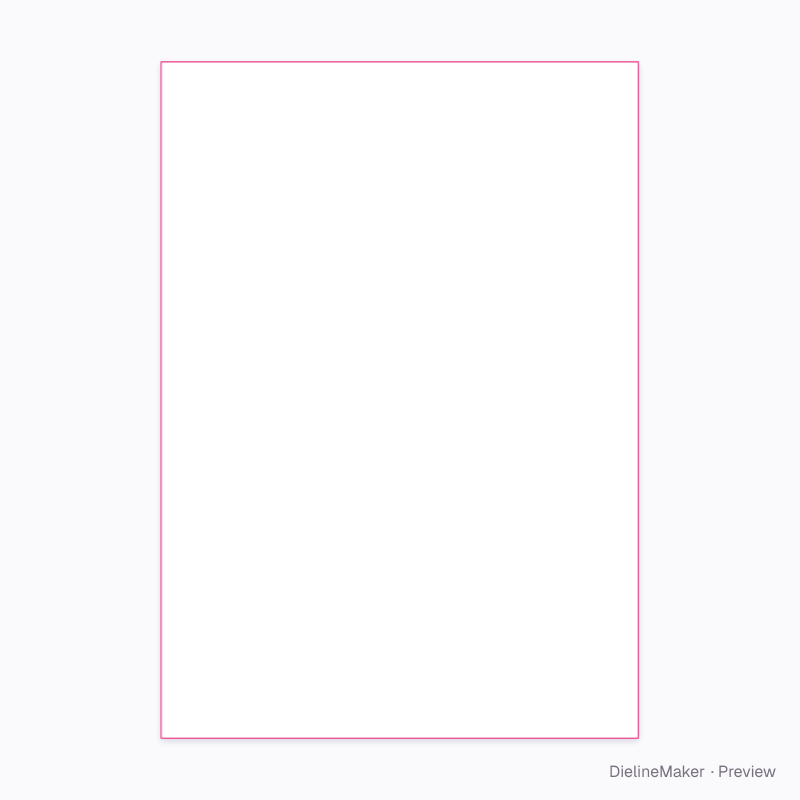

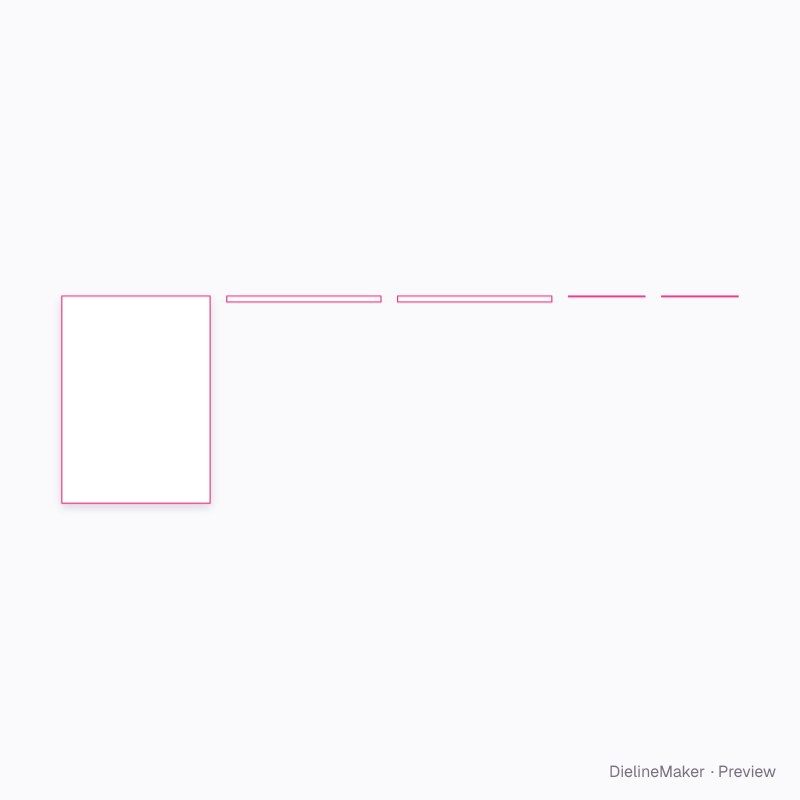

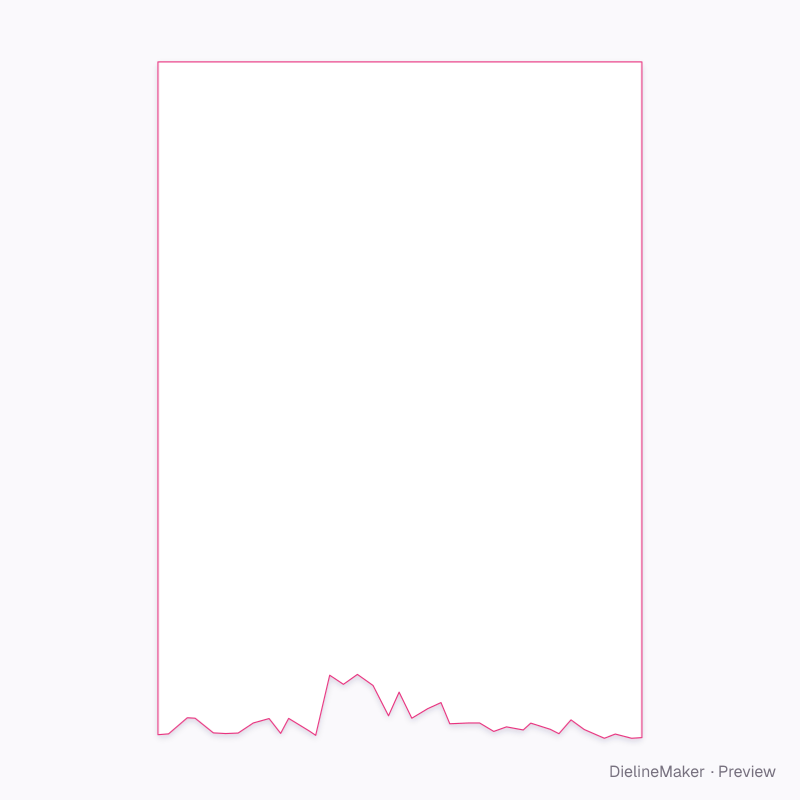

Ready-sized poster presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this poster yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
