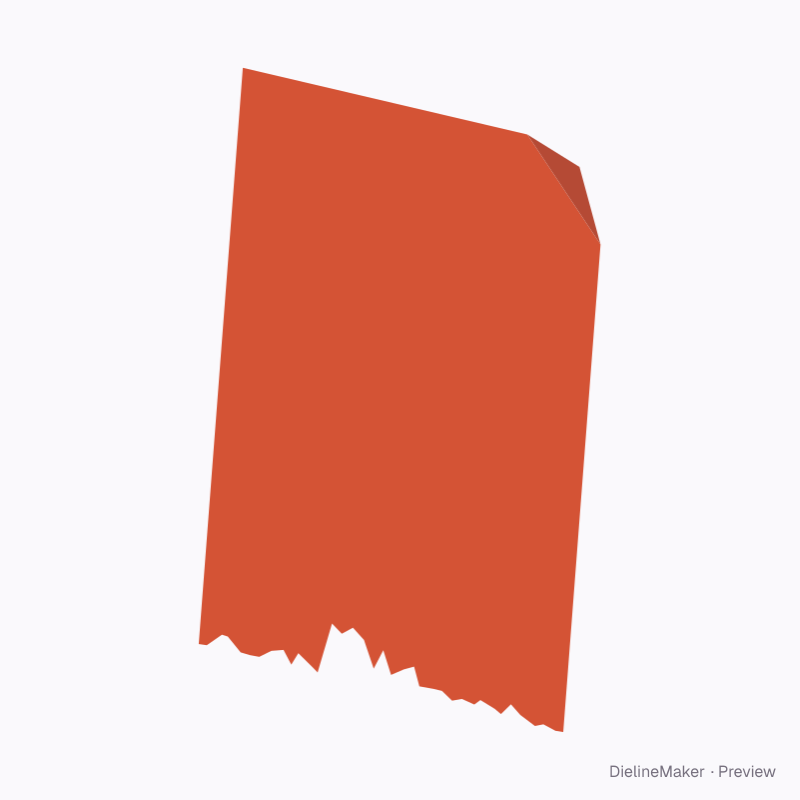

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
Torn street poster dieline
A flat poster with an exact trim outline and bleed. Resize a metric or US sheet and edit the artwork on either side; there are no folding or packaging panels. A ready-sized preset of the poster — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside297 × 420 mm
Outside297 × 420 mm
Flat blank297 × 415.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Trim width 297 · Trim height 420 mm
- Size range
- Trim width 25–1500 · Trim height 25–1800 mm
- Manufacturing
- 297 × 420 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.120 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Printed face | 297 × 415.1 | L × – |
| Lifted torn corner | 92.4 × 46.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Torn presentation4 options
- Tear depthmm
- Tear patterncount
- Corner lift°
- Wooden poster hangeron / off
- Loose sheet curl5 options
- Curled bandmm
- Curl angle°
