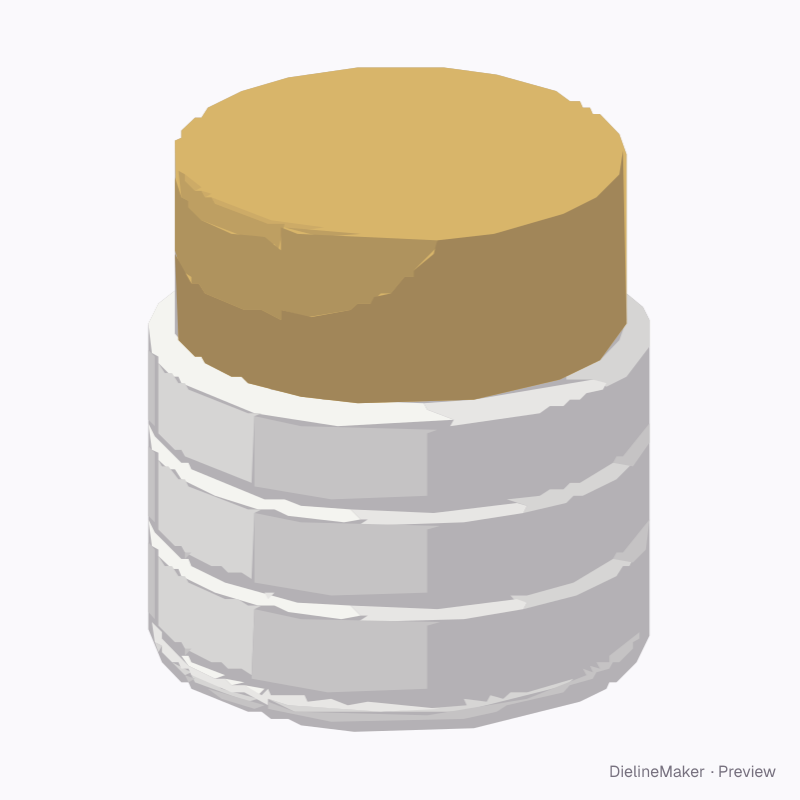

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PROFJAR-01Labels
Profiled round jar dieline
A round jar with a selectable wall profile — straight, moulded bands, waisted, bulged or tapered — and a flat or dome screw cap. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
InsideØ 70 × 75 mm
OutsideØ 70 × 75 mm
Flat blank219.9 × 36.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PROFJAR-01
- Inside size
- Body diameter 70 · Height with cap 75 mm
- Size range
- Body diameter 25–160 · Height with cap 20–220 mm
- Manufacturing
- Ø 70 × 75 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Body label, Cap top
- Board area
- 0.011 m² · about 69 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170
- Good for

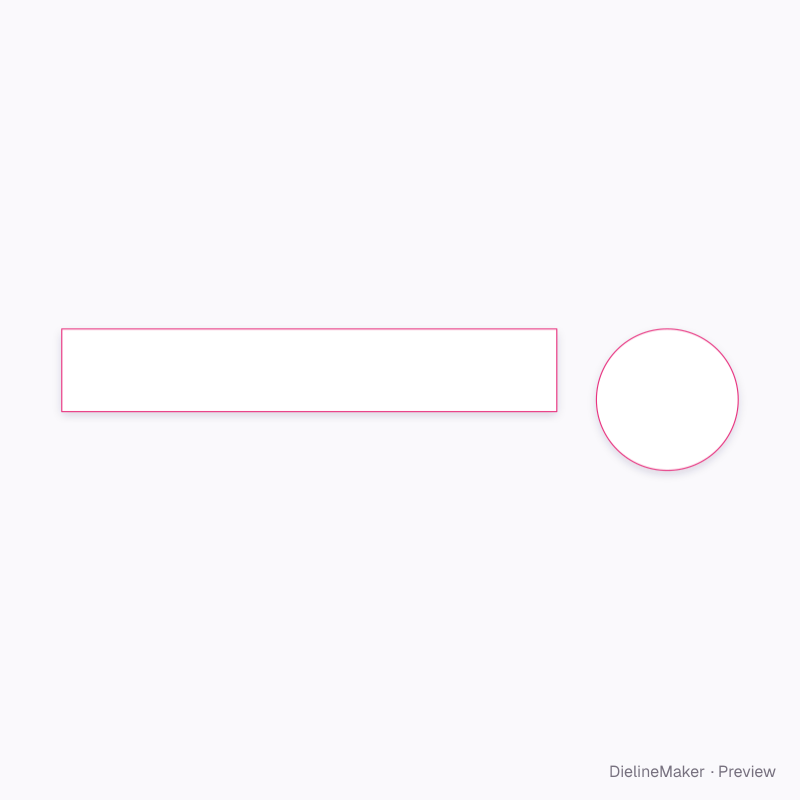

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Wall profile5 options
- Bandscount
- Profile depth%
- Cap height%
- Cap4 options
- Cover4 options
- Jar3 options
- Jar colour5 options
- Cap colour5 options
