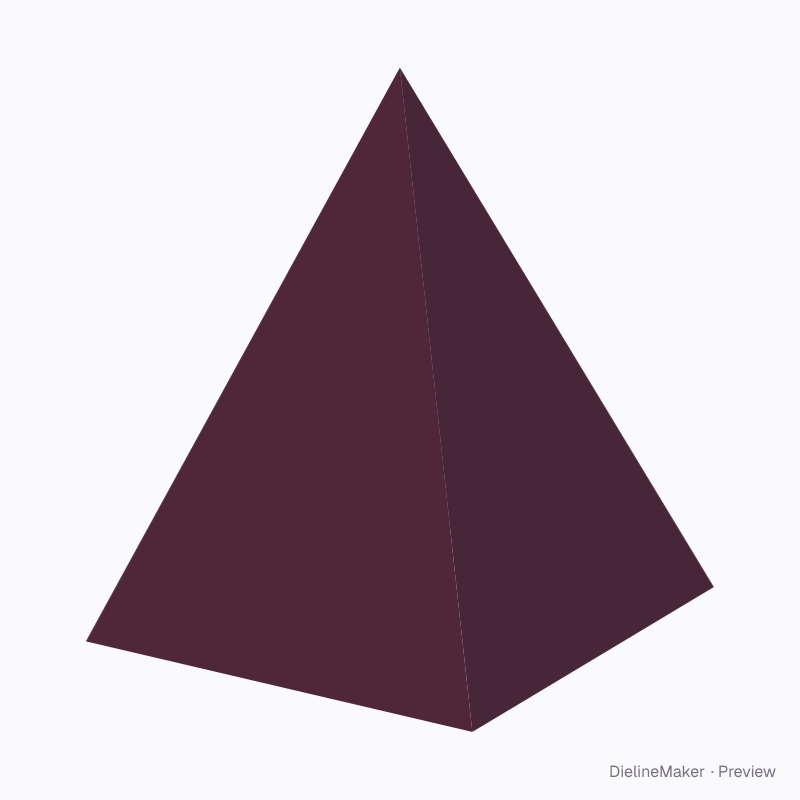

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PYRAMID-01Shapes
Easter egg pyramid dieline
Gift pyramid for a 100 g chocolate egg. A ready-sized preset of the pyramid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 130 mm
Outside101.2 × 101.2 × 131.2 mm
Flat blank306.5 × 294.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PYRAMID-01
- Inside size
- Base length 100 · Base width 100 · Height 130 mm
- Size range
- Base length 30–300 · Base width 30–300 · Height 20–400 mm
- Manufacturing
- 100.6 × 100.6 × 130.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.051 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PYRAMID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 100.6 × 100.6 | L + T × W + T |
| Front face | 100.6 × 139.4 | L + T × √(H² + (W/2)²) |
| Right face | 94.6 × 148.2 | W + T × √(H² + (L/2)²) |
| Back face | 148.2 × 94.6 | – |
| Left face | 94.6 × 148.2 | – |
| Glue flap | 148.2 × 12 | – |
| Dust flap ×2 | 100.6 × 48.3 | – |
| Base tuck | 99.4 × 20 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
The pyramid box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this easter egg pyramid yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
