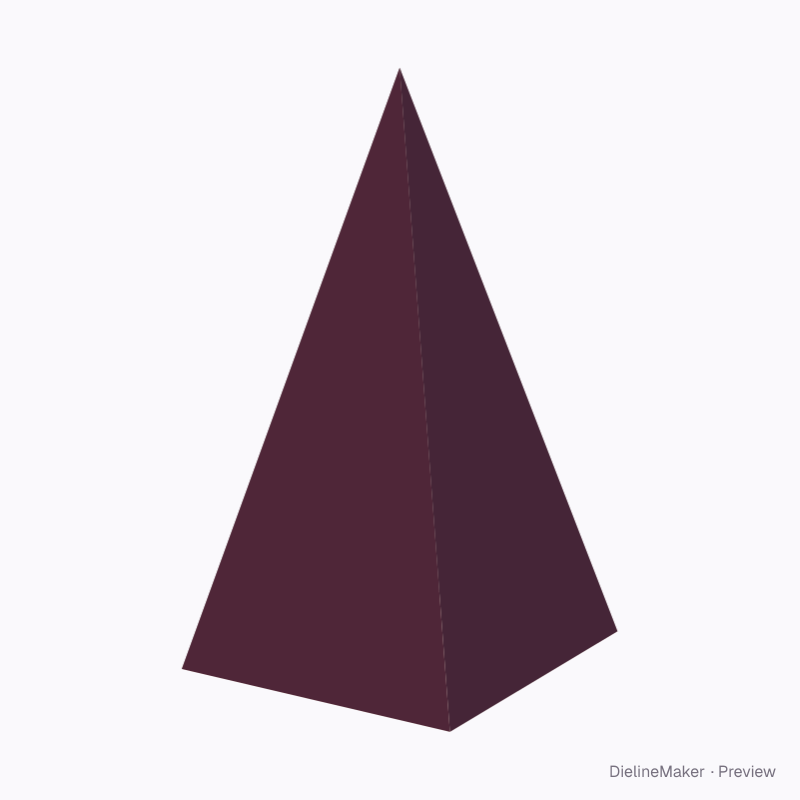

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PYRAMID-01Shapes
Tall gift pyramid dieline
Tall and slim, for display. A ready-sized preset of the pyramid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside80 × 80 × 160 mm
Outside81.2 × 81.2 × 161.2 mm
Flat blank282.8 × 265.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PYRAMID-01
- Inside size
- Base length 80 · Base width 80 · Height 160 mm
- Size range
- Base length 30–300 · Base width 30–300 · Height 20–400 mm
- Manufacturing
- 80.6 × 80.6 × 160.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.042 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PYRAMID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 80.6 × 80.6 | L + T × W + T |
| Front face | 80.6 × 165 | L + T × √(H² + (W/2)²) |
| Right face | 78.3 × 169.8 | W + T × √(H² + (L/2)²) |
| Back face | 78.3 × 169.8 | – |
| Left face | 78.3 × 169.8 | – |
| Glue flap | 169.8 × 12 | – |
| Dust flap ×2 | 80.6 × 38.3 | – |
| Base tuck | 79.4 × 20 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Tuck depthmm
- Slit lockon / off
