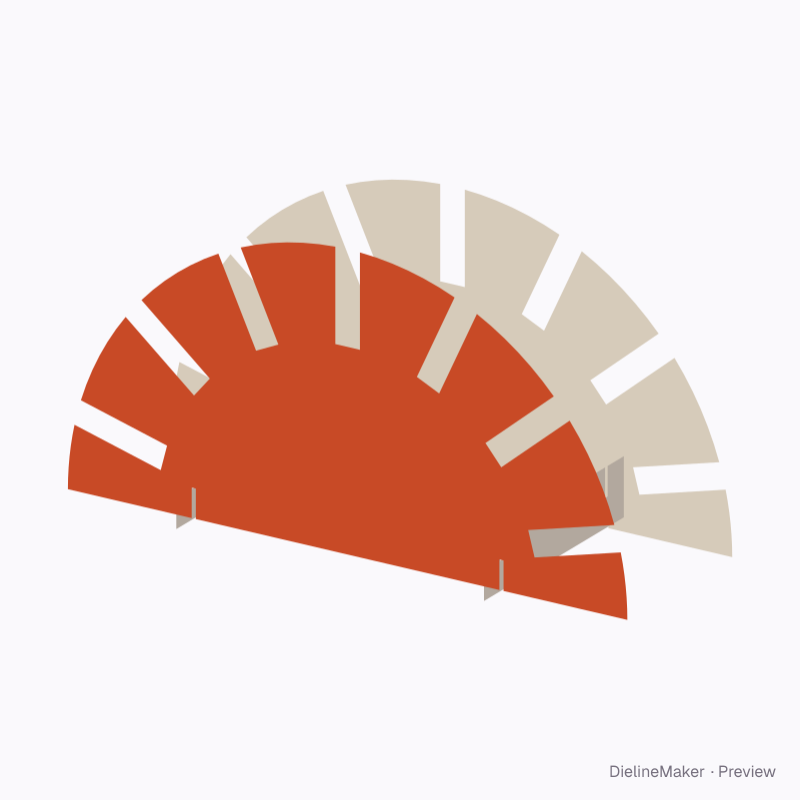

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RADIAL-BOOK-RACK-01Display
Desk fan book rack dieline
Two semicircular boards with radial slots that fan books round the arc, tied by notched spacers. A ready-sized preset of the radially slotted book rack — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside500 × 150 × 80 mm
Outside506.4 × 156.4 × 86.4 mm
Flat blank263.6 × 499.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RADIAL-BOOK-RACK-01
- Inside size
- Rack width (diameter) 500 · Depth between boards 150 · Slot depth 80 mm
- Size range
- Rack width (diameter) 200–1200 · Depth between boards 60–400 · Slot depth 20–300 mm
- Manufacturing
- 503.2 × 153.2 × 83.2 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Front board, Back board, Spacer 1, Spacer 2
- Board area
- 0.191 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WFBB 400
- Good for

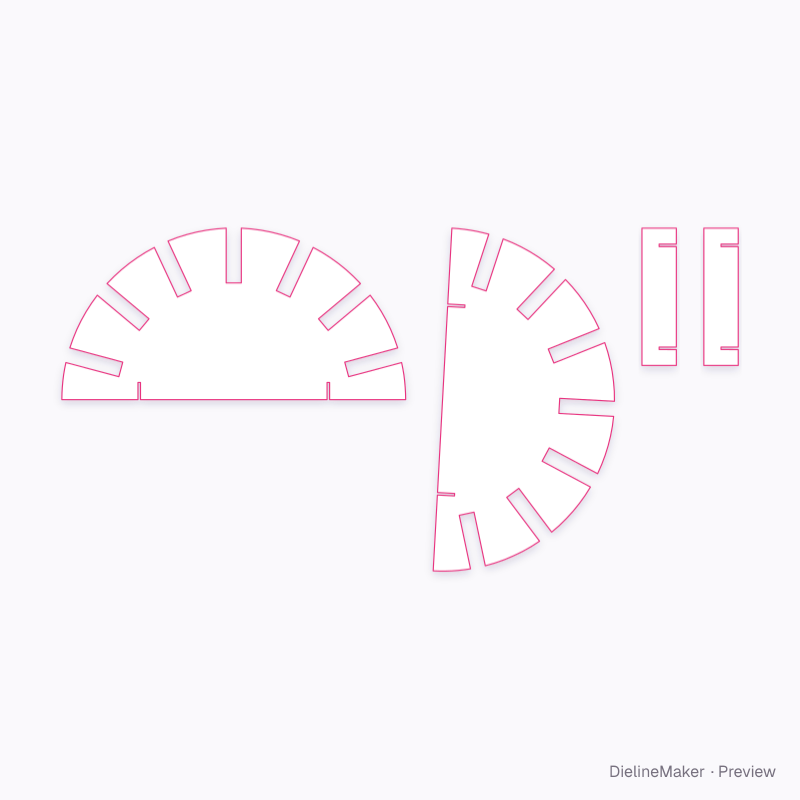

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Book slotscount
- Slot widthmm

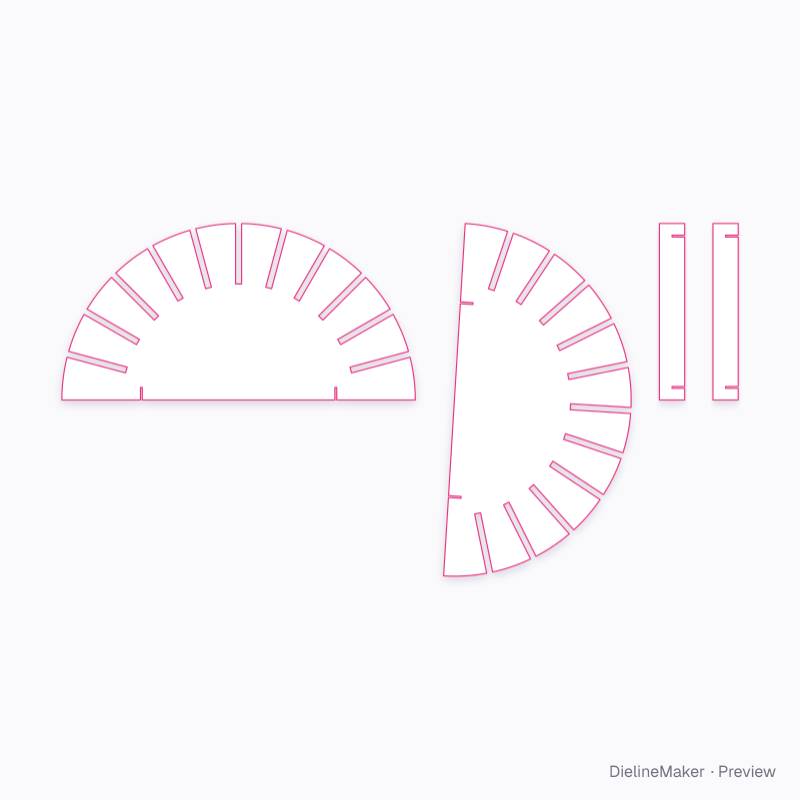

The radially slotted book rack family
The same structure with sizes, boards and options set for a use.
