DM-TURTLE-HOLDER-01Display
Slotted board turtle pencil holder dieline
A cardboard turtle that holds pencils: two cross-slotted figure plates lock a base and an oval shell drilled with pencil holes. A parametric template — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside160 × 120 × 80 mm
Outside163.2 × 123.2 × 83.2 mm
Flat blank120.2 × 159.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TURTLE-HOLDER-01
- Inside size
- Shell length 160 · Shell width 120 · Shell height 80 mm
- Size range
- Shell length 80–400 · Shell width 60–300 · Shell height 40–250 mm
- Manufacturing
- 161.6 × 121.6 × 81.6 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Side profile (head and tail, slotted from the top), Cross profile (legs, slotted from the bottom), Shell with pencil holes, Base
- Board area
- 0.055 m² · about 32 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteChipboard 2
- Good for
The flat dieline

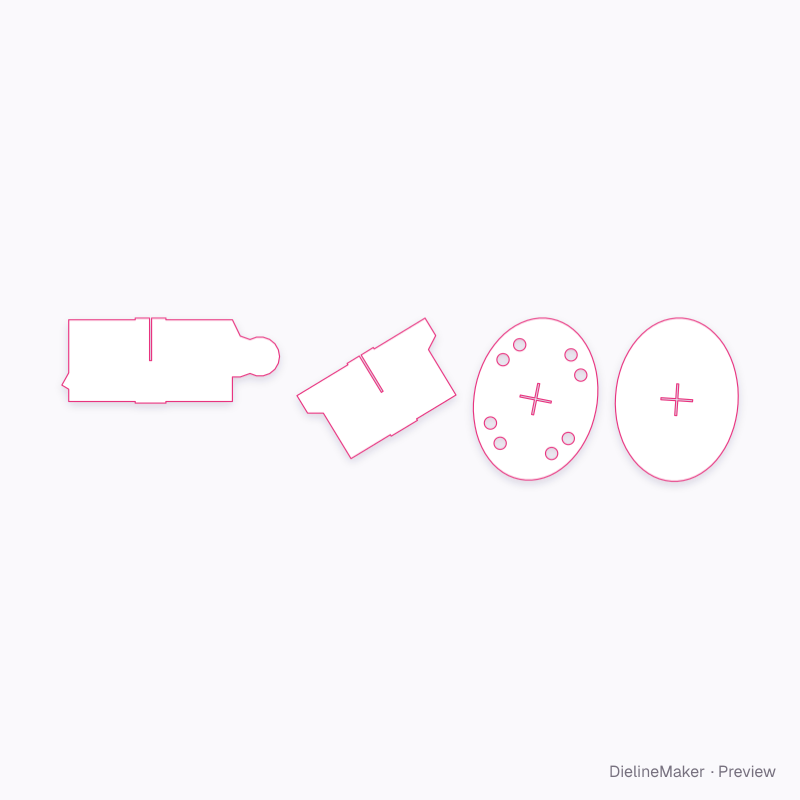

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Pencil holes per quartercount
- Pencil hole diametermm

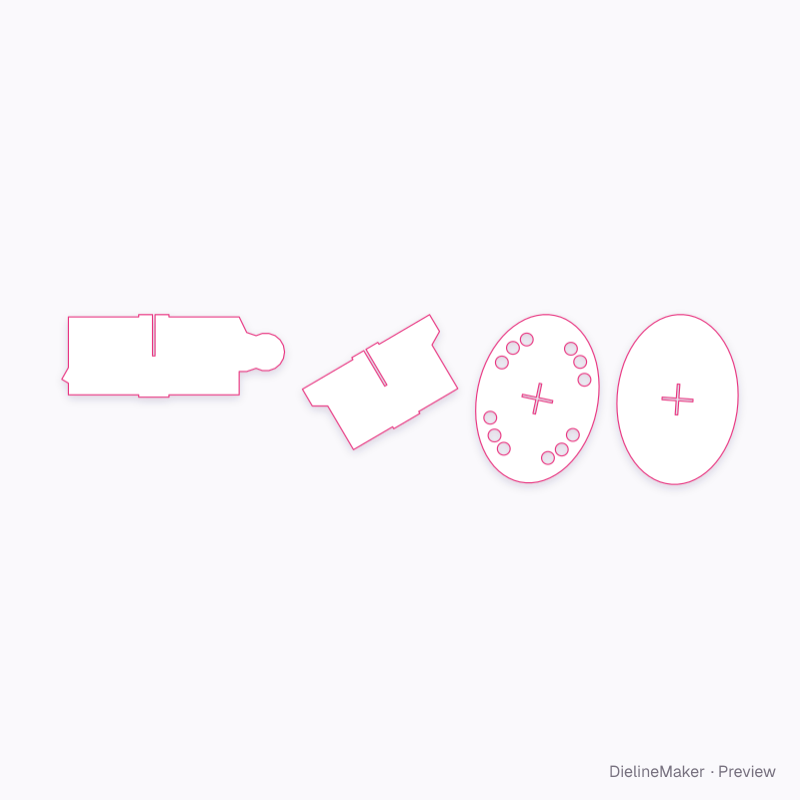

Ready-sized slotted board turtle pencil holder presets
