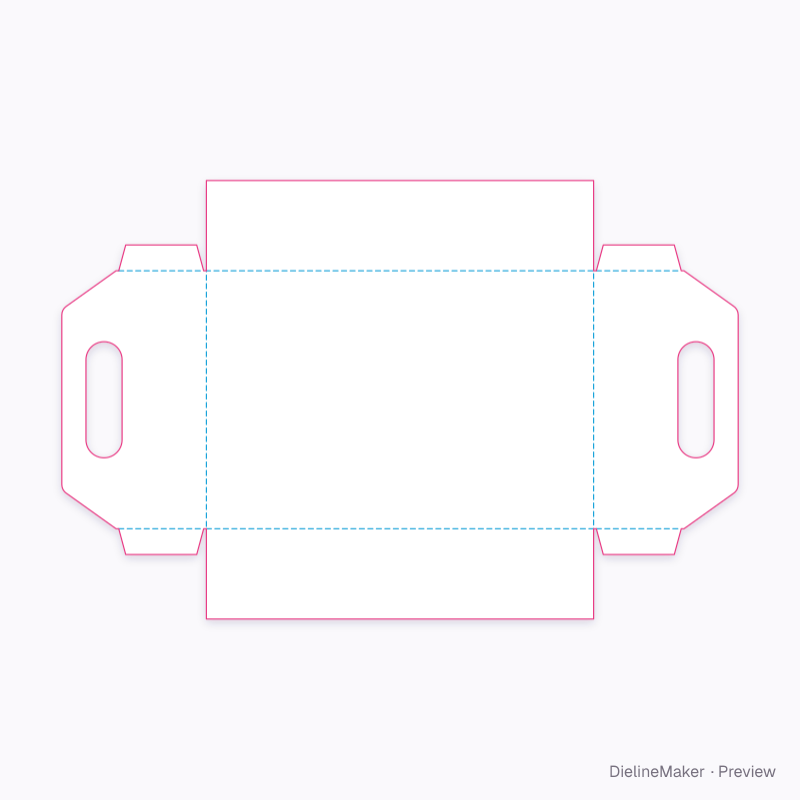

Handled produce tray dieline

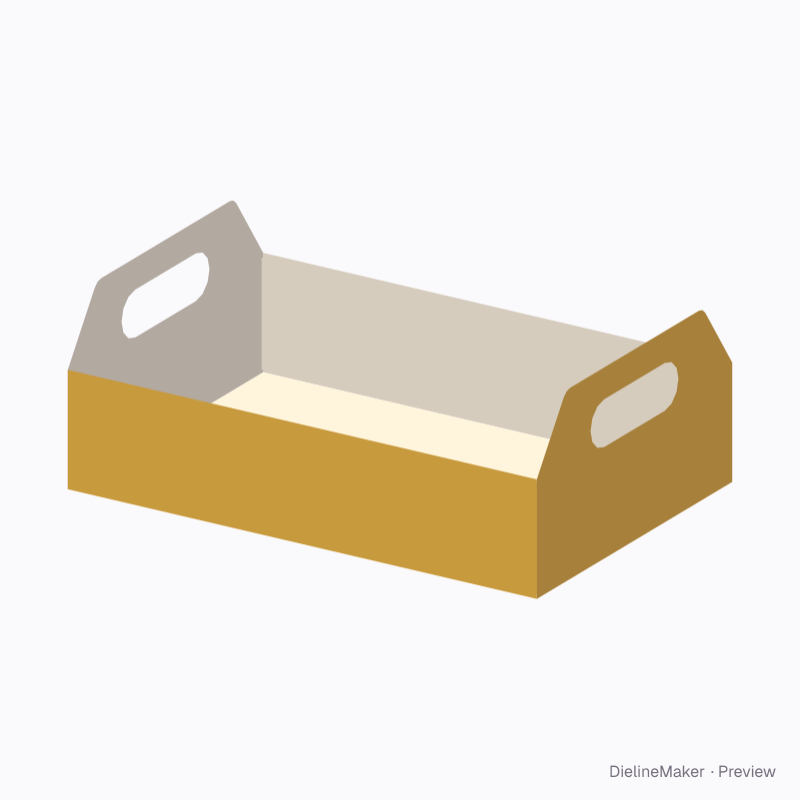

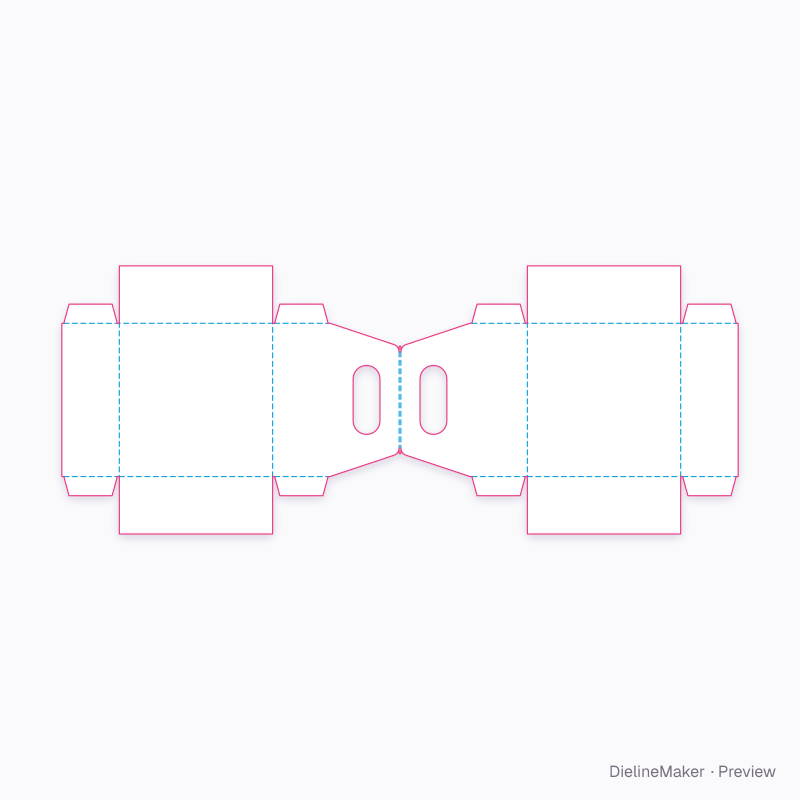

An open glued tray whose end walls rise into die-cut carry handles, or two trays joined by a doubled central handle. A ready-sized preset of the open tray with die-cut handle ends — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 70 mm
Outside303.2 × 203.2 × 73.2 mm
Flat blank524 × 340 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RAISED-HANDLE-TRAY-01
- Inside size
- Length 300 · Width 200 · Wall height 70 mm
- Size range
- Length 60–600 · Width 50–400 · Wall height 20–250 mm
- Manufacturing
- 301.6 × 201.6 × 71.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.149 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteKraft 350SBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RAISED-HANDLE-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 300 × 200 | L × W |
| Front wall | 300 × 70 | L × H |
| Back wall | 300 × 70 | L × H |
| Handle end wall ×2 | 112 × 200 | – × W |
| Glue flap ×4 | 65.8 × 20 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction2 options
- Handle rise above rimmm
The open tray with die-cut handle ends family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this handled produce tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
