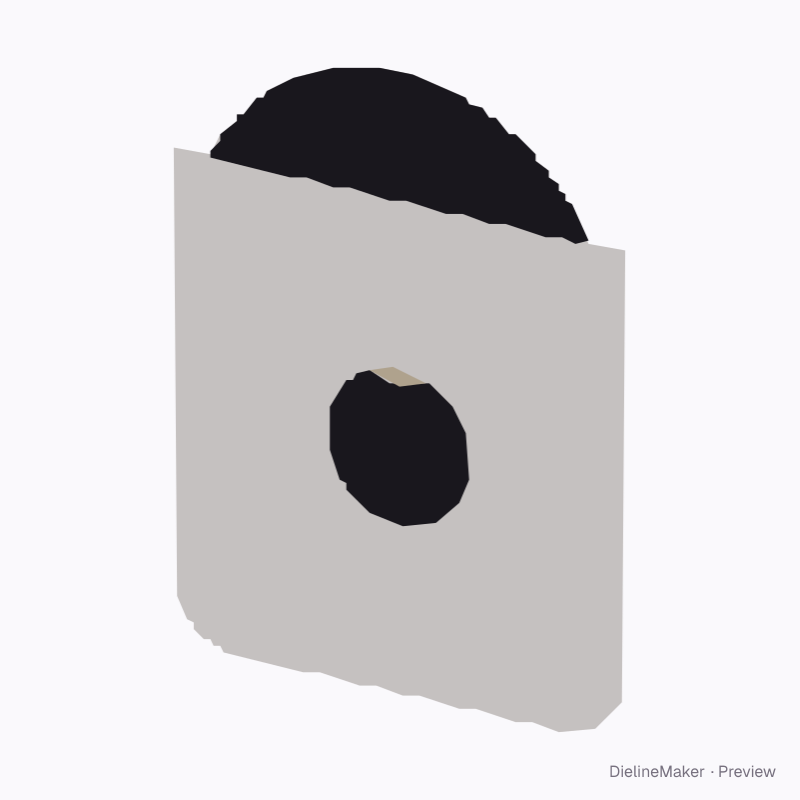

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RECSLEEVE-01Apparel & merchandise
12 in round-bottom inner sleeve decoration template
A printed paper inner sleeve (square, round-bottom or poly-lined with clipped corners, with or without a centre hole) with the record half out, or a clear outer sleeve with a top or adhesive flap round a printed jacket or bare record. A ready-sized preset of the record inner sleeve and clear outer sleeve — adjust the object dimensions and decoration area to preview your artwork at size.
Object size302 × 8 × 90 mm
Artwork area318 × 318 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- DM-RECSLEEVE-01
- Object size
- Record diameter 302 · Paper sleeve allowance 8 · Record pulled out 90 mm
- Size range
- Record diameter 175–302 · Paper sleeve allowance 4–20 · Record pulled out 0–200 mm
- Parts
- 2 parts — Inner sleeve front, Inner sleeve back
- Artwork area
- 0.201 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Sleeve2 options
- Inner sleeve shape3 options
- Centre holeon / off
The record inner sleeve and clear outer sleeve family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 12 in round-bottom inner sleeve yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
