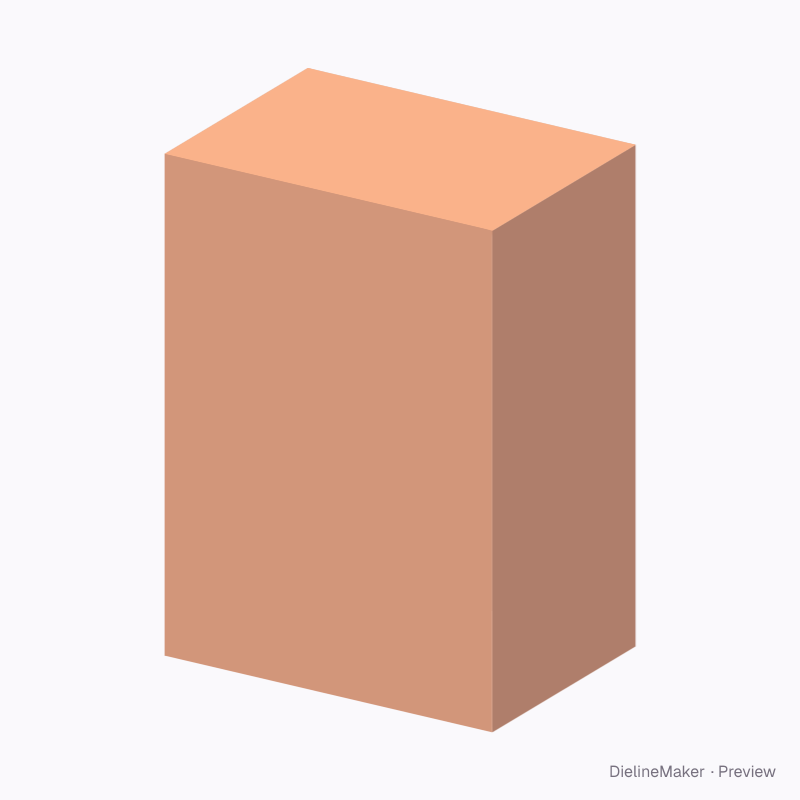

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-REDUCED-FLAP-TUCK-01Tuck end
Tuck carton with four reduced flaps dieline
A tuck-top carton whose bottom closes with four short flaps that leave a centre gap sealed with tape. A ready-sized preset of the tuck carton with four reduced bottom flaps — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 70 × 140 mm
Outside101 × 71 × 141 mm
Flat blank352 × 260 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-REDUCED-FLAP-TUCK-01
- Inside size
- Length 100 · Width 70 · Height 140 mm
- Size range
- Length 40–400 · Width 30–300 · Height 40–400 mm
- Manufacturing
- 100.5 × 70.5 × 140.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.070 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute KSBS 18 pt
- Good for

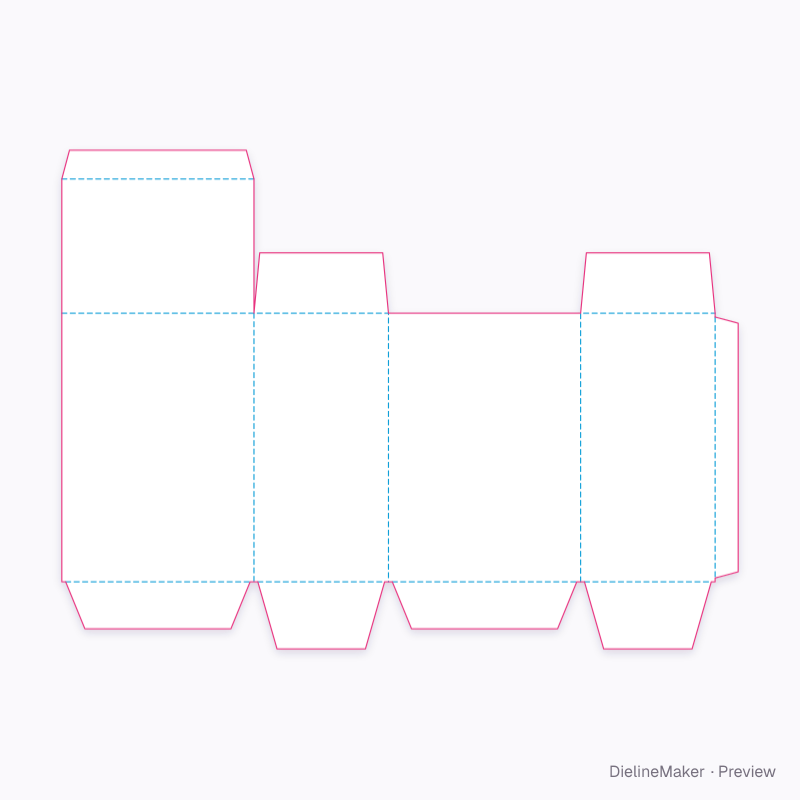

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-REDUCED-FLAP-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Back | 100 × 140 | L × H |
| Left side | 70 × 140 | W × H |
| Top lid | 100 × 70 | L × W |
| Reduced bottom flap ×2 | 96 × 24.5 | – |
| Front | 100 × 140 | L × H |
| Dust flap ×2 | 70 × 31.5 | W × – |
| Reduced bottom flap ×2 | 66 × 35 | – |
| Tuck | 100 × 15 | L × – |
| Right side | 70 × 140 | W × H |
| Glue flap | 12 × 136 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Flap reach%
- Top tuck depthmm
