The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RIDGE-STRIP-CARRIER-01Carriers
Carry carton with fastened ridge strip dieline
A carton with a pitched roof closing into a narrow back-to-back ridge strip with fastener or handle holes. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 100 × 140 mm
Outside181 × 101 × 141 mm
Flat blank572 × 337.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RIDGE-STRIP-CARRIER-01
- Inside size
- Length 180 · Width 100 · Wall height 140 mm
- Size range
- Length 60–400 · Width 40–300 · Wall height 40–400 mm
- Manufacturing
- 180.5 × 100.5 × 140.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.142 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute KSBS 18 pt
- Good for

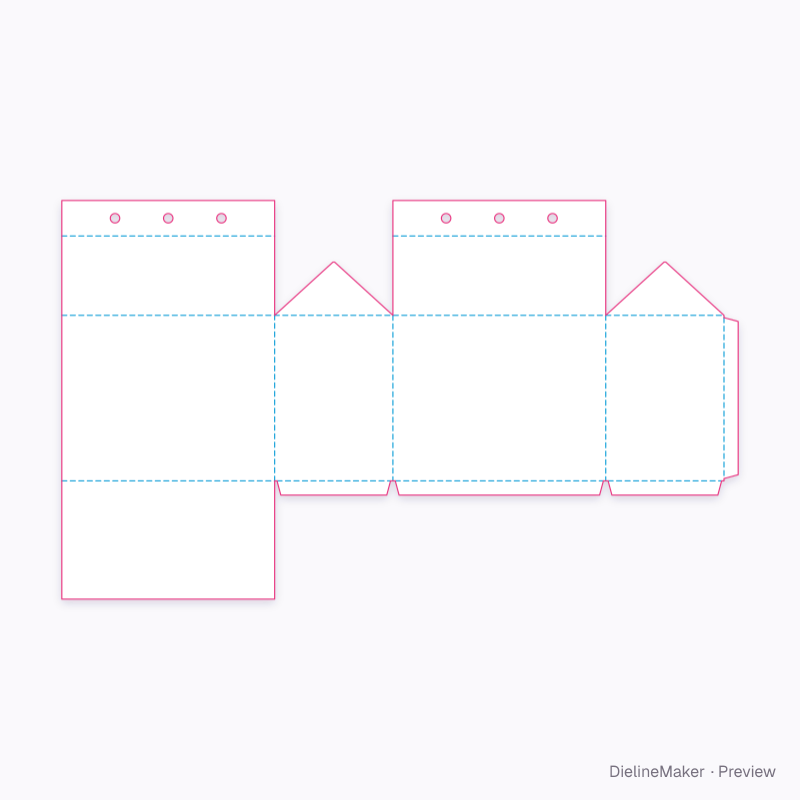

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RIDGE-STRIP-CARRIER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 180 × 140 | L × H |
| Right side | 100 × 140 | W × H |
| Base | 180 × 100 | L × W |
| Roof panel ×2 | 180 × 67.1 | L × – |
| Back | 180 × 140 | L × H |
| Glue flap ×2 | 96 × 12 | – |
| Gable end ×2 | 100 × 45 | W × – |
| Ridge strip ×2 | 180 × 30 | L × – |
| Left side | 100 × 140 | W × H |
| Glue flap | 176 × 12 | – |
| Glue flap | 12 × 136 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Roof risemm
- Ridge strip heightmm
- Ridge holescount
Ready-sized carry carton with fastened ridge strip presets
The same structure with sizes, boards and options set for a use.
